Lexmark T640 - Assembly 38: High-Capacity Feeder

To Next Page

To Previous Page

Parts catalog 7-63

4061-xx0

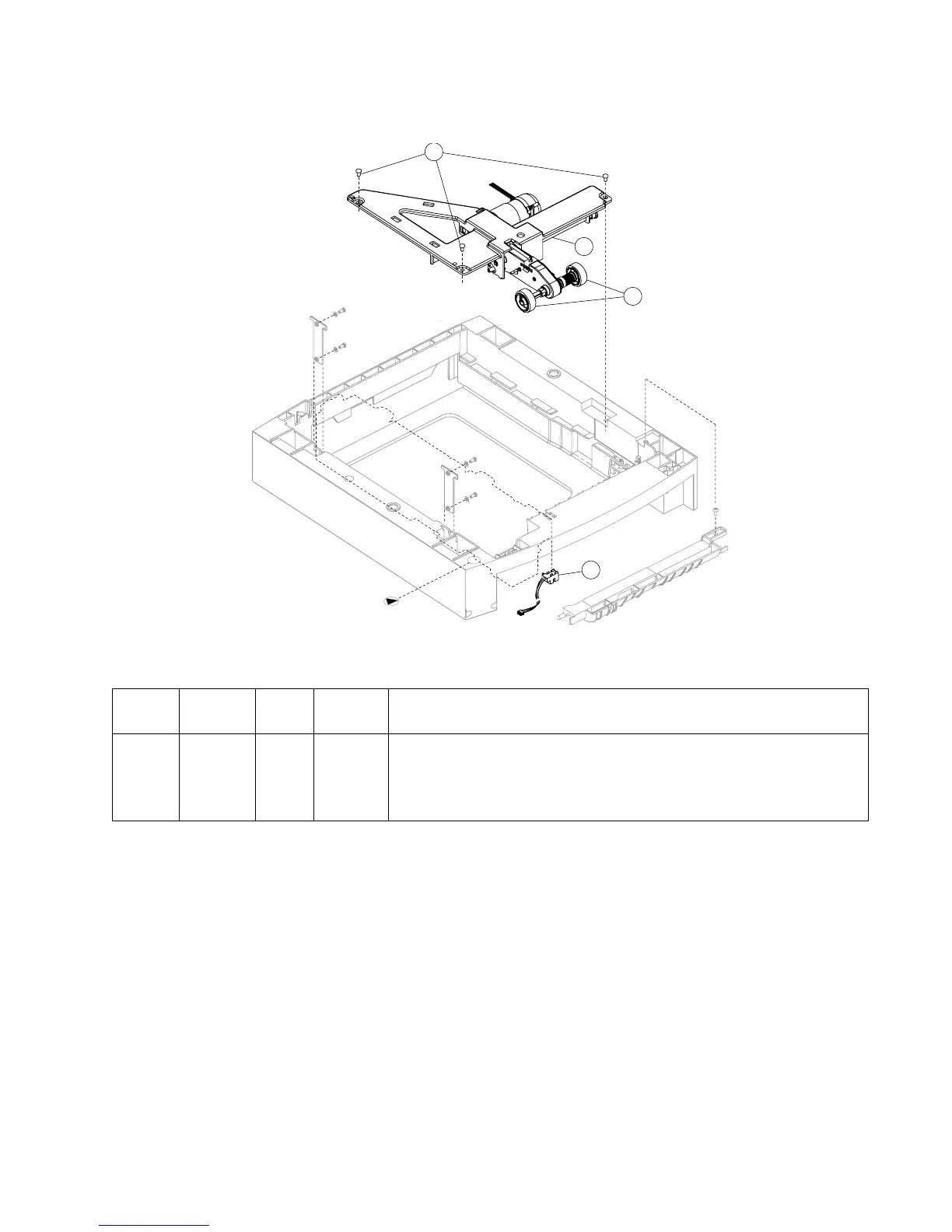

Assembly 38: High-capacity feeder 4

Asm-

Index

Part

number

Units/

option

Units/ kit

or pkg

Description

38—1 3 Parts packet (auto comp assembly mounting screw) (PP 99A0263)

2 40X3255 1 1 Pick arm assembly—2000-sheet

3 40X0070 2 2 Pick roll assembly

4 40X3233 1 1 Option pass thru sensor








