Lexmark T640 - Outer Shield Removal

To Next Page

To Previous Page

Repair information 4-69

4061-xx0

Outer shield removal

1. Remove the left door. See “Left door removal” on page 4-7.

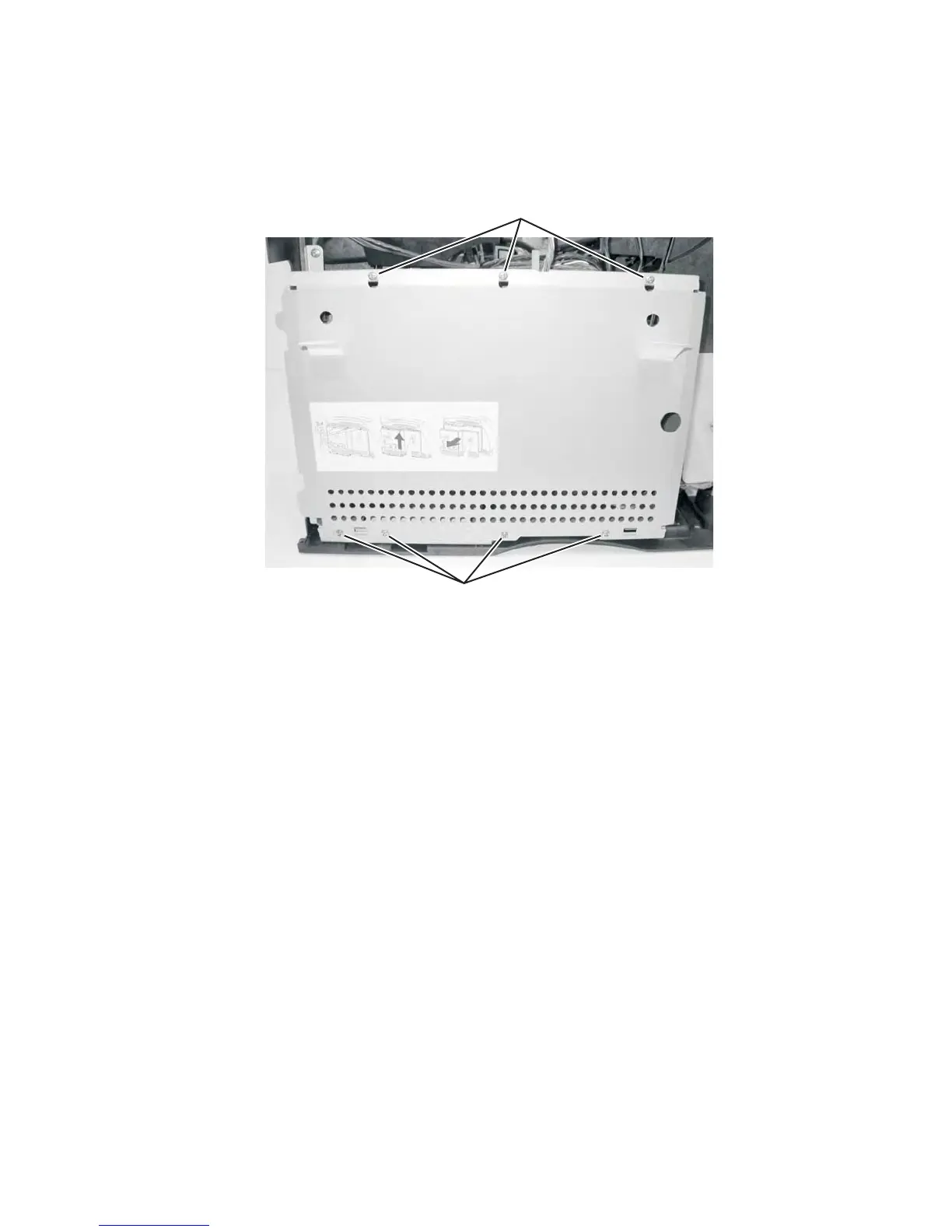

2. Loosen the outer shield mounting screws (A), and remove the shield by sliding up.

A(202)
