Lexmark T640 - Assembly 31: High-Capacity Output Expander

To Next Page

To Previous Page

Parts catalog 7-51

4061-xx0

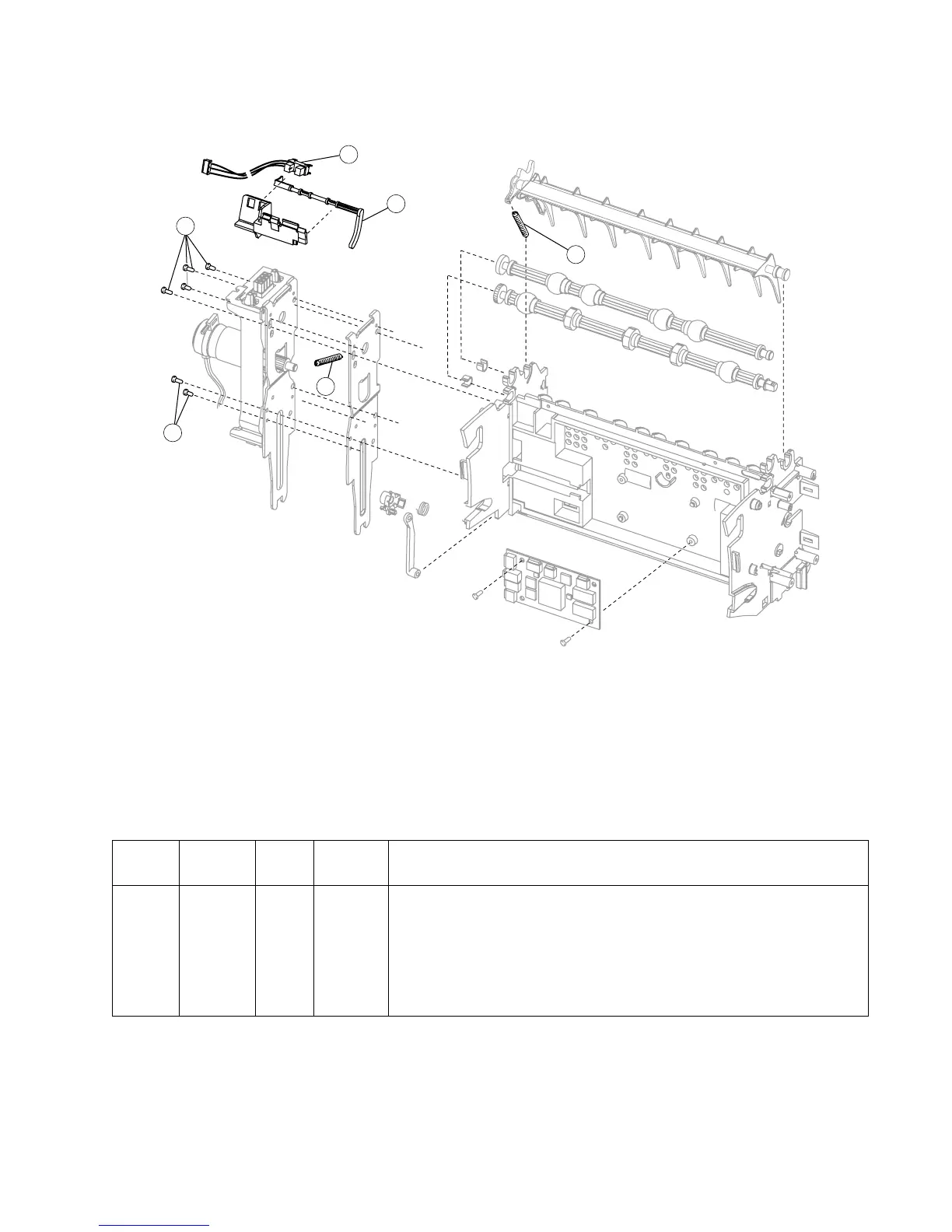

Assembly 31: High-capacity output expander 2

Asm-

Index

Part

number

Units/

option

Units/ kit

or pkg

Description

31—1 99A0104 2 1 Upper diverter spring

2 99A0415 1 1 Swing arm spring

3 31 Parts packet (PP 99A0263)

4 56P4212 1 1 Bin full dual sensor upper stacker assembly flag

5 40X3265 1 1 Bin full dual sensor upper stacker assembly

NS 56P4210 2 1 Output spring












