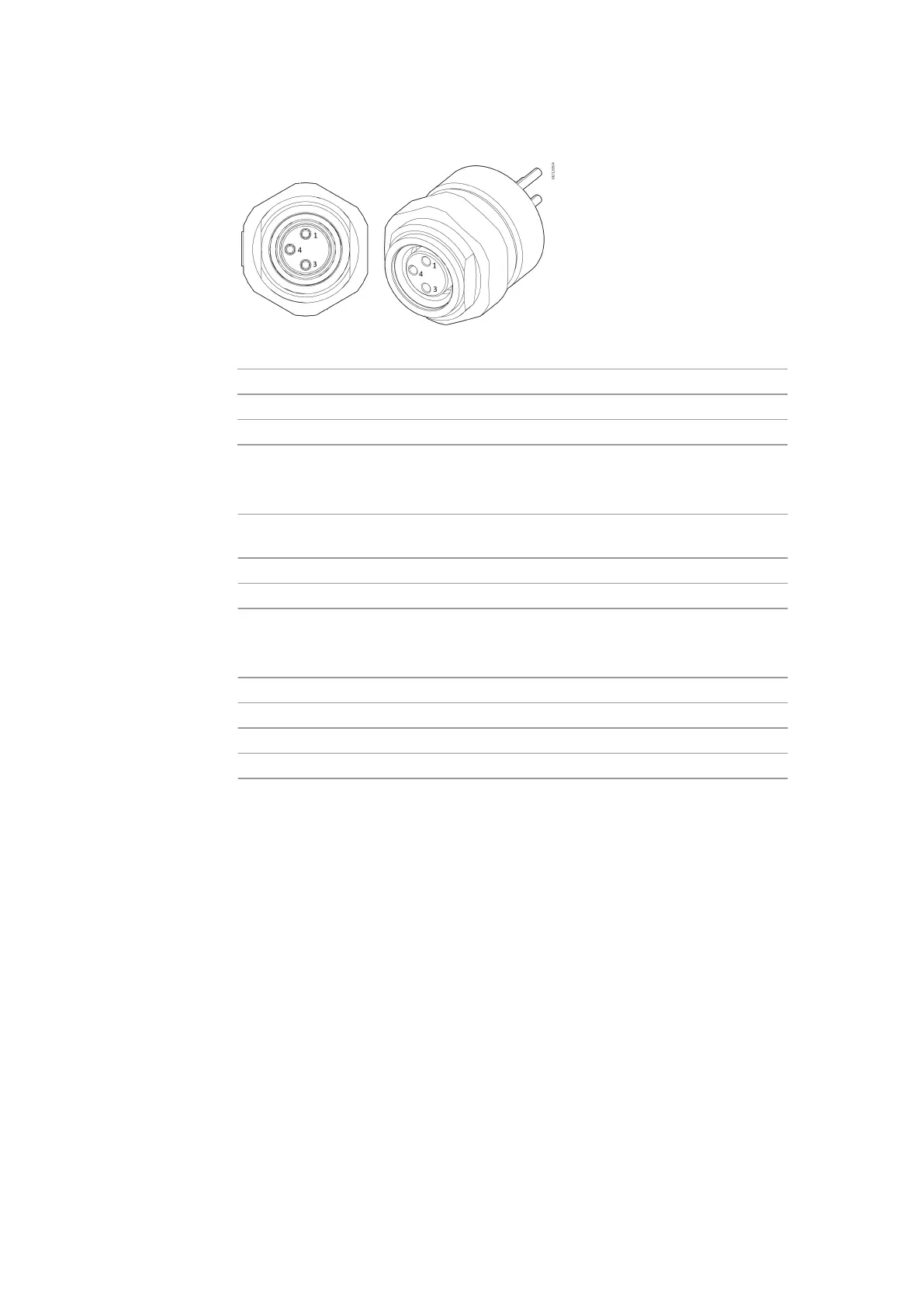

Figure 3. Valve connector
Pin number
Signal
1 + 24 V
3 GND
4 PE
Table 1 Auxiliary load currents
Description Data
Connector plug Plug M8 male Kst 0°Series 768 99-3379-100-03
Binder
Voltage output 24 V d.c. -25%, +10% (18 V d.c. to 26.4 V d.c.)
Output power 1 Channel with 4 Watt
Table 2 Recommended mating plugs
Mating connector plug Phoenix part number
Screw connection, straight SACC-M 8MS-4CON-M-SW
Solder connection, straight SACC-M 8MS-4CON-M
Screw connection, right angle SACC-M 8MR-4CON-M-SW
Solder connection, right angle SACC-M 8MR-4CON-M
2.4 Logic interface
The logic interface is designed to support the two connectors, both are
located on the rear of the pump.
Serial control is connected through a X104 SUB-D 9 pin (female)
connector.
Parallel control is connected through a X1 SUB-D 9 pin (male)
connector.
The signals on the logic interface are:
control inputs: switch type and analogue signals that control the pump.
status outputs: to identify the status of the system tab.
For control modes refer to Table: Control panel interface.
For logic interface data refer to Logic interface data on page 26.
2.5 Gauge connection
A compatible pressure gauge can be connected to the RJ45 (X101) socket
on the rear panel. Refer to Accessories on page 56, for suitable gauges.
300902516_002 - 10/2020 - © Leybold
12
