WARNING: INSTALLATION SAFETY
Risk of electric shock or damage to equipment. The pump must be electrically
installed in accordance with regional and local codes, and must obey the local and
national safety requirements.
WARNING: HAZARDOUS VOLTAGE
Risk of electric shock or damage to equipment. The logic interface is 30 V maximum
rated PELV and must only be connected to PELV interfaces. Failure to use a correctly
rated supply could result in electric shock.
WARNING: ELECTRICAL CONNECTION
Risk of electric shock. Make sure that the pump is switched off and is not connected
to the electrical supply when the mains voltage is selected on the pump.
The pump is a cord‑connected device and must be installed in accordance
with local electrical regulations.
The pump is supplied from a single phase 100 ‑ 127 V a.c./200 ‑ 240 V a.c.
mains supply system. The branch circuit, supplying the pump, must be
protected with a 10 A (200 ‑ 240 V) or 15 A (100 ‑ 127 V) branch circuit
protection.
4.4.1 Pump voltage setting
To set the correct voltage:
1.
Isolate the pump from the electrical supply.
2.
Remove the screws on the voltage selection plate.
3.
Rotate the voltage selection plate to point towards the required voltage
setting (refer to Figure: Voltage selection plate).
The selector cover plate will make sure that the rocker switch below
the plate is set to the correct voltage.
4.
Make sure that the screws are tightened and the voltage selection
plate is fully secured before you reconnect the electrical supply and
operate the pump.

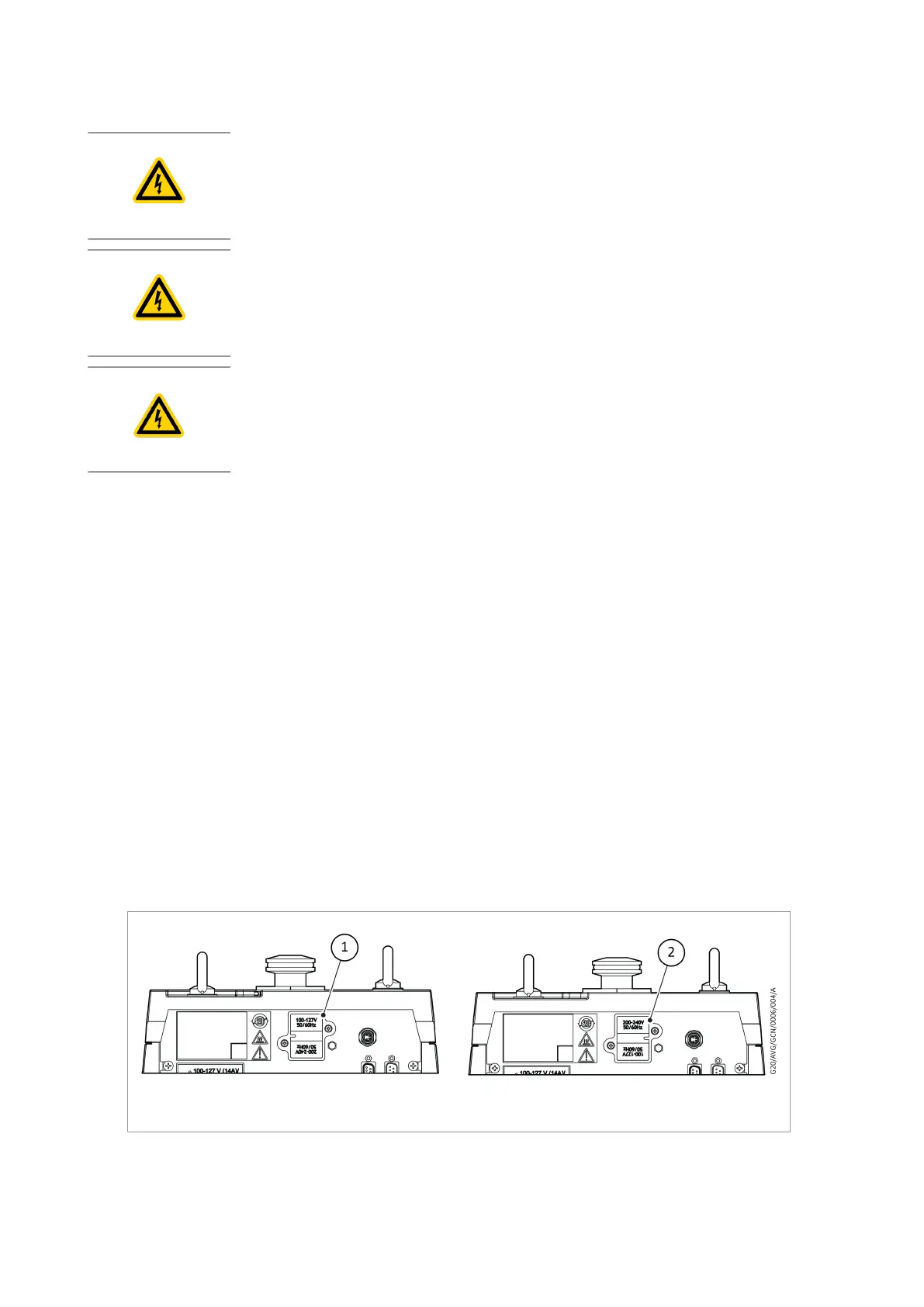

Figure 7. Voltage selection plate
1.
Low voltage
2.
High voltage
1.
Low voltage
2.
High voltage
300902516_002 - 10/2020 - © Leybold
22
Installation
