LEYBOLD MAG W 2010 C User Manual

Installation
17
GA 05.139/1.02 - 06/99
21.5
l
l > 15 mm in aluminium
l > 10 mm in steel
Outer ring (stainless steel)
Sealing (FPM)
Centering ring (stainless steel)
Splinter guard
Max. torque = 60,000 Nm

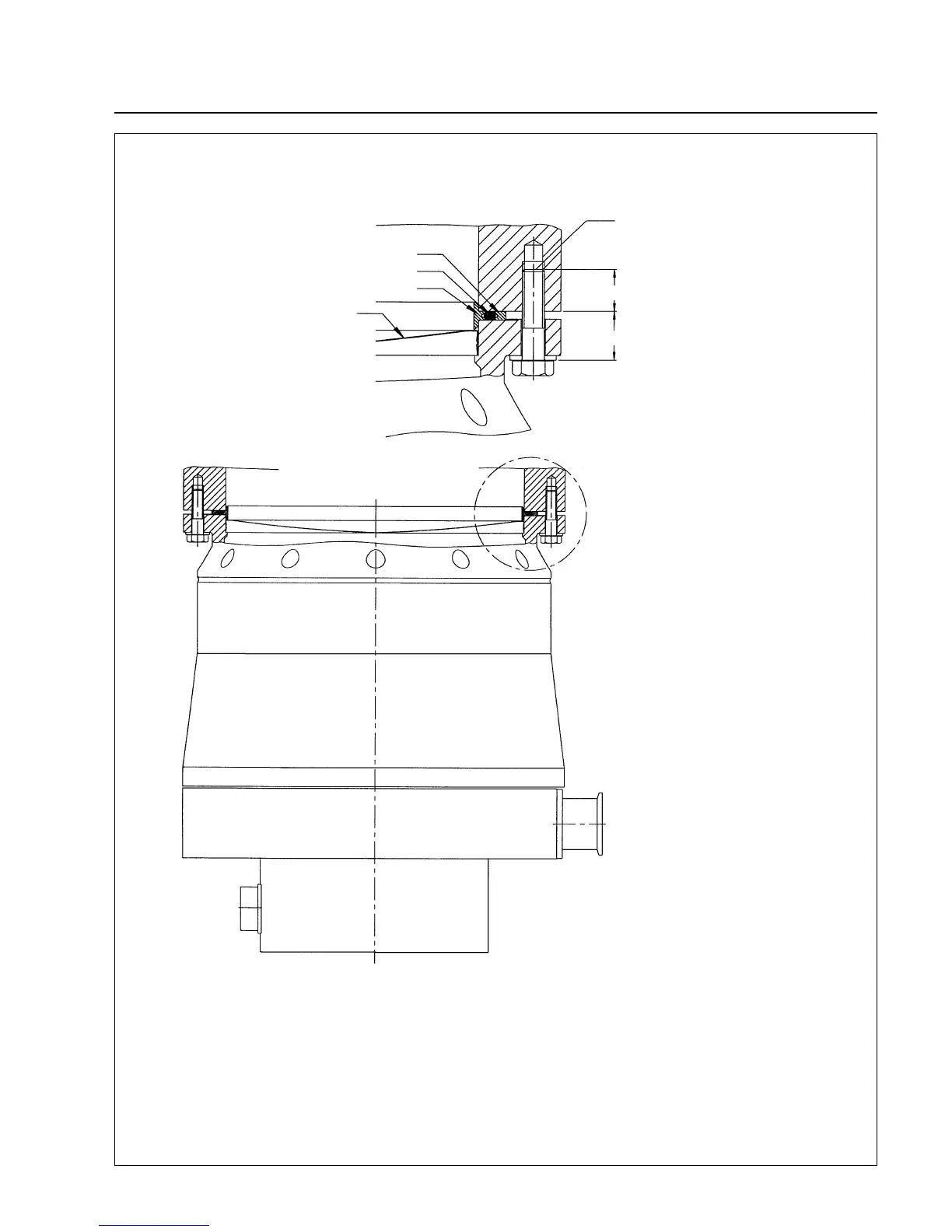

Fig. 15 Fixing the intake flange
Bolts: M10 x 35 / M10 x 40
Quality 12.9 according to DIN 898:
0,2% yield strength > 1080 N/mm
2
Bolt torque: 40 Nm
