AV connection (Only 47WV30BR
and 47WV30MS)

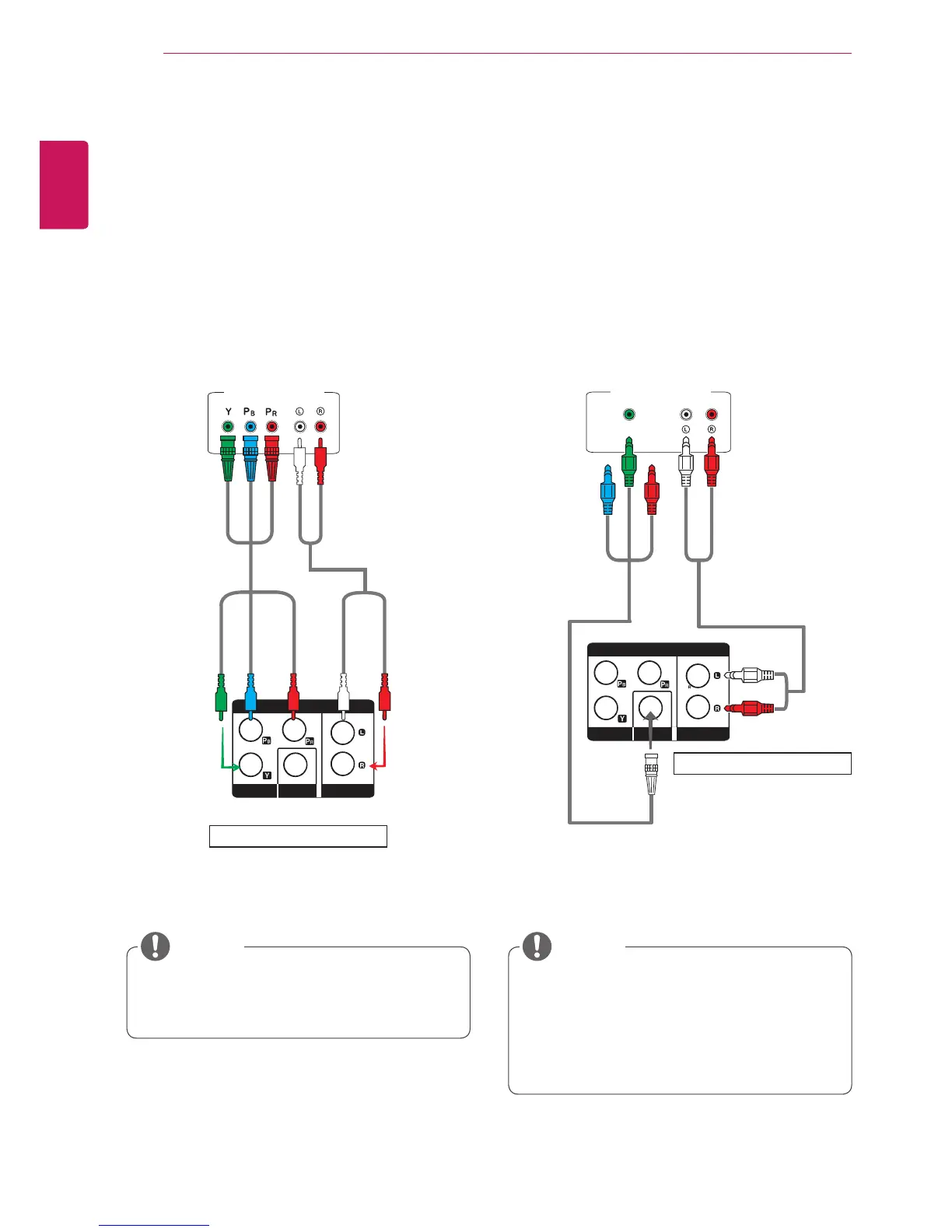

Transmits the analog video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the RCA
cable as shown on the following illustration. To
transmit an audio signal, connect an optional audio
cable.
(not included)
(not included)
Component connection
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with a
component cable as shown on the following
illustration. To transmit an audio signal, connect an
optional audio cable.
Back of the Monitor Set
NOTENOTE
y
For AV (CVBS) connection, the red and blue
cables in a shared interface are not in use.
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
y AV(CVBS) can be supported only in 47WV-
30BR and 47WV30MS models.
Peripheral
(not included) (not included)
Back of the Monitor Set
