LG 47WV30MS - RS-232 Control Interface; RS-232 Cable Connection

64
ENG
ENGLISH
RS-232 CONTROL
RS-232 CONTROL
y
You can control several products at a time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 255 without being duplicated.
Connecting the cable

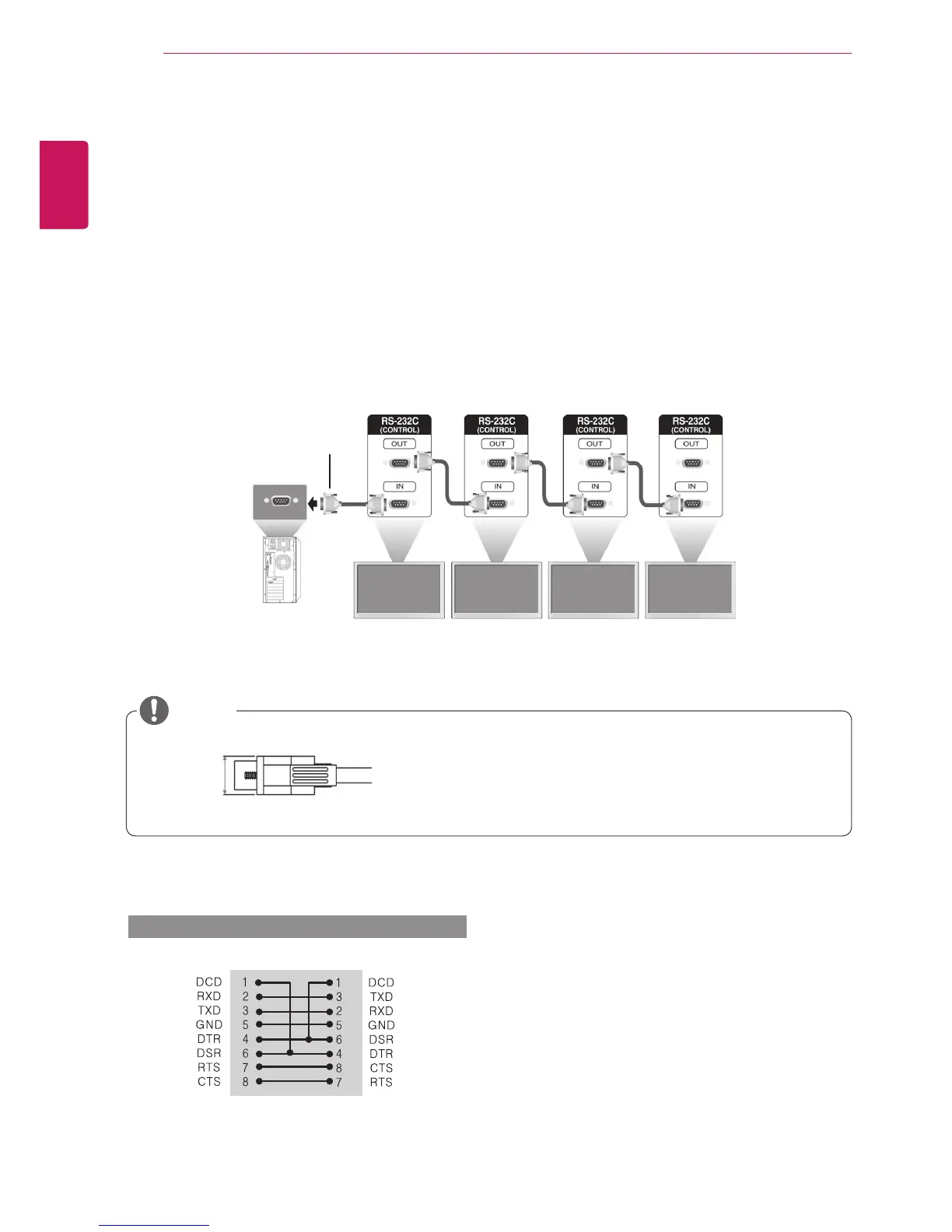

Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC. This monitor features
two RS-232 ports. One input and one output. This allows you to daisy-chain monitors without having
to use a splitter box.
Set 1 Set 2 Set 3 Set 4
PC
RS-232C Cable
NOTE
15 mm or
less
Communication Parameter
y
Baud Rate : 9600 buad Rate (UART)
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
y
Use RS-232C cables as shown in the picture.
y
If a cable bigger than the ones shown in the picture is used
in the connector, the connection may not be flawless due to
interference between the cables.
y
Pin 1 of RS-232C Out should be connected with Pin 4 of RS-
232C In.
PC Set
D-Sub 9
(Female)
D-Sub 9
(Female)
