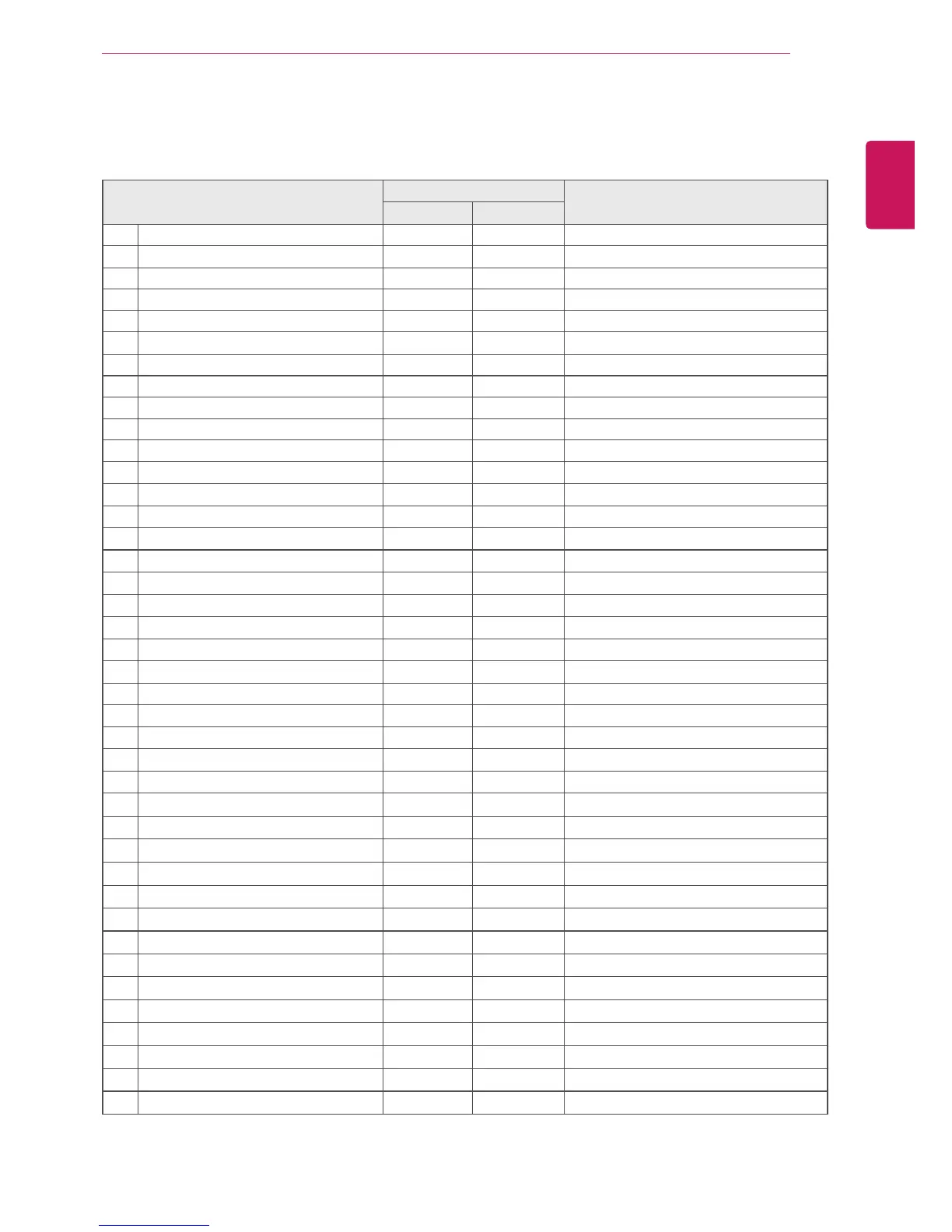

RS-232 CONTROL
Command Reference List
COMMAND
DATA
(Hexadecimal)
1 2
01 Power k a 00H to 01H
02 Input Select x b Refer to ‘02. Input Select’
03 Aspect Ratio k c Refer to ‘03. Aspect Ratio’
04 Energy Saving j q Refer to ‘04. Energy Saving’
05 Picture mode d x 00H to 04H
06 Contrast k g 00H to 64H
07 Brightness k h 00H to 64H
08 Sharpness k k 00H to 64H
09 Color k i 00H to 64H
10 Tint k j 00H to 64H
11 Color Temperature x u 00H to 64H
12 H Position f q 00H to 64H
13 V Position f r 23H to 41H
14 H Size f s 00H to 64H
15 Auto configuration j u 01H
16 Balance k t 00H to 64H
17 Sound mode d y 01H to 05H
18 Treble k r 00H to 64H
19 Bass k s 00H to 64H
20 Speaker d v 00H to 01H
21 Volume Mute k e 00H to 01H
22 Volume Control k f 00H to 64H
23 Time 1(Years/ Months/ Days) f g Refer to ’23. Time 1’
24 Time 2(Hours/ Minutes/Seconds) f x Refer to ’24. Time 2’
25 Off Timer(Repeat mode/ Time) f d Refer to ‘25. Off Timer’
26 On Timer(Repeat Mode/ Time) f e Refer to ’26. On Timer’
27 On Timer Input f u Refer to ’27. On Timer Input’
28 Sleep Time f f 00H to 08H
29 Power On Delay f h 00H to 64H
30 Automatic Standby m n 00H to 01H
31 Auto Off f g 00H to 01H
32 Language f i 00H to 0AH
33 ISM mode j p Refer to ‘33. ISM Method’
34 DPM Select f j 00H to 01H
35 Fail Over Select m i 00H to 02H
36 Fail Over Input Select m j Refer to ’36. Fail Over Input Select’
37 Reset f k 00H to 03H
38 Tile Mode d d Refer to ’38. Tile Mode’
39 Tile Mode Check d z FFH
40 Tile ID d i Refer to ’40. Tile ID’
