Installation
3

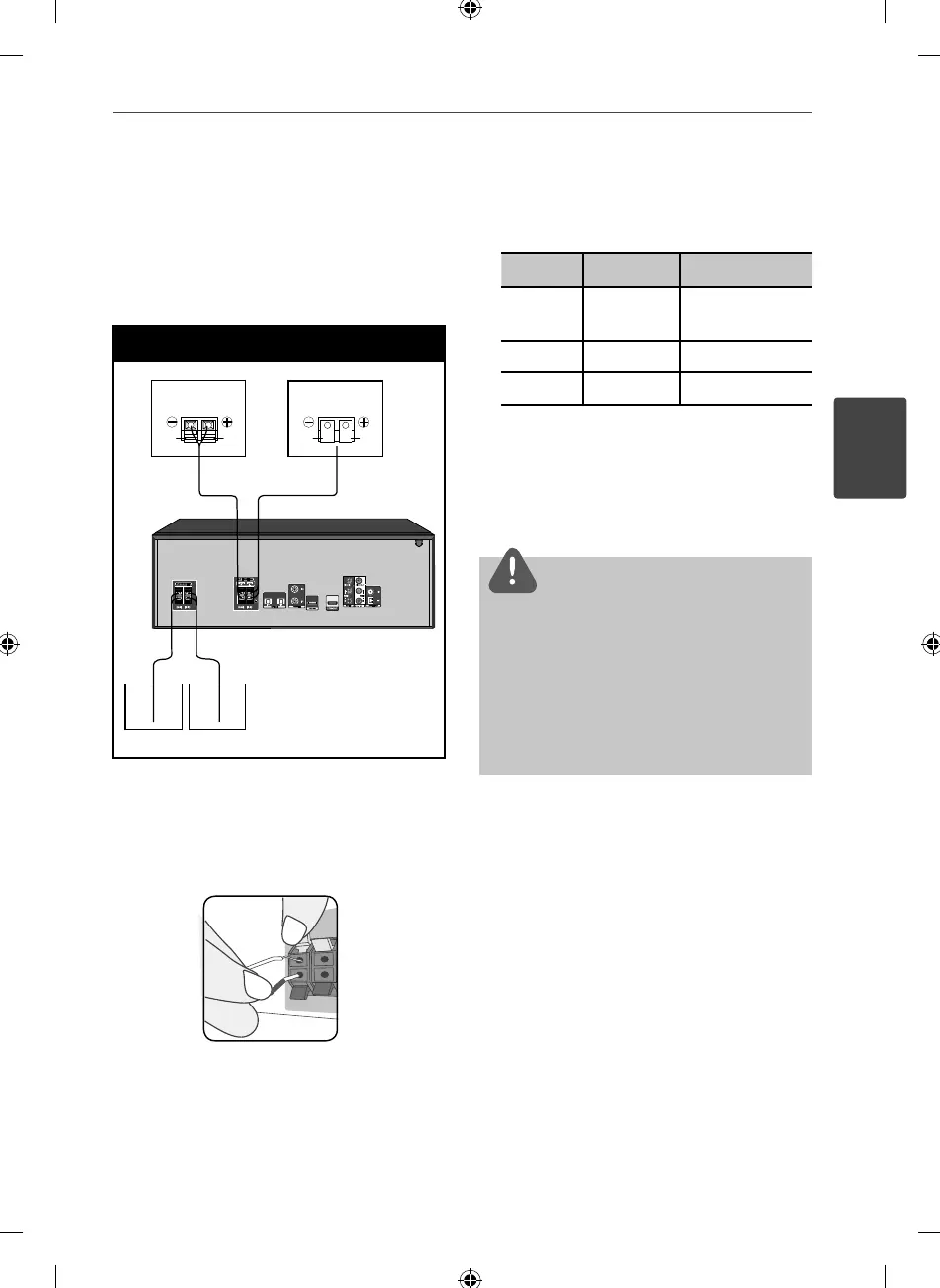

Connecting speakers
Before connecting the cables, be sure to
disconnect the AC power cord.
Speaker system connection
Front speaker (R)
Black
Red
SubwooferSubwoofer
Front speaker (L)
Black
Red
1. Connect the wires to the unit. To connect
the cable to the unit, press each plastic
 nger pad to open the connection terminal.
Insert the wire and release the  nger pad.
Connect the black end of each wire to the
terminals marked -(minus) and the other
end to the terminals marked + (plus).
2. Connect the wires to the speakers. Connect
the other end of each wire to the correct
speaker according to the color coding:
Color Speaker Position
Orange Subwoofer Any front
position
Red Front Front right
White Front Front left
To connect the cable to the speakers,
press each plastic  nger pad to open the
connection terminals on the base of each
speaker. Insert the wire and release the
 nger pad.
CAUTION
• Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hall for plentiful bass sound on
speaker cabinet (enclosure).
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far away
from either TV screen or PC monitor.
