18 Installation
Installation
3
Connecting
components with
Digital Audio jacks
It is not necessary to connect all the cables.
Connect the cables according to the jacks
of your components. Before connecting the
cables, be sure to disconnect the AC power
cord.

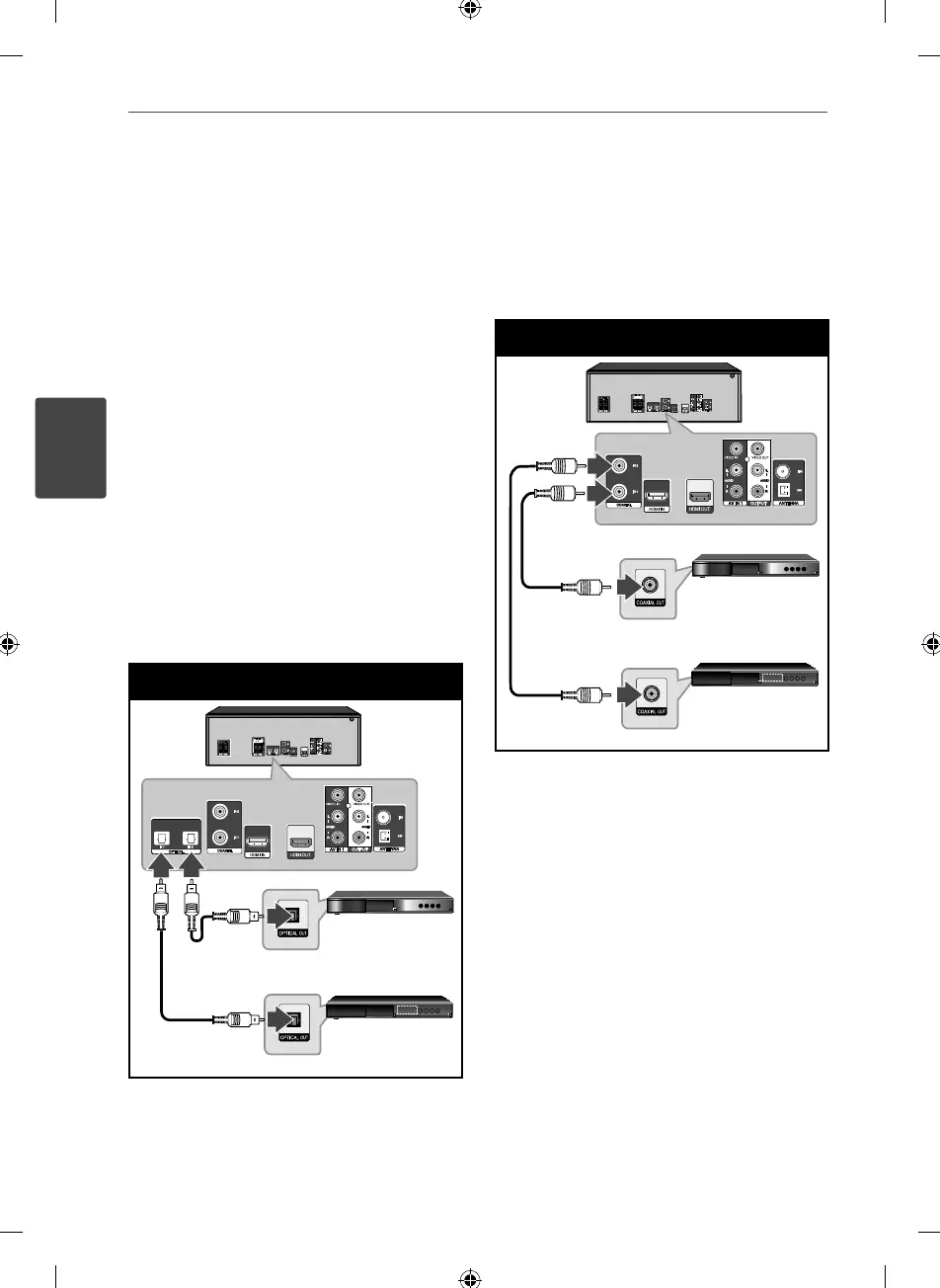

Optical digital audio
connection
1. Connect the OPTICAL IN 1/2 jack on the
unit to your components with OPTICAL
OUT jack using an optical digital audio
cable.
OPTICAL IN connection
Unit
Blu-ray disc player,
DVD player, etc
2. Set the input source to OPTICAL 1/ OPTICAL
2 (Page 24).
Coaxial digital audio
connection
1. Connect the COAXIAL IN 1/2 jack on the
unit to your components with COAXIAL
OUT jack using a coaxial digital audio cable.
COAXIAL IN connection
Unit
Blu-ray disc player,
DVD player, etc
2. Set the input source to COAXIAL 1/
COAXIAL 2 (Page 24).
