Connecting to Your TV
You can watch the selected input image when
you connect the VIDEO OUT or HDMI OUT jack
to a TV.
It is not necessary to connect all the cables.
Connect the cables according to the jacks of
your components.
• Video/Audio (Left/Right) connection
(page 14)
• HDMI connection (page 15)
NOTE
• Before connecting the cables, be sure to
disconnect the AC power cord.
• Turn o the power to all components before
making any connections.
• When connecting an audio/video cable, be
sure to match the colour-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
Video/Audio (Left/Right)
connection
Connect the VIDEO OUT jack on the unit to
the video in jack on the TV using a video cable.
Connect the left and right AUDIO OUT jacks of
the unit to the audio left and right IN jacks on
the TV using the audio cables.

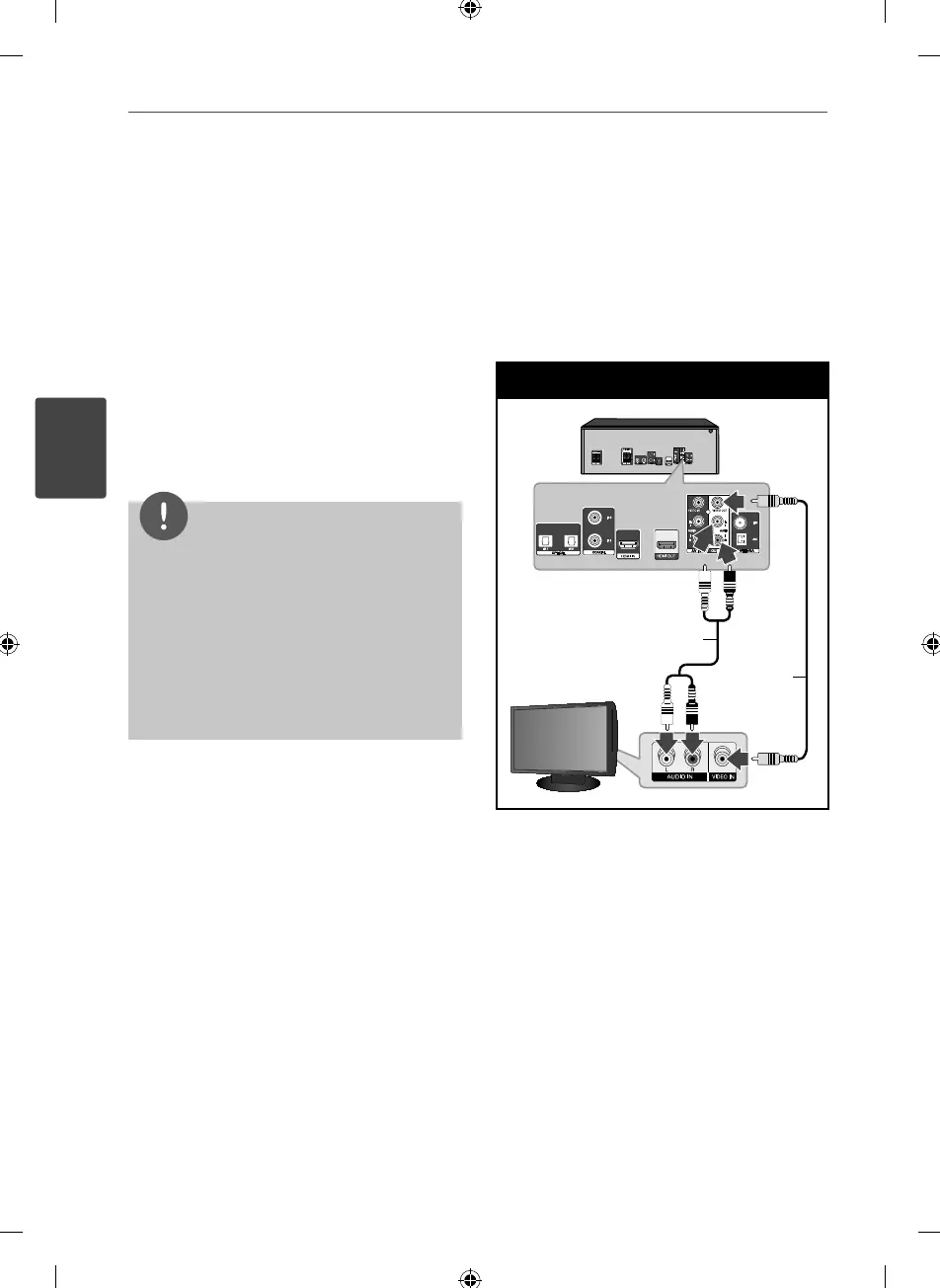

Video/Audio Connection
Video
cable
Audio cable
Unit
TV
Set the TV’s source to VIDEO (refer to TV’s
Owner’s manual).
