PROGRAMMING MODE - TEST MODE
PROGRAMMING MODE -
TEST MODE

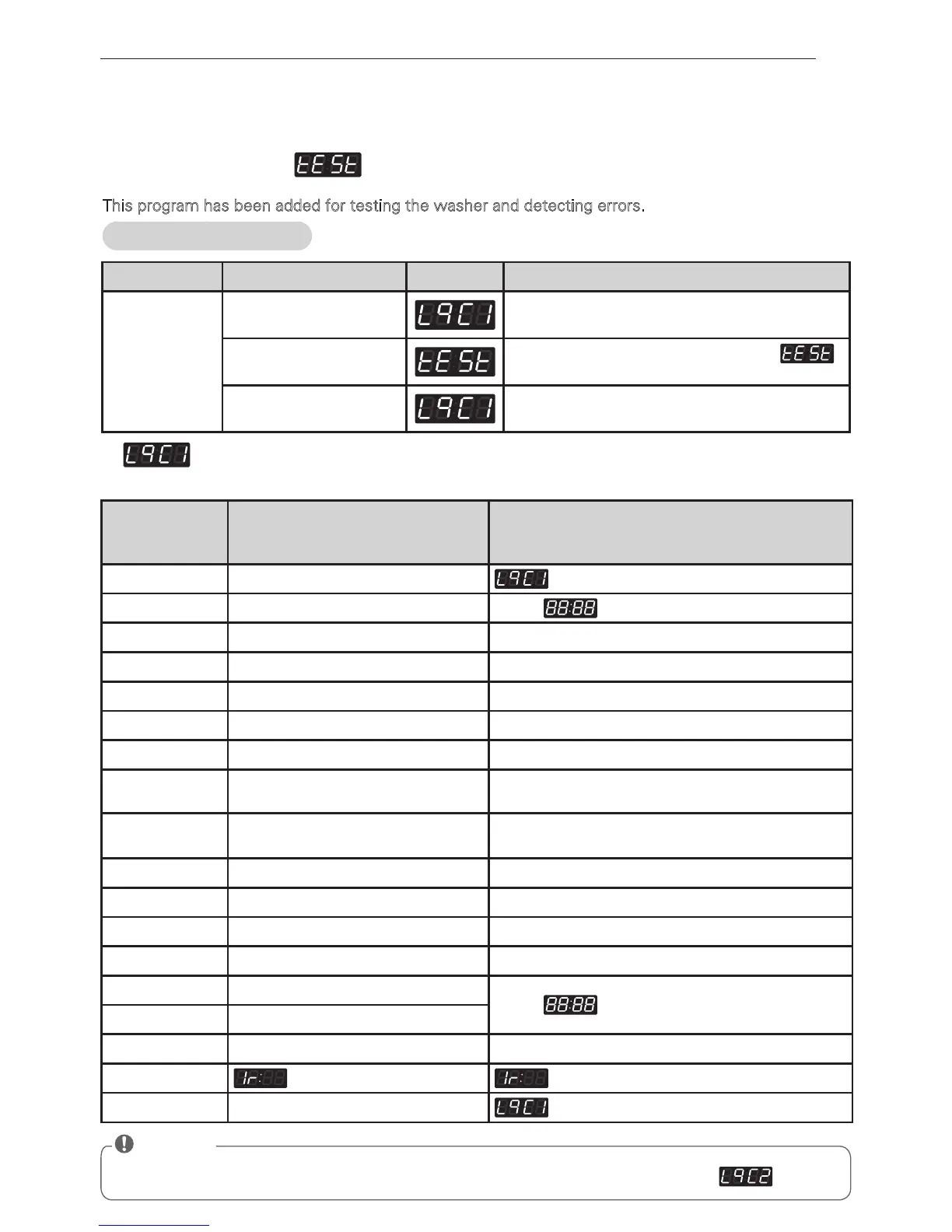

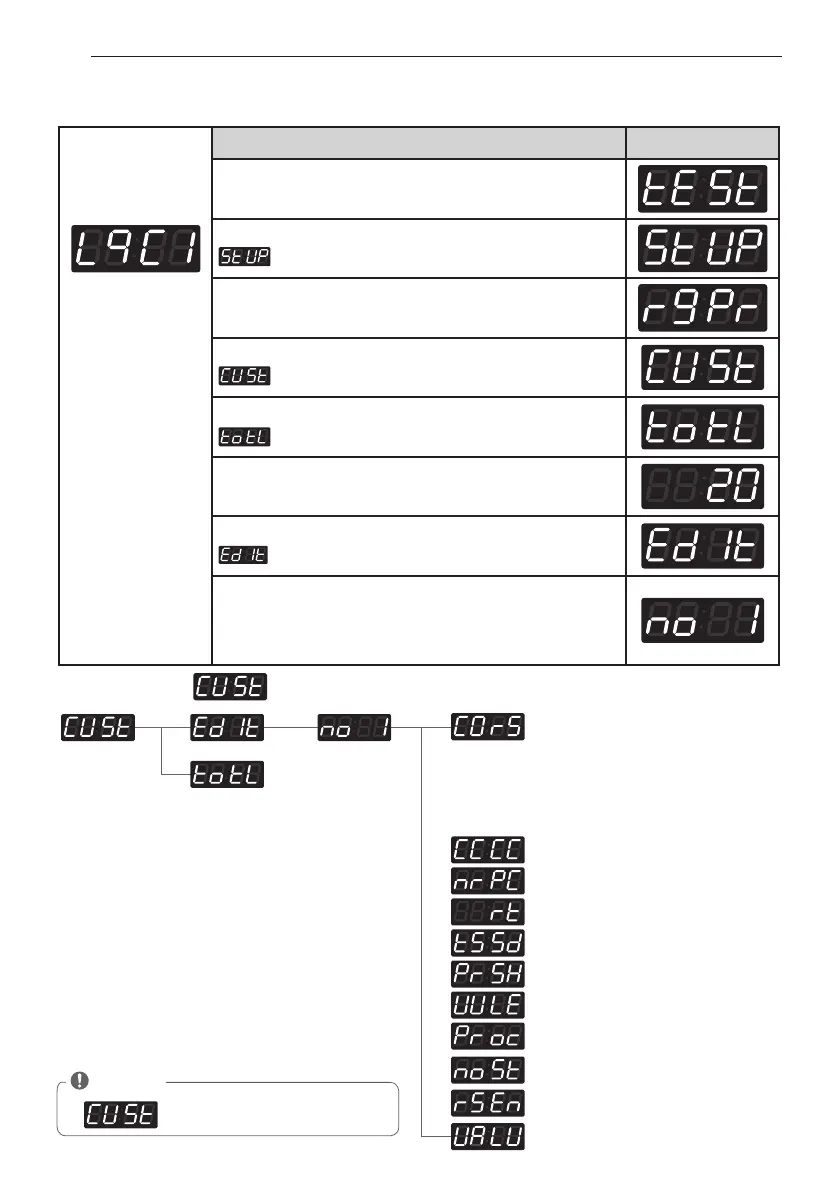

Diagnostic tests: (display)
This program has been added for testing the washer and detecting errors.
1.
According to pressing Start button, test move to the next step.
Entering the test mode
Data Name Button Display Description
Entering
the test mode
1. Entering
programming mode
Insert service card (card type), turn on/off
toggle switch (Coin type).
2. 90°C (194°F)
Press the 90°C (194°F) button. Then
appears in the display.
3. Start Enter the diagnostic test mode.
NOTE
• Make sure the drum is empty when a diagnostic test is performed. Do not use
.
Number of times
the Start button
is pressed
Check Point Display
None
1 time
Turns on all lamps and locks the door
Displays 1U:XX, 1g:XX and 10:XX alternately (Version)
2 times
Tumble Clockwise. rpm (40~50)
3 times
Low Speed Spin rpm (600)
4 times
High Speed Spin rpm (1150)
5 times
Inlet valve for main water turns on. Water level frequency (255~)
6 times
Inlet valve for hot wash turns on. Water level frequency (255~)
7 times
Inlet valve for atomizing turns on (single model).
Inlet valve for softener turns on (stack model).
Water level frequency (255~)
8 times
Inlet valve for bleach turns on (single model).
Inlet valve for atomizing/bleach turns on (stack model).
Water level frequency (255~)
9 times
Tumble counter clockwise. rpm (40~50)
10 times
Turn on the heater Display water temperature
11 times
Turn on Circulation Pump. Water level frequency (255~)
12 times
Drain Pump turns on. Water level frequency (255~)
13 times
Turns on all lamps.
Displays 1U:XX, 1g:XX and 10:XX alternately (version)
14 times
Button Checks.
15 times
High Speed Spin rpm (1150)
16 times
PDA Signal Check this function is not applied in this machine
17 times
To Next Page
