CONNECTING EXTERNAL DEVICES
Connecting External
Devices

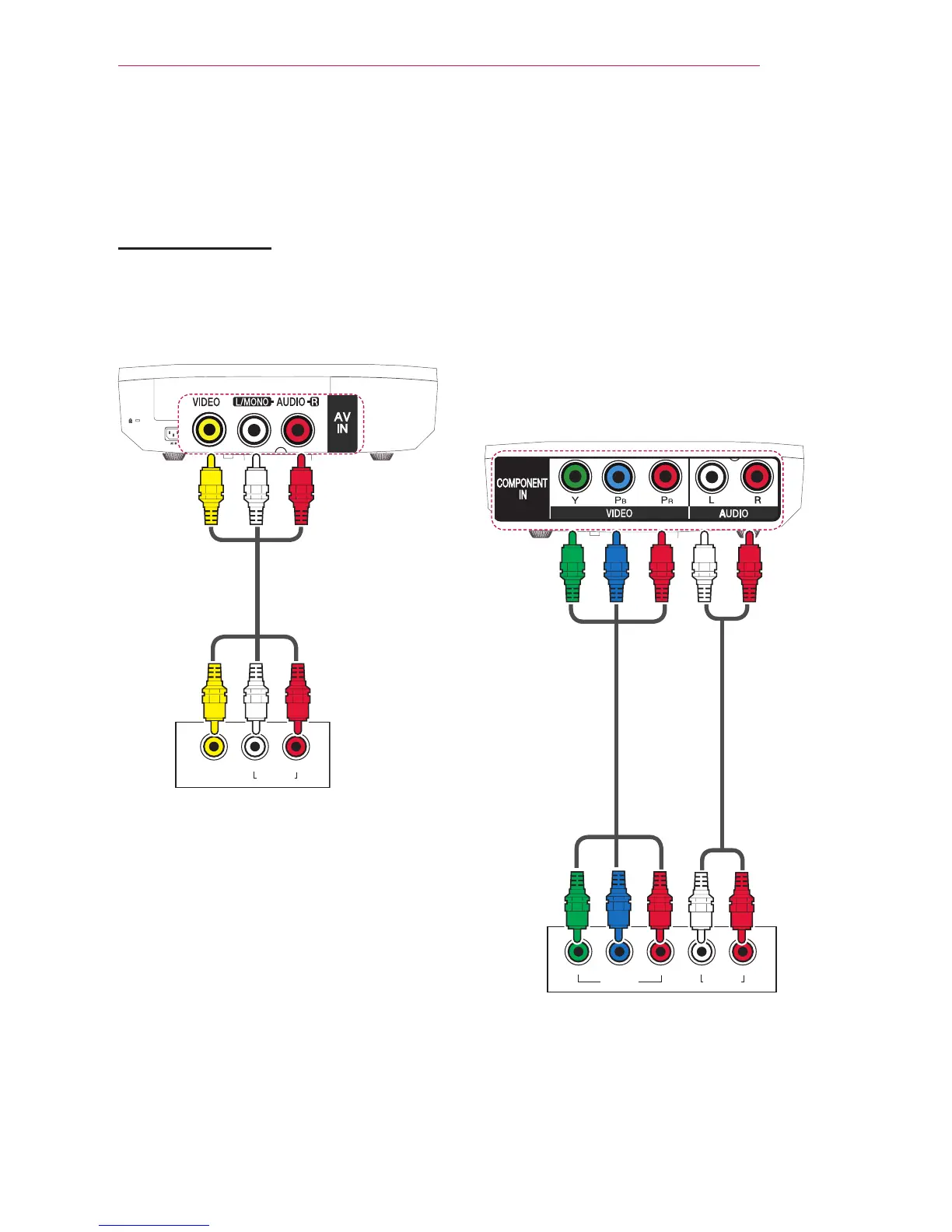

AV Connection
Connect the output ports of an external
device and the AV input ports of the
Laser TV using AV connection cables.
Press the INPUT button to select AV.
$9287
/HIW 5LJKW
$8',2287
RS-232C IN
Red
Red
White
White
Yellow
Yellow
Component
Connection
You can enjoy more vivid images when
you connect an external device with a
component port to the component input
port of the Laser TV. Press the INPUT
button on the remote control to select
Component.
The output jack Y, PB or PR of the DVD
player may be marked as Y, B-Y, R-Y/Y,
Cb, Cr/Y, Pb or Pr depending on the
model.
$9287
/HIW< 3
% 35 5LJKW
$8',2287
RS-232C IN
Red
Red
Red
Red
White
White
Blue
Blue
Green
Green
