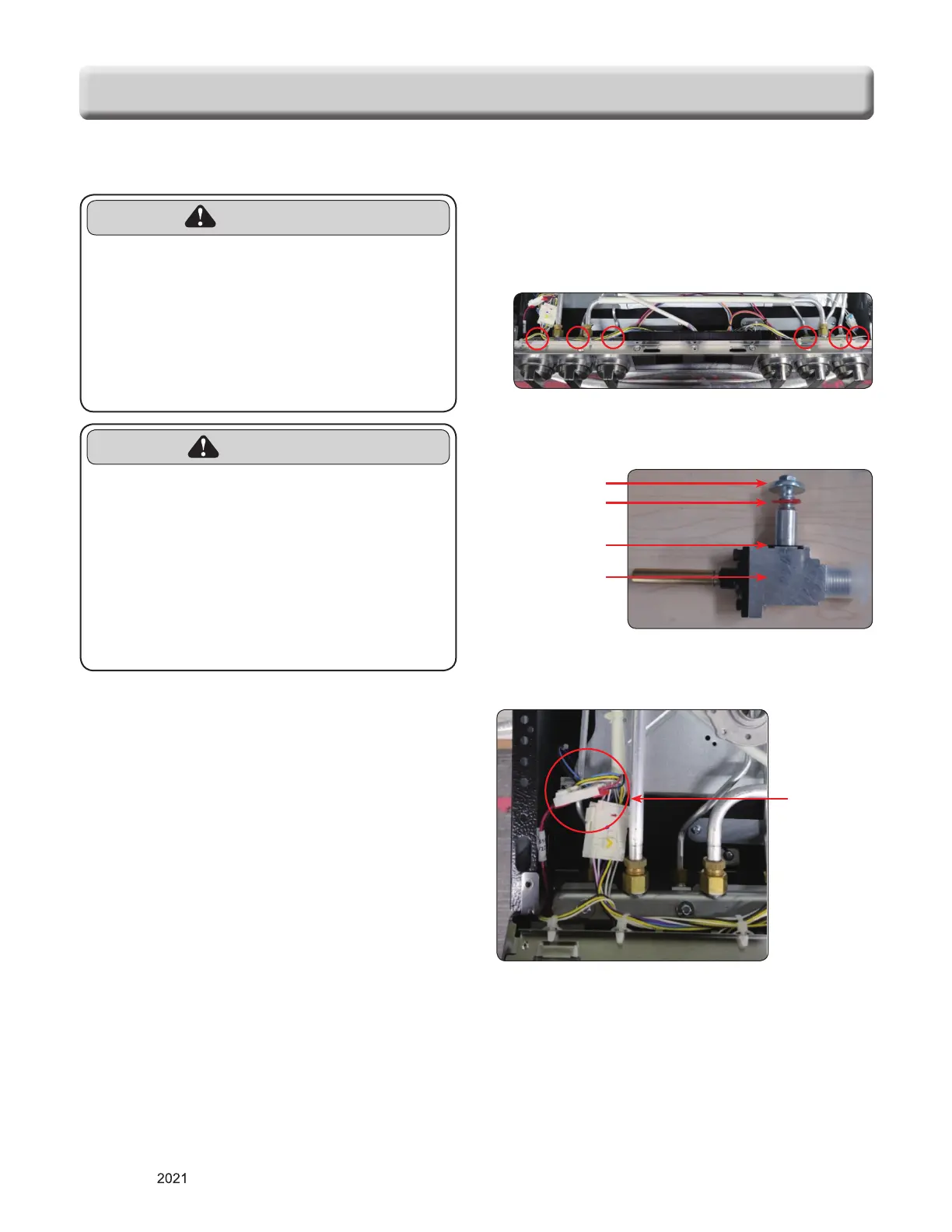

COMPONENT ACCESS
3. To remove the valve:
a) Remove the manifold panel (See the step 3 on
page 3-5).
b) Remove the 6 nuts from the valve.
c) Remove the ignition switch.
d) Remove the valve screw and remove the valve.
Valve Screw
Screw Seal
Valve Seal
Single
Burner valve
4. To remove the ignition switch:
Ignition
switch
REMOVING THE COOKTOP PARTS
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• The 2 lock tabs on each igniter
switch are fragile. Tab breakage can
occur if excessive release pressure
is applied.
• Check that the gas seal gasket on
the screw and the gas valve remain
in place before installing the new
gas valve.
NOTE
: When servicing the burner housing or the
valve, it is necessary to service also the pipe which
is designated.
1. Turn off the electrical supply and gas supply going
to the range.
2. Remove the cooktop plate (See “REMOVING
THE COOKTOP PLATE” on page 3-4).
