LG LSGL6337F - Safety Valve; Ignition Switch

4-4
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

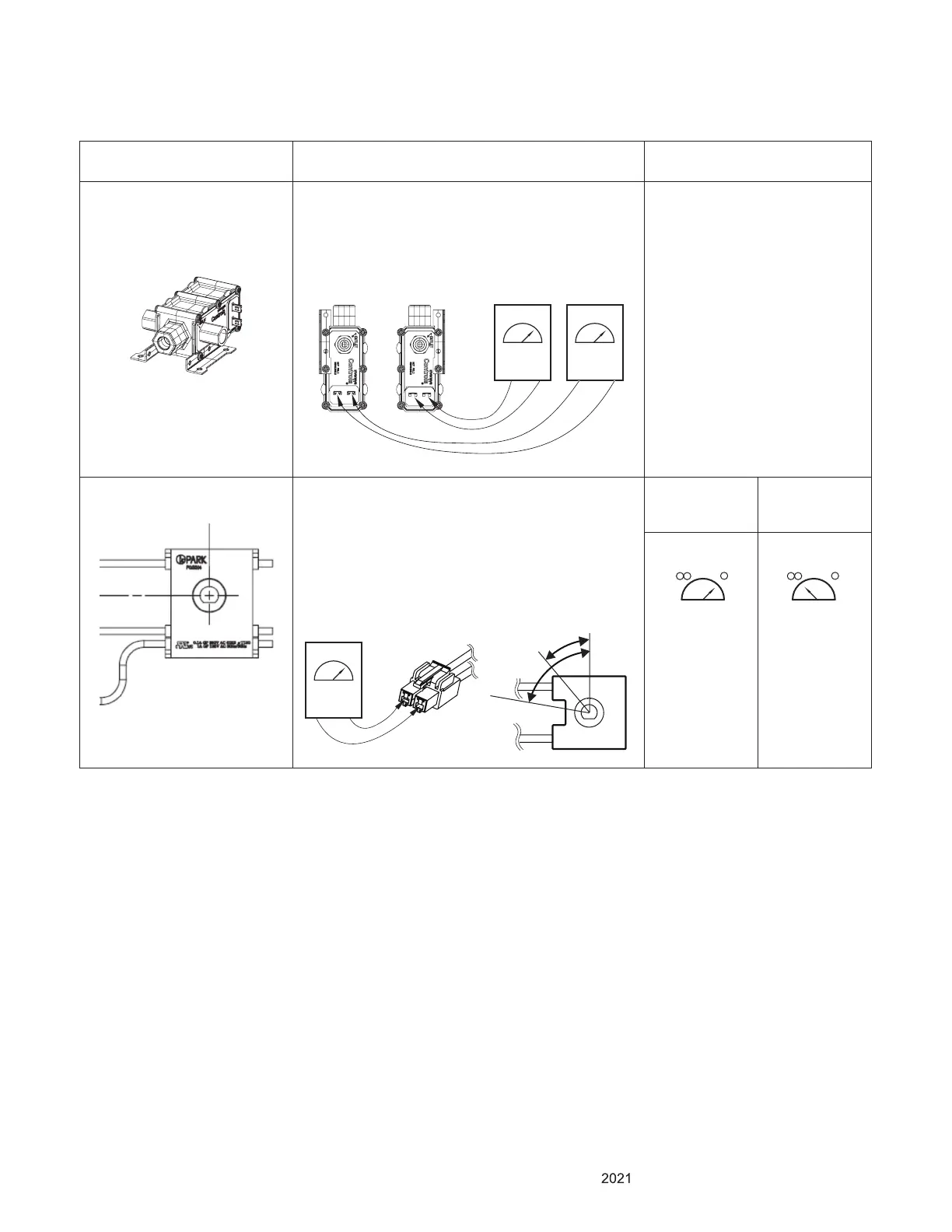

Components Test procedures Results
Safety valve
1. Refer to page 3-22 for servicing procedure.
2. Measure the resistance after cooling down.
(Multiple meter scale : R x 1)
Upside Downside
Normal: Approximately
1 ~ 3 Ω
Ignition Switch 1. Refer to page 3-7 ~ 3-8 for servicing
procedure.
2. Measure the resistance by rotating the cam of
each switch slowly.
(Multiple meter scale : R x 1)
40˚
80˚
approximately
40° ~ 80°
other
NO
COM
Continuity
NO
COM
Infinite
