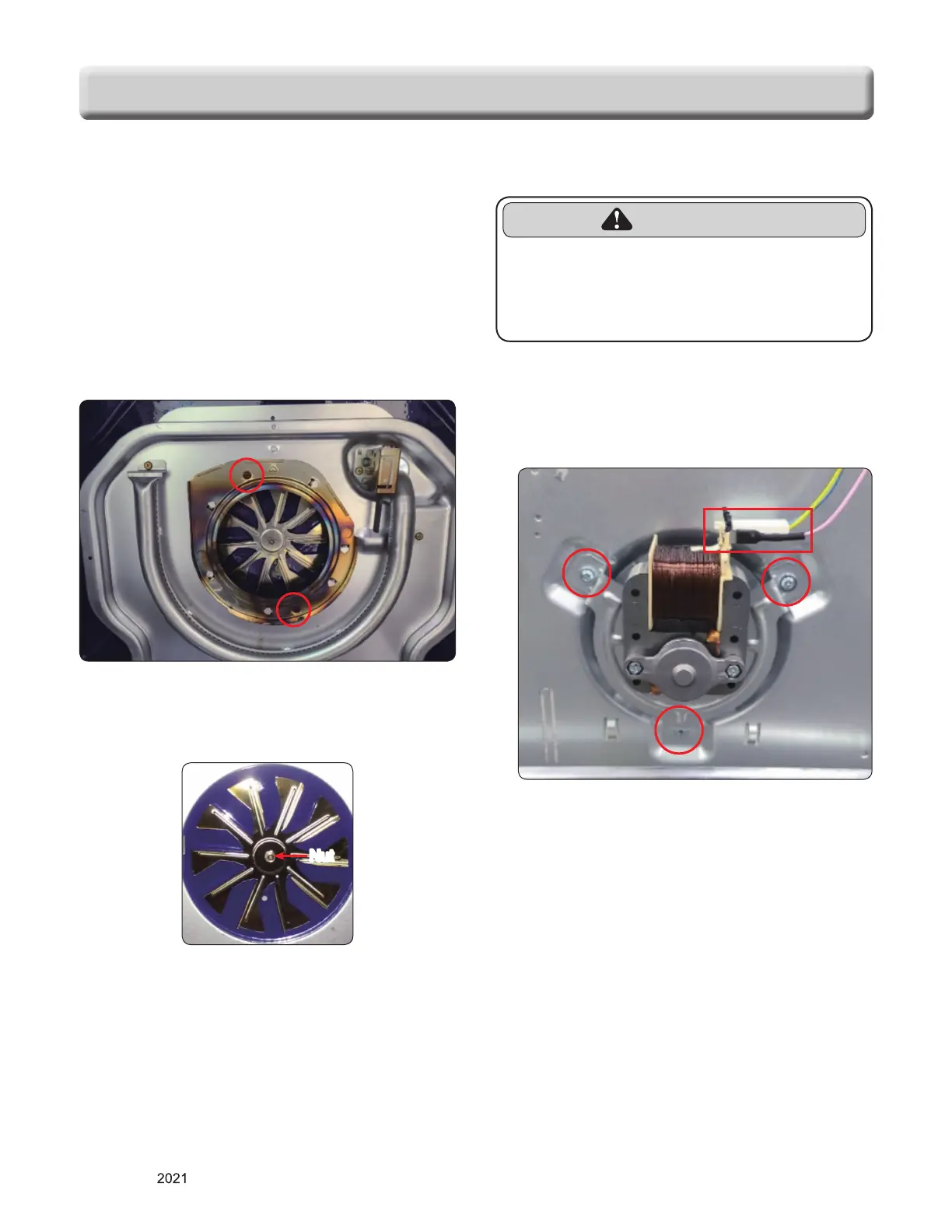

COMPONENT ACCESS
1. Turn off the electrical supply and gas supply going
to the range and remove the oven racks.
2. Remove the Fan cover (see “Removing the
Convection burner assembly” Page 3-10).
3. Remove the burner assembly cover (see
“Removing the Convection burner assembly”
Page 3-10).
4. Remove 2 screws from the burner assembly and
then Remove the stabilizer.
< Stabilizer>
5. To remove the fan blade, remove the nut by
screwing clockwise.
Nut
CAUTION
• Be careful not to bend the fan blade
- Failure to do so can result in vibration, noise,
and poor performance of convection when
operating.
6. To remove the Fan Motor
a) Remove the back cover (see “Removing the
Back Cover” Page 3-2).
b) Remove connector and 3 screws.
REMOVING THE CONVECTION FAN BLADE AND FAN MOTOR
To Next Page
