8. Installation
20
Indoor Unit
CAUTION

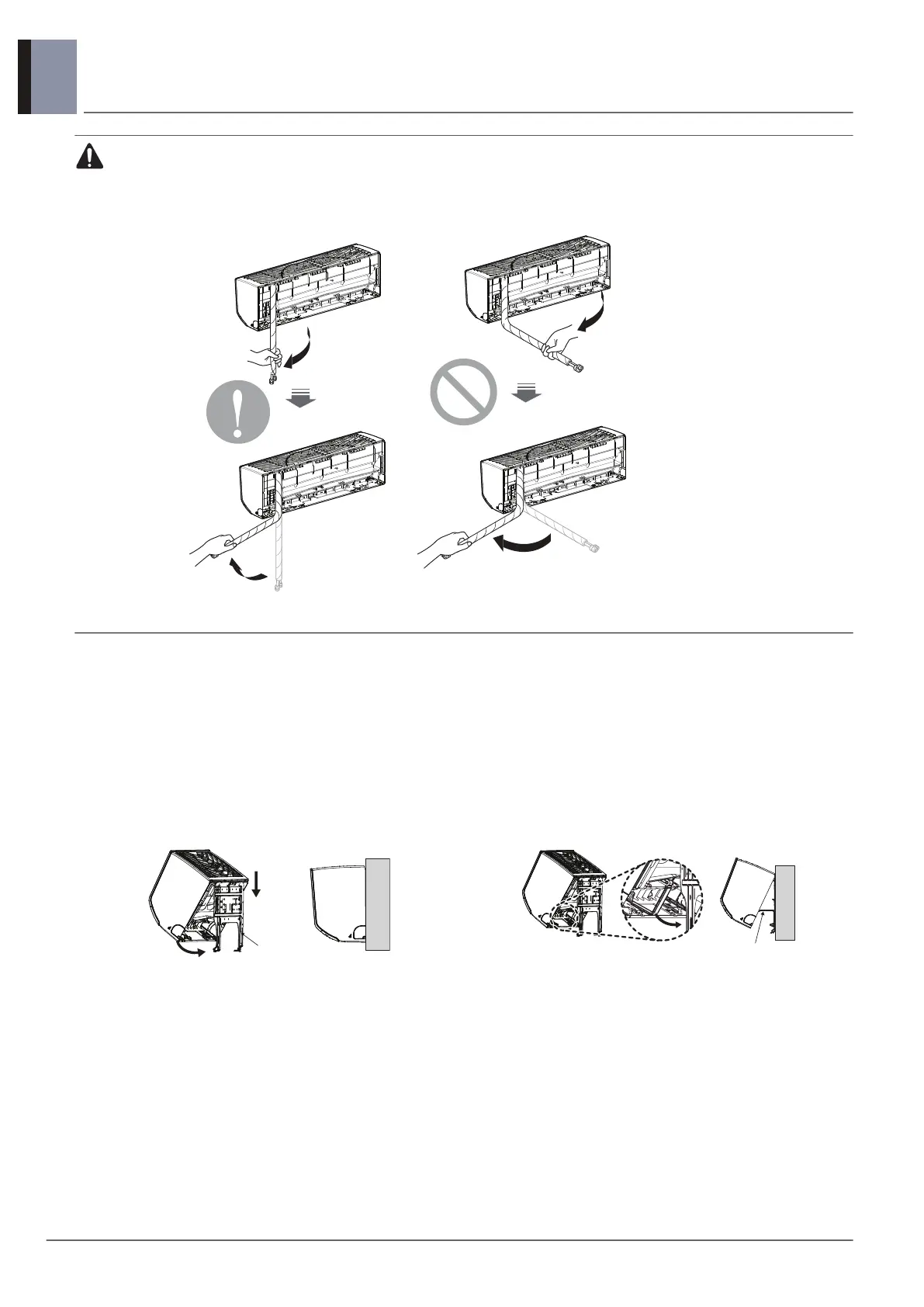

• Press on the tubing cover and unfold the tubing to downward slowly. And then bend to the left side
slowly.
• Following bending case from right to left directly may cause damage to the tubing.
• Installation Information. For right piping. Follow the instruction above.
8.2.2 Installation of Indoor Unit
■ Seat the indoor unit on the installation plate
1. Hook the indoor unit onto the upper portion of the installation plate.(engage the three hooks at the top of the
indoor unit with the upper edge of the installation plate) Ensure that the hooks areproperly seated on the
installation plate by moving it left and right
2. Unlock the tubing holder from the chassis and mount between the chassis and installation plate in order to
separate the bottom side of the indoor unit from the wall.
* The feature can be changed according to type of model.
ೈ
The feature can be changed according to type
