8. Installation
21
MULTI Standard
Indoor Unit

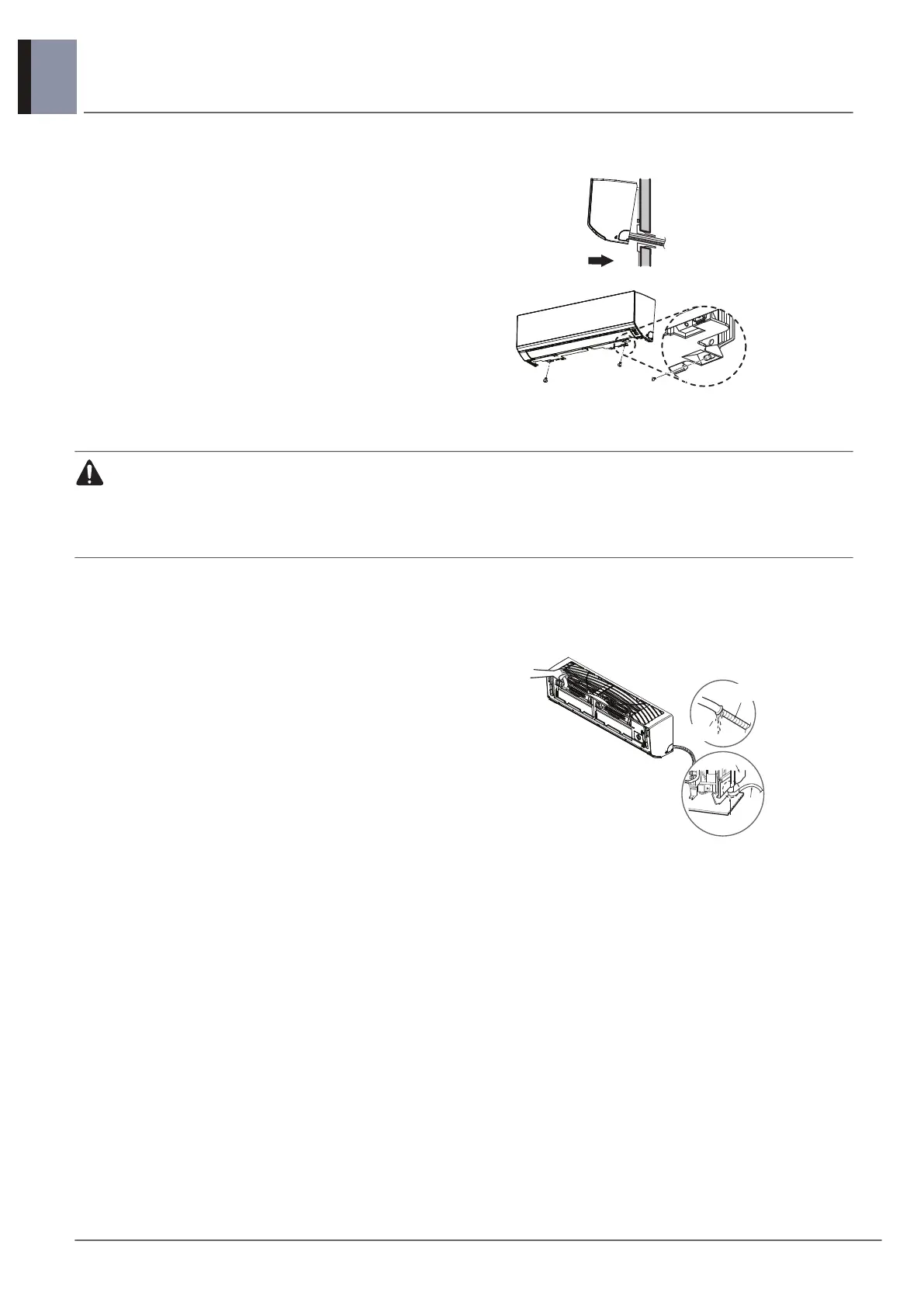

8.2.3 Finishing the indoor unit installation
CAUTION
• The indoor unit can be dropped from the wall, the indoor unit is not screwed correct position on the
install plate.
• To avoid the gap between the indoor unit and wall , screw the indoor unit to the install plate correctly.
8.2.4 Checking the Drainage
To check the drainage.
1.Mount the tubing holder in the original
positon.
2.Ensure that the hooks are properly seated on
the installation plate by moving it left and
right.
3.Press the lower left and right sides of the unit
against the installation plate until the hooks
engage into their slots (clicking sound).
4.Finish the assembly by screwing the unit to
the installation plate by using two pieces of
type "C" screws. And assemble a chassis
cover. (SJ/SK chassis) Recovery the chassis
cover in Original place. (SV chassis)
* The feature can be changed according to type of model.
1.Pour a glass of water on the evaporator.
2.Ensure the water flows through the drain hose of
the indoor unit without any leakage and goes out
the drain exit.
* The feature can be changed according to type of model.
Drain pan
Drain
hose
Leakage
checking
Connecting area
drain hose
Leakage
checking
