MULTI Standard
General information

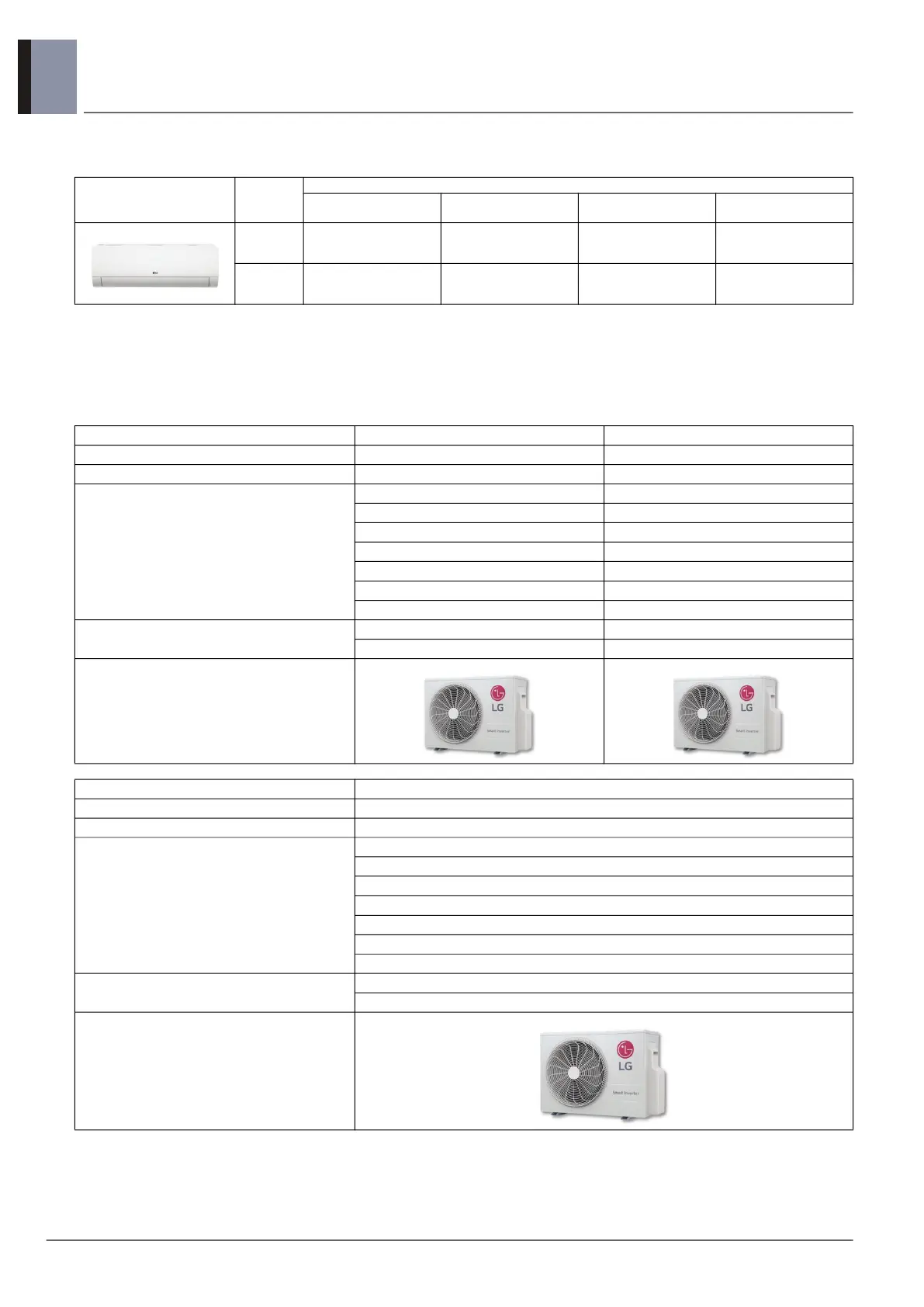

1. Model Line Up & External Appearance
1.1 Indoor Unit
* : Actual system capacity would be different accordance with combination of outdoor unit.
1.2 Outdoor units and combination
Note
The combination table above indicates the recommended combinations. Combinations other than those mentioned in the table above are also possible within a ratio of 125%.
For the performance of combinations not indicated in the combination table, you can refer to the performance of the total capacity model provided in the PDB.
Ex) In case the requested combination is 12+12+12 = 36, you can refer to the combination table of the 9+9+18 model that is provided in the PDB.
External Appearance Chassis
Capacity Class* [kW (kBtu/h)]
2.5
(9)
3.5
(12)
5.0
(18)
7.1
(24)
SJ AMNQ09GSJAA AMNQ12GSJAA
SK AMNQ18GSKAA AMNQ24GSKAA
Nominal Capacity (kW) 5.4 7.0
Model Name A2UQ18GFAB A3UQ24GFAB
No.of connectable indoor units 2 2 ~ 3
Combination
(Indoor Unit Capacity Index, kBtu/h)
9 + 9 12 + 12
9 + 12 9 + 18
- 12 + 18
- 9 + 9 + 9
- 9 + 9+ 12
- -
- -
Power supply
220-240V, 1Ø, 50Hz 220-240V, 1Ø, 50Hz
220V, 1Ø, 60Hz 220V, 1Ø, 60Hz
External Appearance
Nominal Capacity(kW) 10.0
Model Name A3UQ34GFAB
No.of connectable indoor units 2 ~ 3
Combination
(Indoor Unit Capacity Index, kBtu/h)
12 + 12
12 + 24
18 + 18
9 + 9 + 18
9 + 12 + 18
9 + 9 + 24
12 + 12 + 18
Power supply
220-240V, 1Ø, 50Hz
220V, 1Ø, 60Hz
External Appearance
