2. Installation Space
5
Installation of Outdoor Units

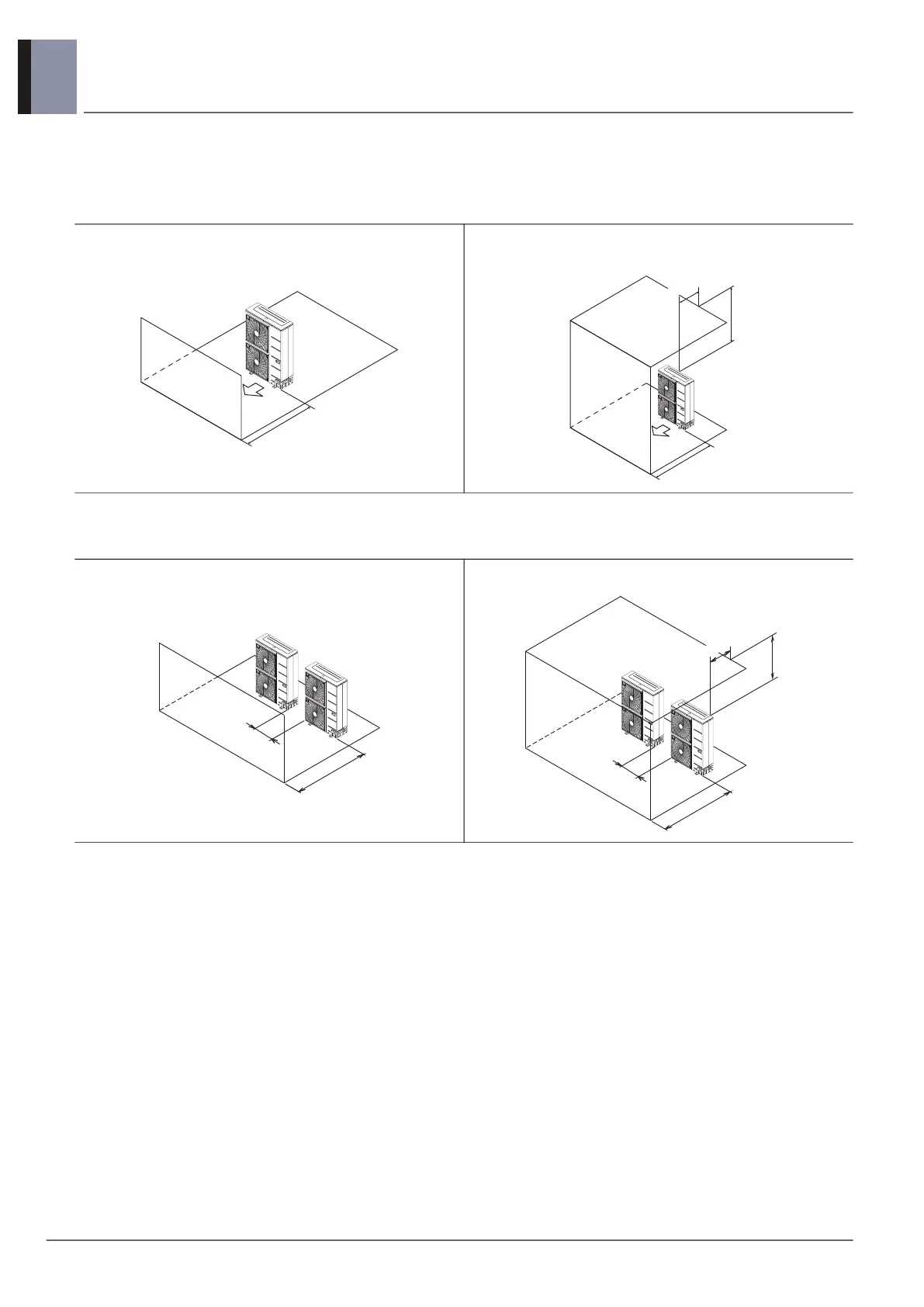

2.1.2 Where there is an obstacle on the discharge side:
■ Stand alone installation
[Unit : mm(inch)]
■ Collective installation
[Unit : mm(inch)]
• No obstacle above • Obstacle above, too
• No obstacle above • Obstacle above, too
500(19-11/16) or more
500(19-11/16) or more
1000(39-3/8) or more
500(19-11/16) or less
1000(39-3/8) or more
600(23-19/32)
or more
1000(39-3/8) or more
600(23-19/32)
or more
500(19-11/16) or less
1000(39-3/8) or more
