MULTI/SINGLE CAC
2. Installation Space
7
Installation of Outdoor Units

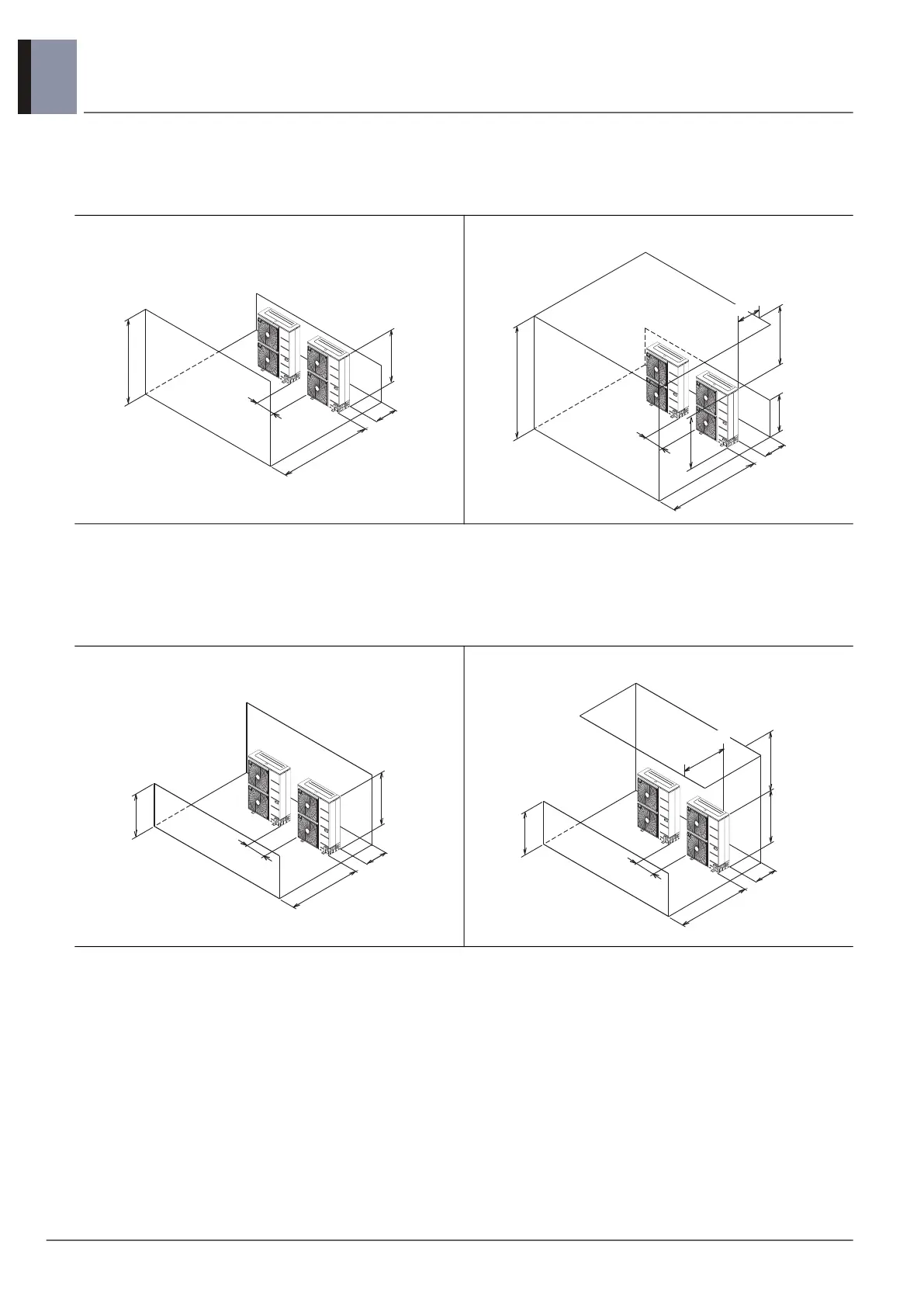

■ Collective installation
Where the obstacles on the discharge side is higher than the unit (L
D
>H):
[Unit : mm(inch)]
• When the obstacles above also, close the bottom of the installation frame to prevent the discharged air from being bypassed.
• In case that height (L
S
) of obstacles on the suction side is higher than the unit height (H),
set the stand as ‘L
S
’ ≤ ’H’. ‘L
S
’ should be lower than ‘H’.
Where the obstacles on the discharge side is lower than the unit (L
D
≤H) :
[Unit : mm(inch)]
• When the obstacles above also, close the bottom of the installation frame to prevent the discharged air from being bypassed.
• No obstacle above • Obstacle above, too
• No obstacle above • Obstacle above, too
L
D
H
1000(39-3/8) or more
600(23-19/32)
or more
300(11-13/16)
or more
L
D
H
L
S
1250(49-7/32) or more
600(23-19/32)
or more
300(11-13/16)
or more
1000(39-3/8) or more
500(19-11/16) or less
H
1500(59-1/16) or more
600(23-19/32)
or more
300(11-13/16)
or more
L
D
H
1500(59-1/16) or more
600(23-19/32)
or more
300(11-13/16)
or more
L
D
1000(39-3/8) or more
500(19-11/16) or less
