LG Multi V 5 Guide Book

ARN ARUU NA E
04
4 5
2
G LTR T
PRHR
07 260
Model Generation
No. of Connected branches
02 : For 2 branches
03 : For 3 branches
04 : For 4 branches
Indicates that this is System
HR Unit using the R410A
018 019
_TROUBLE SHOOTING GUIDE BOOK _

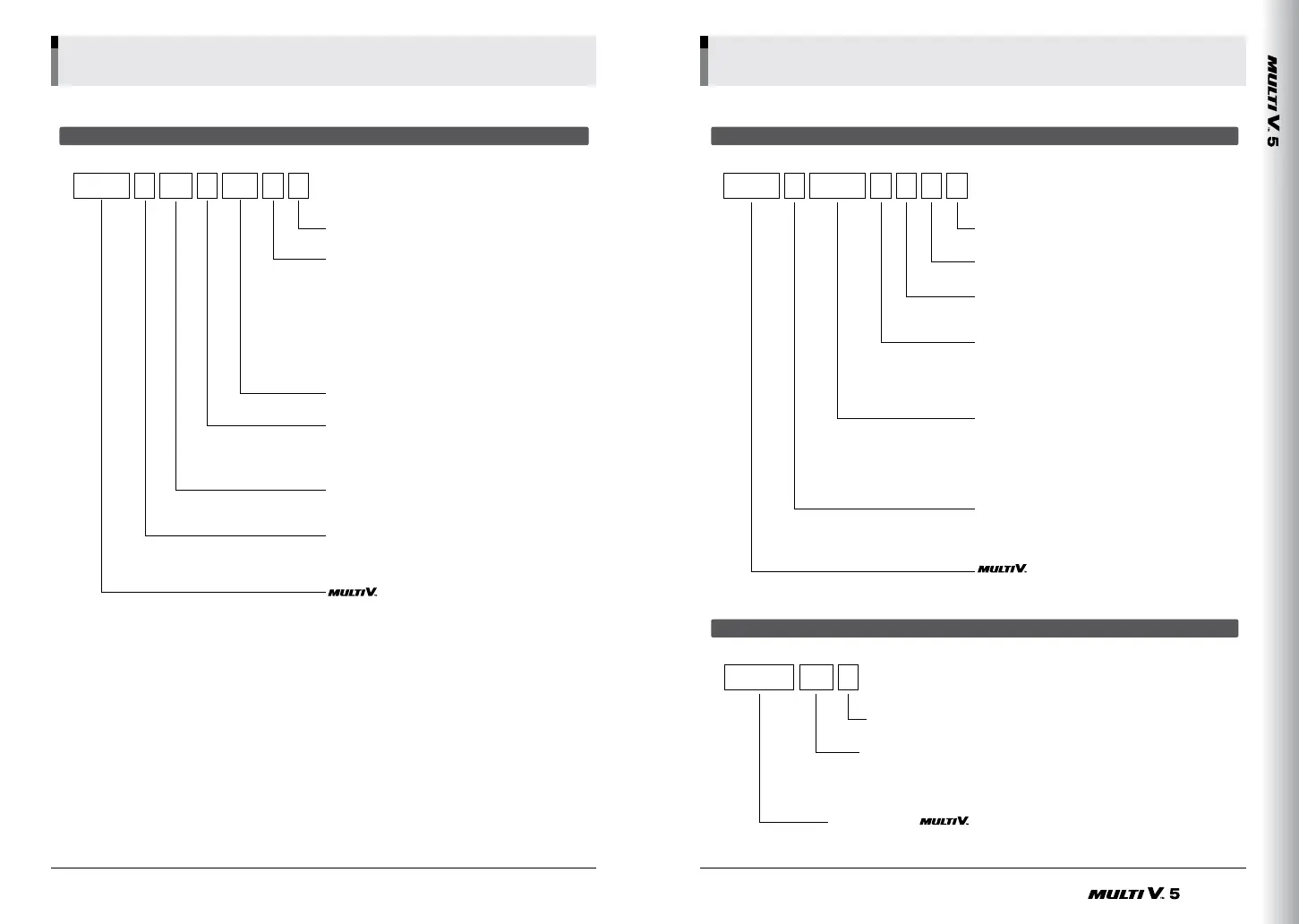

1. Nomenclature
Model Generation Model Generation
E : High Efficiency
Air Discharge Type
T : Top Discharge
Electrical Ratings
B : 3Ø, 220V, 50Hz
D : 3Ø, 480V, 50Hz
L : 3Ø, 380-415V, 50Hz / 3Ø, 380V, 60Hz
Total Cooling Capacity in Horse Power(HP) unit
E X) 10HP → '100'
(For only 22, 24, 26HP)
In case of single unit → '220', '240', '260'
In case of series unit → '221', '241', '261'
Combination of Inverter Type and
for both heat pump / heat Recovery
M : Inverter for both Heat pump and Heat Recovery
Combination of Inverter Type and
Cooling Only or Heat Pump
U: DC Inverter and H/P and C/O
System with
Indoor Unit using R410A
System with
Outdoor Unit using R410A
Chassis Name
Total Cooling Capacity in Btu/h
EX) 5,000 Btu/h Class → '05' 18,000 Btu/h Class → '18'
Electrical Ratings
2:1Ø, 220V, 60Hz
6:1Ø, 220 - 240V, 50Hz
G:1Ø, 220 - 240V, 50Hz / 1Ø, 220V, 60Hz
Combinations of functions
A:Basic function
L:Neo Plasma(Wall Mounted)
C:Plasma(Ceiling Cassette)
G: Low Static
U : Floor Standing without Case
ART COOL Type Panel Color
SB/SC - R:Mirror V:Silver W:White
Z : Fresh Air Intake Unit
Multi V 5 Indoor Unit Multi V 5 Outdoor Unit
Multi V 5 HR Unit
Basic Part
Multi V 5
Intorduction
Trouble Shooting
Function Control
Back
Basic PartBasic PartBasic PartBasic Part

LG Multi V 5 Specifications

General

Type	VRF (Variable Refrigerant Flow)
Refrigerant	R410A
Compressor Type	Inverter Scroll Compressor
Outdoor Unit Fan Type	Axial Fan
Cooling Capacity	22.4 kW to 270 kW
Energy Efficiency	High
Operating Range	Cooling: -5°C to 48°C
Power Supply	380-415V, 50/60Hz
Heat Exchanger Type	Microchannel
Control Type	Centralized Control
Indoor Unit Options	Cassette, Wall Mounted, Ducted
Heat Recovery	Available
Warranty	Varies by region (typically 5 years compressor, 1-2 years parts)
