_TROUBLE SHOOTING GUIDE BOOK _
8. Outdoor Fan & Fan Motor
8.1 Outdoor Fan
8.2 Fan Motor
1. The outdoor fan is controlled by the inverter motor which can control the number of rotations.
2. The outdoor fan is controlled by the high/low pressure of the outdoor unit after the operation of
compressor.
3. There is possibility that the outdoor fan does not operate due to low capacity operation or low outdoor
temperature even if the compressor is operating. This does not mean breakdown of the unit, the fan will
start operating if it reaches the set point.
Checking Item Symptom Countermeasure
1. The fan motor
does not operate.
2. Vibration of the
fan motor is large
1) When power sup
-
ply is abnormal
* Modify connection status in front of or at the rear
of the breaker, or if the power terminal console is
at frosting condition.
* Modify the power supply voltage is beyond speci
-
fied scope.
2) For wrong wiring * For following wiring.
1. Check connection status.
2. Check contact of the connector.
3. Check that parts are firmly secured by tightening
screws.
4. Check connection of polarity.
5. Check short circuit and grounding.
3) For failure of motor * Measure winding resistance of the motor coils.
- UX3 : 19Ω ±7 %(@25℃)
- UX2 : 14.2Ω ±7 %(@25℃)
4) For failure of circuit
board
* Replace the circuit board in following procedures
if problems occur again when powering on and if
there are no matters equivalent to items as speci
-
fied in above 1) through 3).(Carefully check both
connector and grounding wires when replacing the
circuit board)
1. Replace only fan control boards.If starting is done,
it means that the fan control board has defect.
2. Replace both fan control board and the main
board. if starting is done, it means that the main
board has defect.
3. If problems continue to occur even after coun-
termeasure of No.1 and No.2, it means that both
boards has defect.

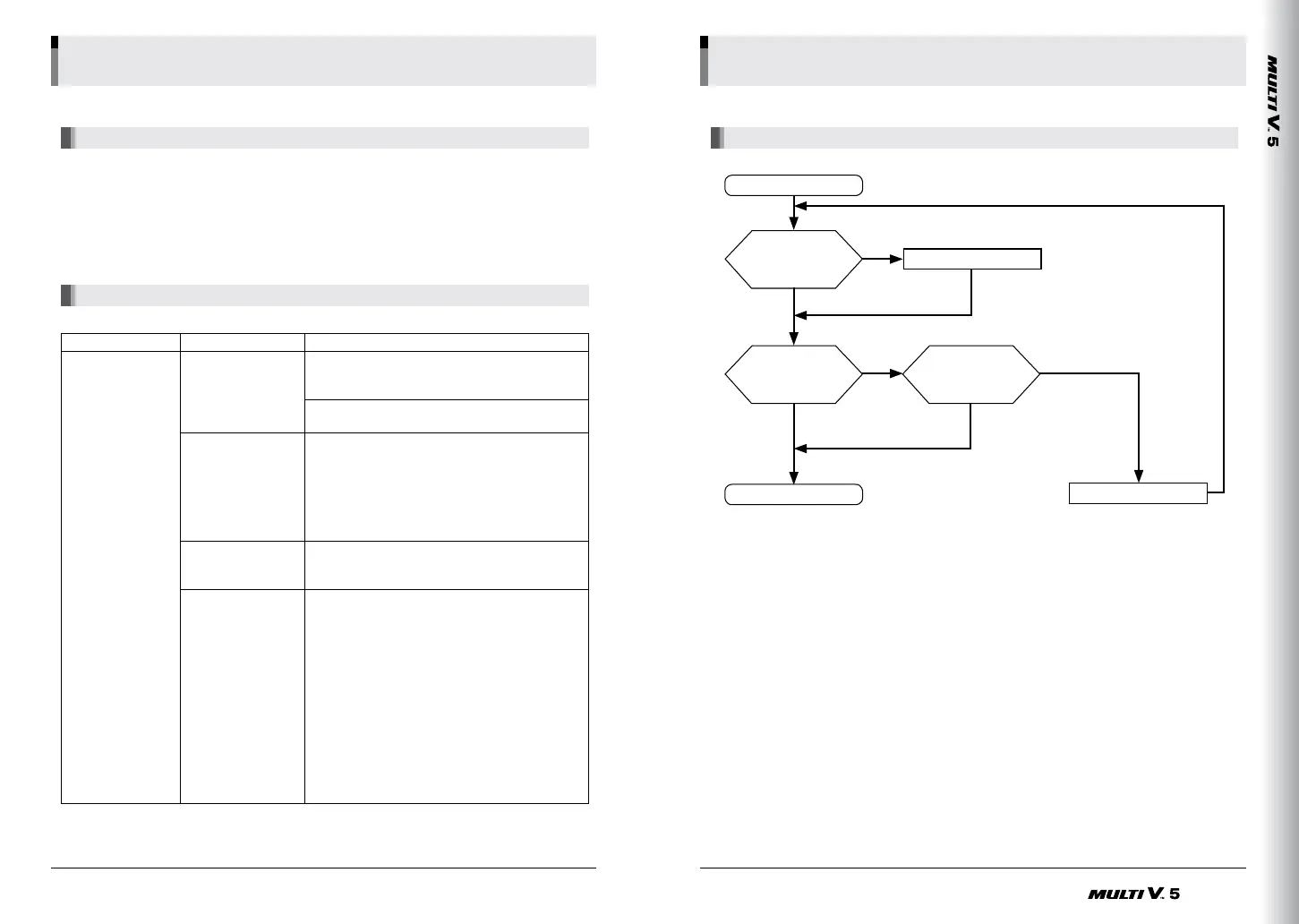

8.3 Checking Method (Flow Chart)
Contact of the signal
section of IPM
and power supply unit is
normal?
Fan still works during
operation of the heating low
pressure less than
700kPaG?
Fan still works during
operation of the cooling
high pressure more than
2700kPaG?
Replace the fan motor
Replace the fan IPM board
Checking start
No malfunction of outdoor fan
Yes Yes
Yes
No
No
No
Basic PartBasic PartBasic PartBasic Part
To Next Page
