Connecting 19
Connecting
2
Connection to Another
device
Accessory Audio/Video (A/V)
Connections to Recorder

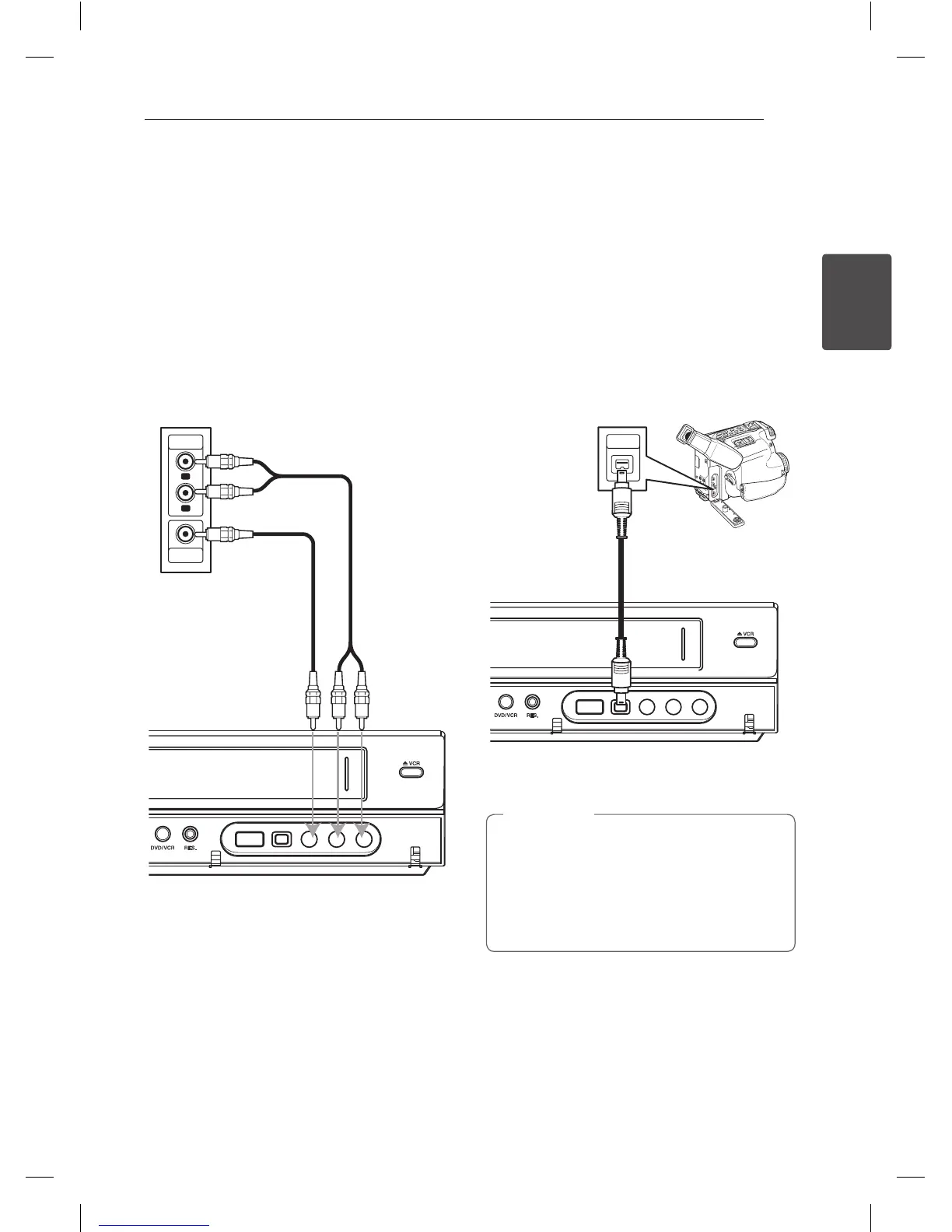

Connect the input jacks (AV IN 2) on the recorder
to the audio/video out jacks on your accessory
component, using audio/video cables.
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Front of the unit
Jack panel of Accessory Component
(VCR, Comcorder, etc.)
Connecting a Digital
Camcorder
Using the front panel DV IN jack, it is possible to
connect a DV digital camcorder or video deck or
DVD-R/RW recorder and digitally transfer DV tapes
or DVD-R/RW discs to DVD-R/RW.
Use a DV cable (not supplied) to connect the DV in/
out jack of your DV camcorder/video deck to the
front panel DV IN jack of this recorder.
DV
IN/OUT
Front of the unit
DV Digital Camcorder
y
This jack is for connection to DV equipment
only. It is not compatible with digital
satellite tuners or D-VIDEO video decks.
y
Disconnecting the DV cable while recording
a contents of the connected digital
camcorder may result in malfunction.
,
