24

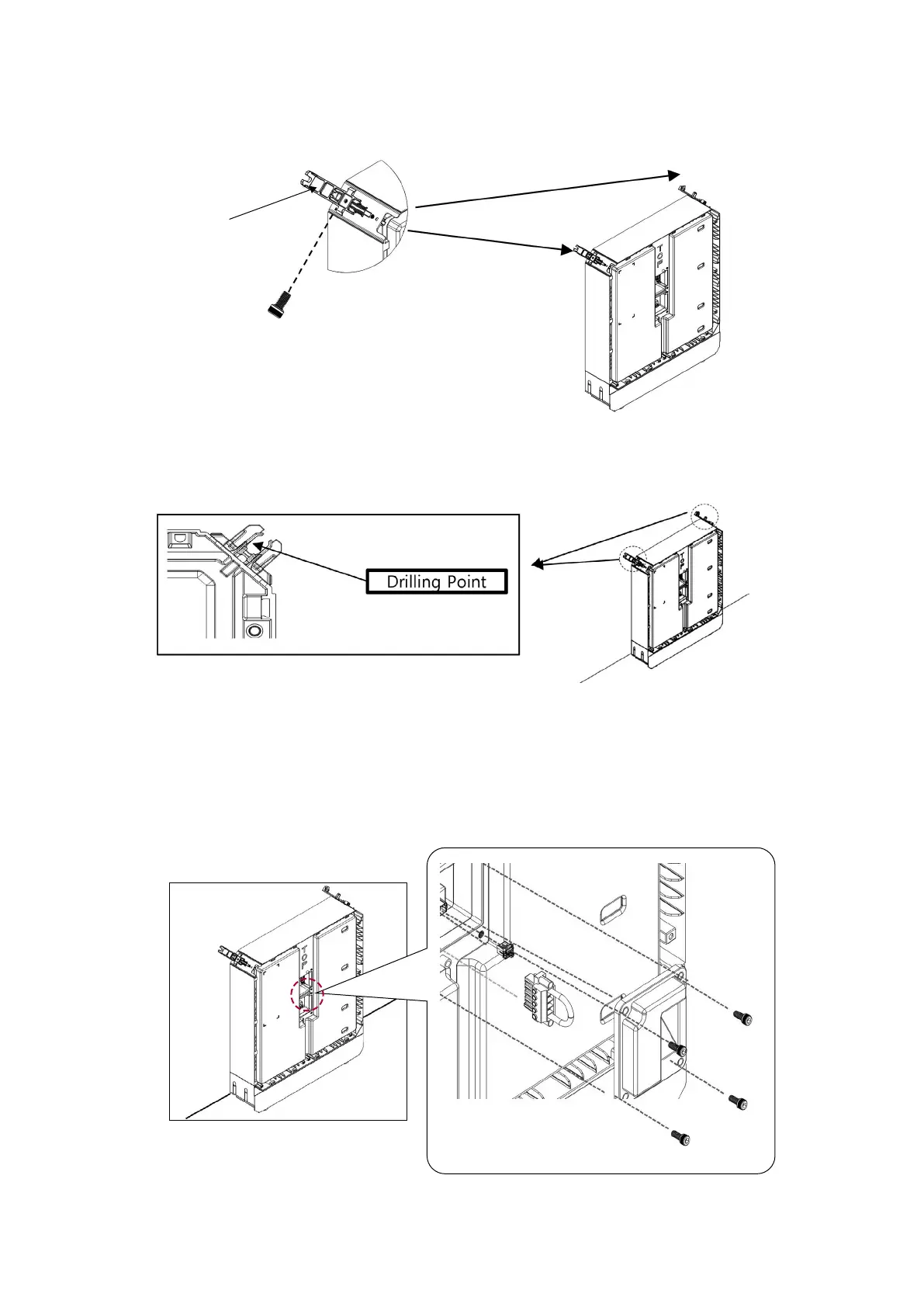

2. Fix the rst BMA to the wall
1) Assemble Fixing Brackets on the rst BMA
Fixing Bracket
M6 Bolt
(a torque of 5N·m)
2) Move the rst BMA to the wall and mark the drill point for the Fixing
Brackets. Drill holes at the marked points and x the BMA to the wall.
Wall
Recommended fastener diameter/length : 10mm/40mm
3. Connect the Terminal Resistor, End Connector and Connector Cover to
the Bottom Terminal Block inside the BMA.
* Terminal Resistor, End Connector and Connector Cover are included in the BPU Bundle Package.
Wall
M6 Bolt
End Connector
Connector Cover
Terminal Resistor
To Next Page
