3.7.1 Items for Wall Mount Type
These items are used for Wall Mount type
• M6 Wrench Bolt
• Anchor Bolt
• Wall Mounting Bracket, Pack Mounting Bracket
• Design Cover
• Corner Bracket, Single Corner Cover, Double corner cover
• Handle
• BMA Inter Cable Assy, BMA_TML End_CNT Assy, Terminal Cover End
Assy

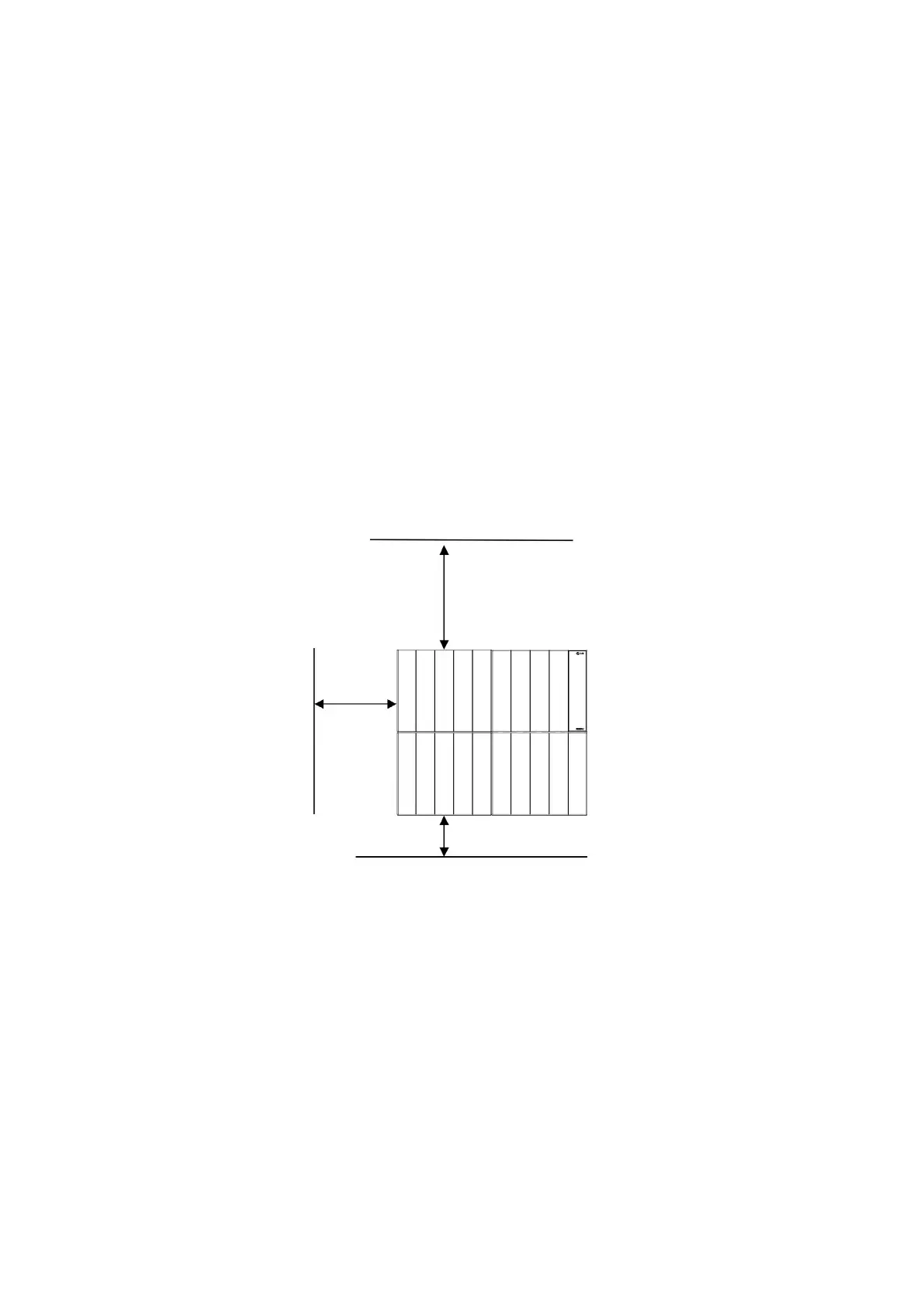

3.7.2 Clearance
At least
300mm
At least
300mm
At least
500mm
3.7.3 Mounting Brackets Installation
1. Select a layout referring to the enclosed layout document.
2. Decide the position of Mounting Bracket.
3. Drill holes in the wall for the anchor bolts(Minimal size of M8 0.3in is
required). The drilling depth should be at least 50mm.
4. Drive the anchor bolts into the wall holes through the screw holes at
the Wall Mounting Bracket
