4.4 End of Connection

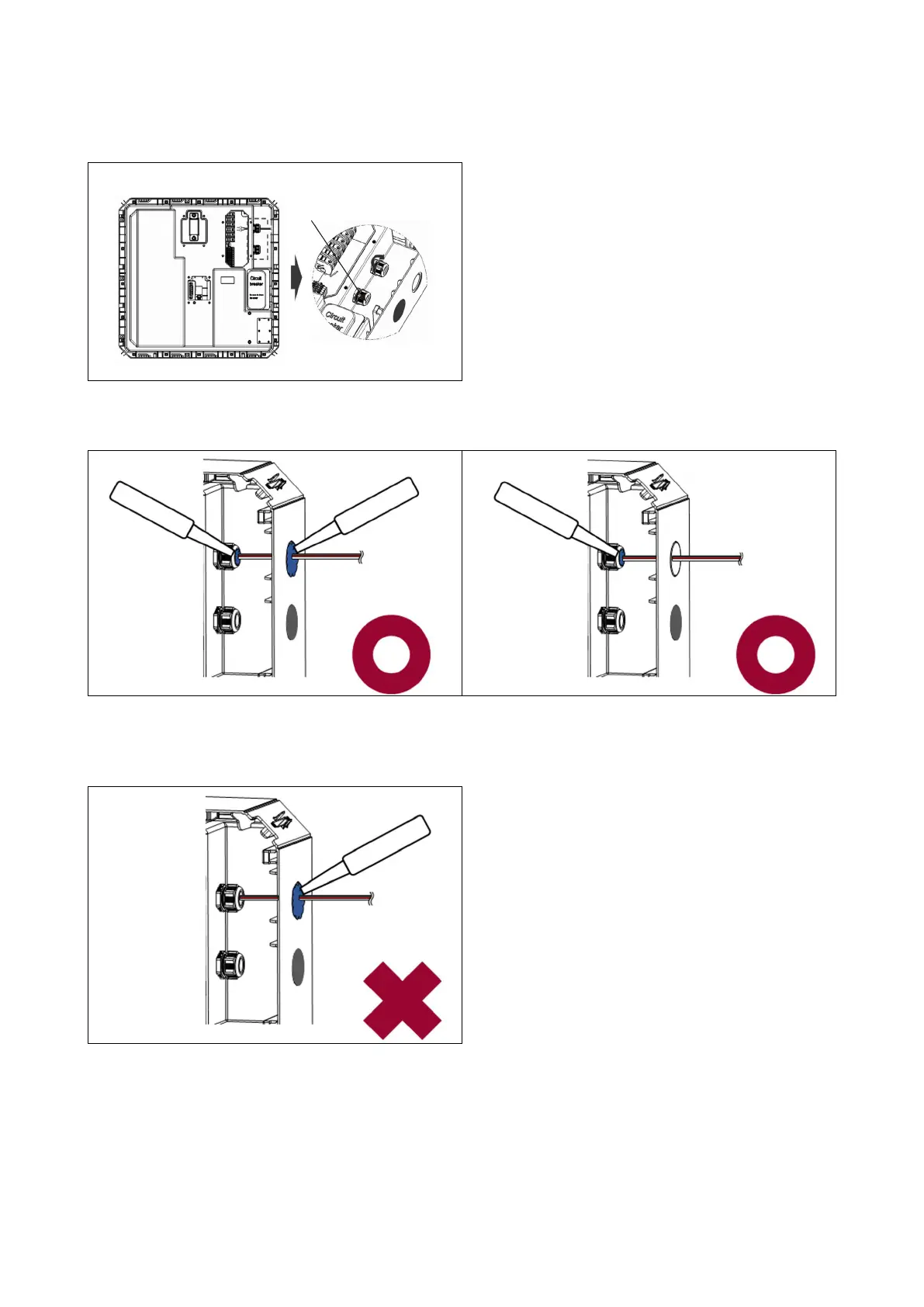

1-1. Insert the seal into the Cable Gland and fasten the Cable Gland
Cable Gland
(a torque of 5~6 N·m)
1-2. Or seal the Cable gland with sealant after fasten the Cable Gland.
※ IP55 is not met when only outer hole is sealed. Make sure that inter hole of the Cable Gland is sealed
properly.
