ENGLISH
45

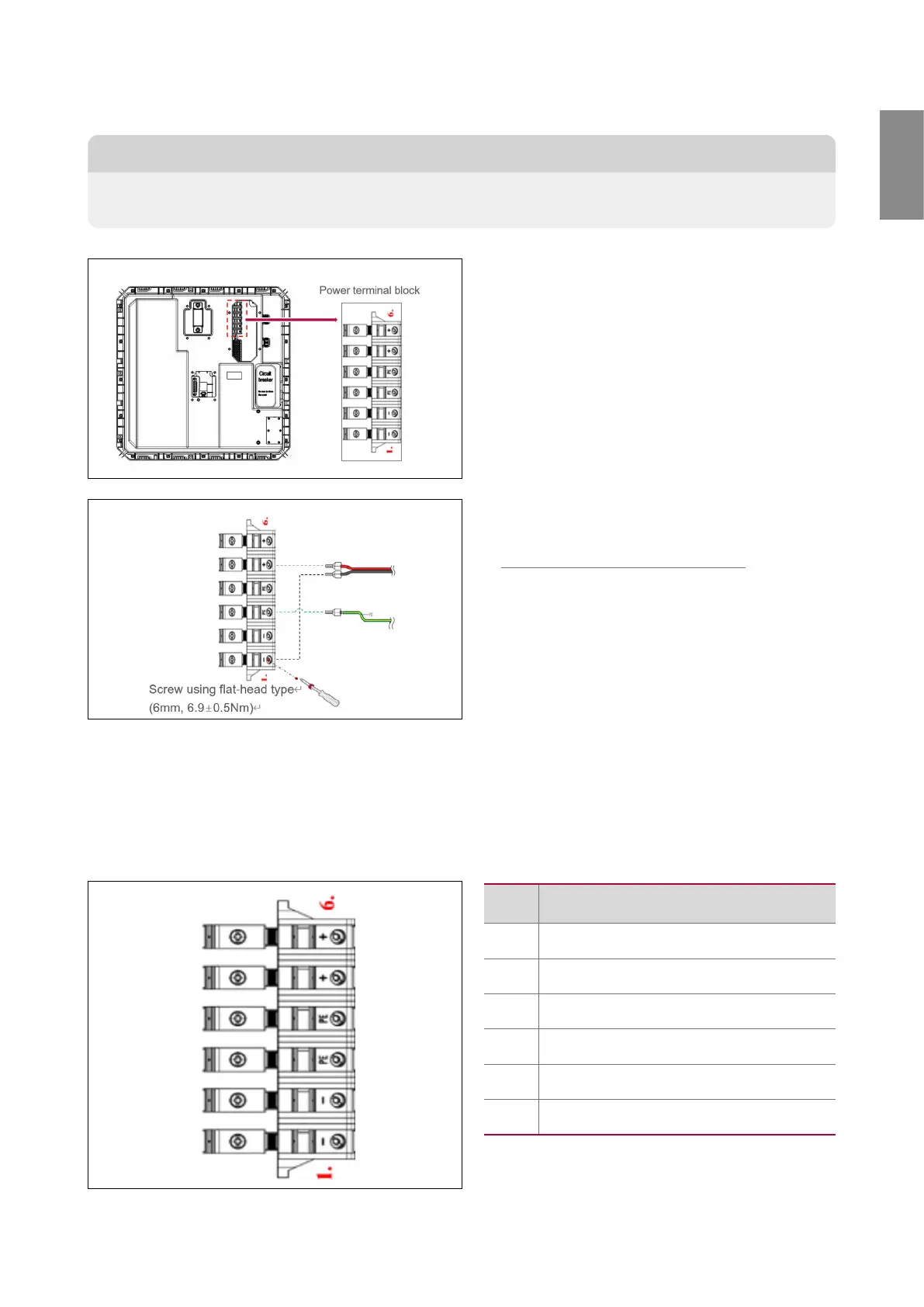

4.3 Power (Charging/Discharging) Line Connection
NOTE
Pay attention to polarity. Reverse polarity connection causes severe damage to the BMA.
1. Find the Power terminal block
inside the terminal hole
2-1. Prepare the power cable
Recommended power cable
a)
Max. cable length : < 30m(98ft)
b) Conductor cross section :
6mm
2
c) Use ferrule terminal for the
power cable
2-2. Connect the power cable
according to the pin-map
No. Pin map
6 (+)*
5 (+)
4 PE
3 PE
2 (-)*
1 (-)
* Reserved port for parallel-connected
To Next Page
