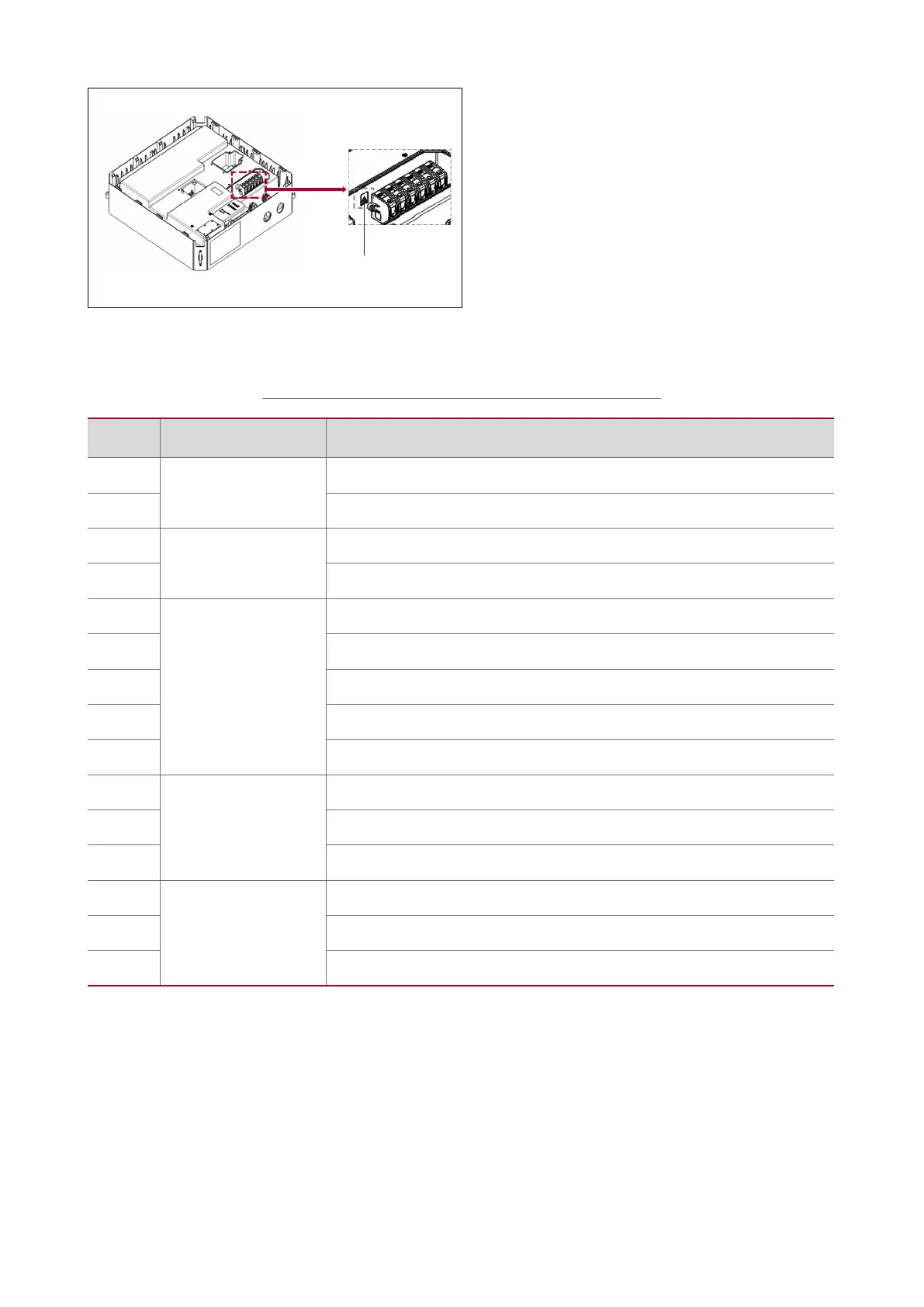

Terminal for
Ethernet cable
3. Insert the Ethernet cable
through the gland hole and
connect the cable it to the
Terminal for Ethernet cable.
Pin-map of the communication terminal block
No. Color Pin map
1
GRAY
ENABLE GND(-)
2 LTE/WAKE GND(-)
3
BLACK
INPUT 12V (BPU EOL)
4 ENABLE 12V (IN)
5
RED
WAKE OUT
6 WAKEK IN
7 INTERNAL CAN GND
8 INTERNAL CAN Lo
9 INTERNAL CAN Hi
10
BLUE
LTE 12V(+)
11 INVERTER RS485 B-
12 INVERTER RS485 A+
13
GREEN
INVERTER COMMS GND
14 INVERTER CAN Lo
15 INVERTER CAN Hi
