3.6.4 Finalizing Installation
The following steps shall be executed after the connection to the inverter
and commissioning is completed.

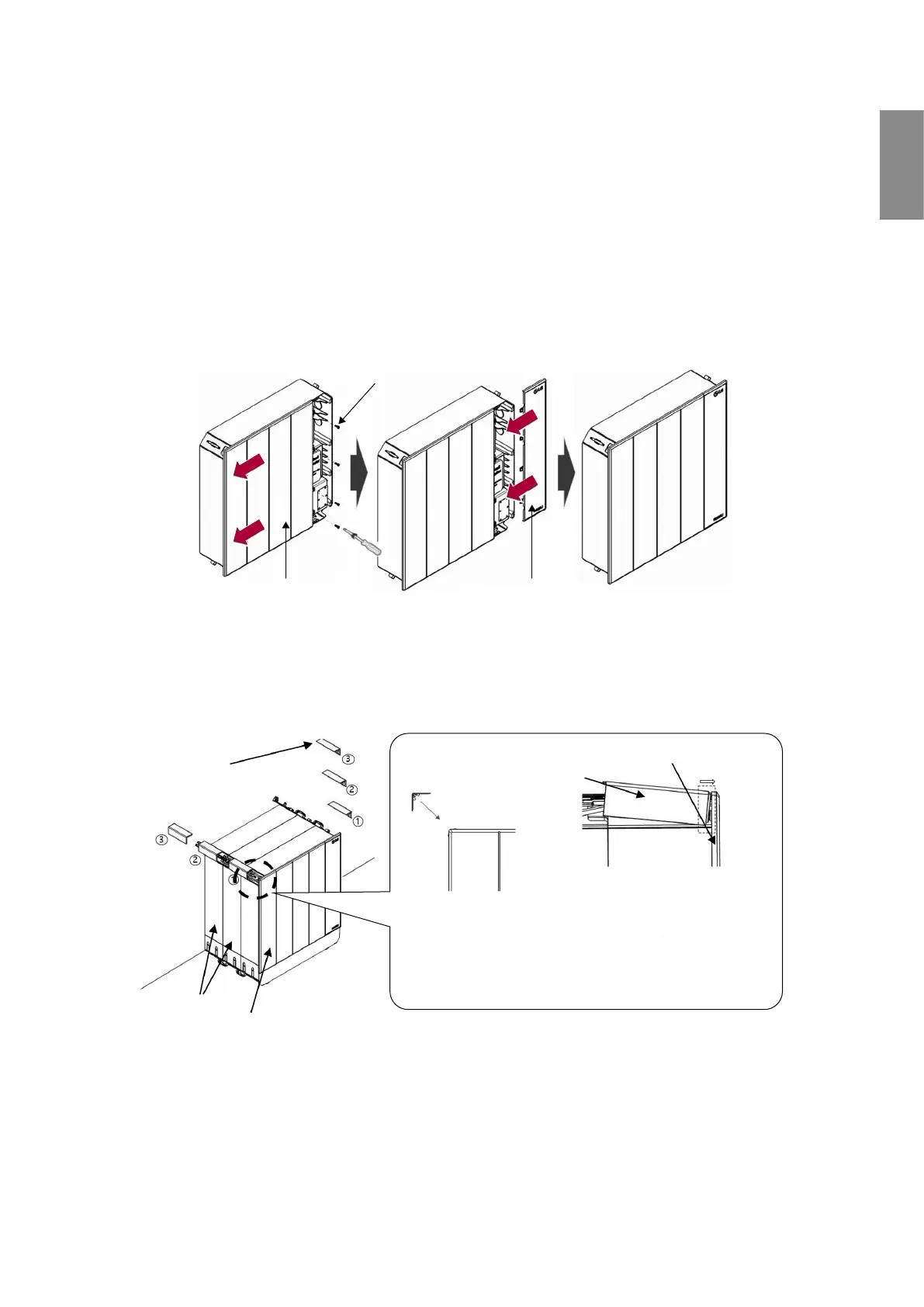

1. Reassemble the BPU’s Design Cover and LED Cover.
1) Reassemble the Design Cover of the BPU by sliding it backwards
2) Fasten the 4 bolts that were removed.
3) Reassemble the LED Cover of the BPU by sliding it backwards.
LED CoverDesign Cover
M6 Bolt
(a torque of 1.5 N·m)
2. After the installation of the BPU, assemble corner covers on each
corner to protect the cables.
Corner Cover
BMA
Design Cover
Corner Cover
Push the front edge of the Corner Cover
into the Design Cover
(or the Corner Cover applied in front)
Assemble
direction
BPU
Wall
