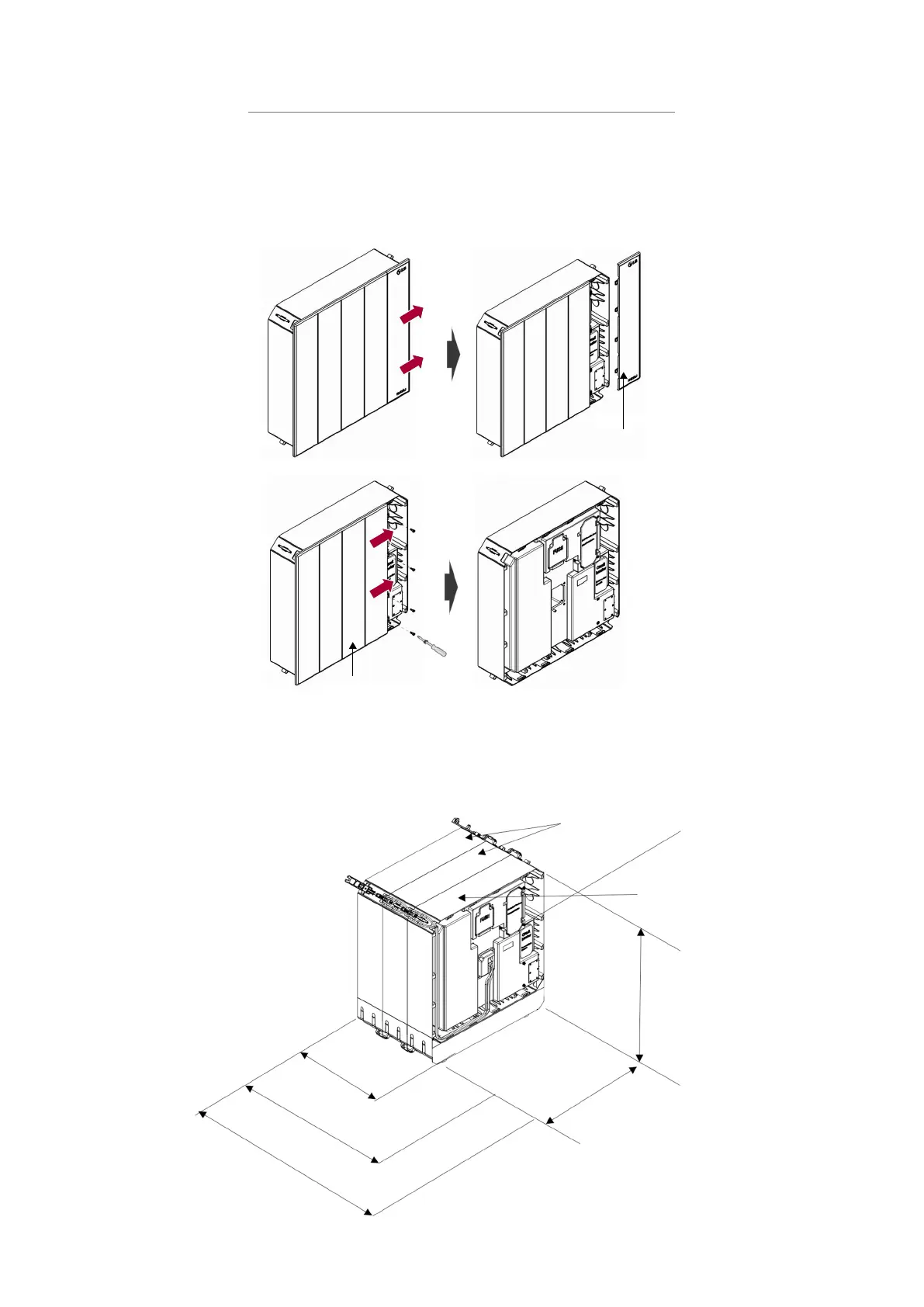

Remove LED Cover and Design Cover of the BPU
1) Slide and remove the LED Cover of the BPU.
2) Unscrew the 4 bolts on the right side of the BPU as illustrated below.
3) Slide and remove the Design Cover of the BPU.
LED Cover
Design Cover
10. Refer to the dimension information by different number of BMAs, as
illustrated below.
Wall
BMA
BPU
Basic : 790.2mm
Option : 869.3mm
665.2mm
BMA2ea+BPU1ea
526.7mm
BMA3ea+BPU1ea
675.1mm
BMA4ea+BPU1ea
823.5mm
