ENGLISH
27

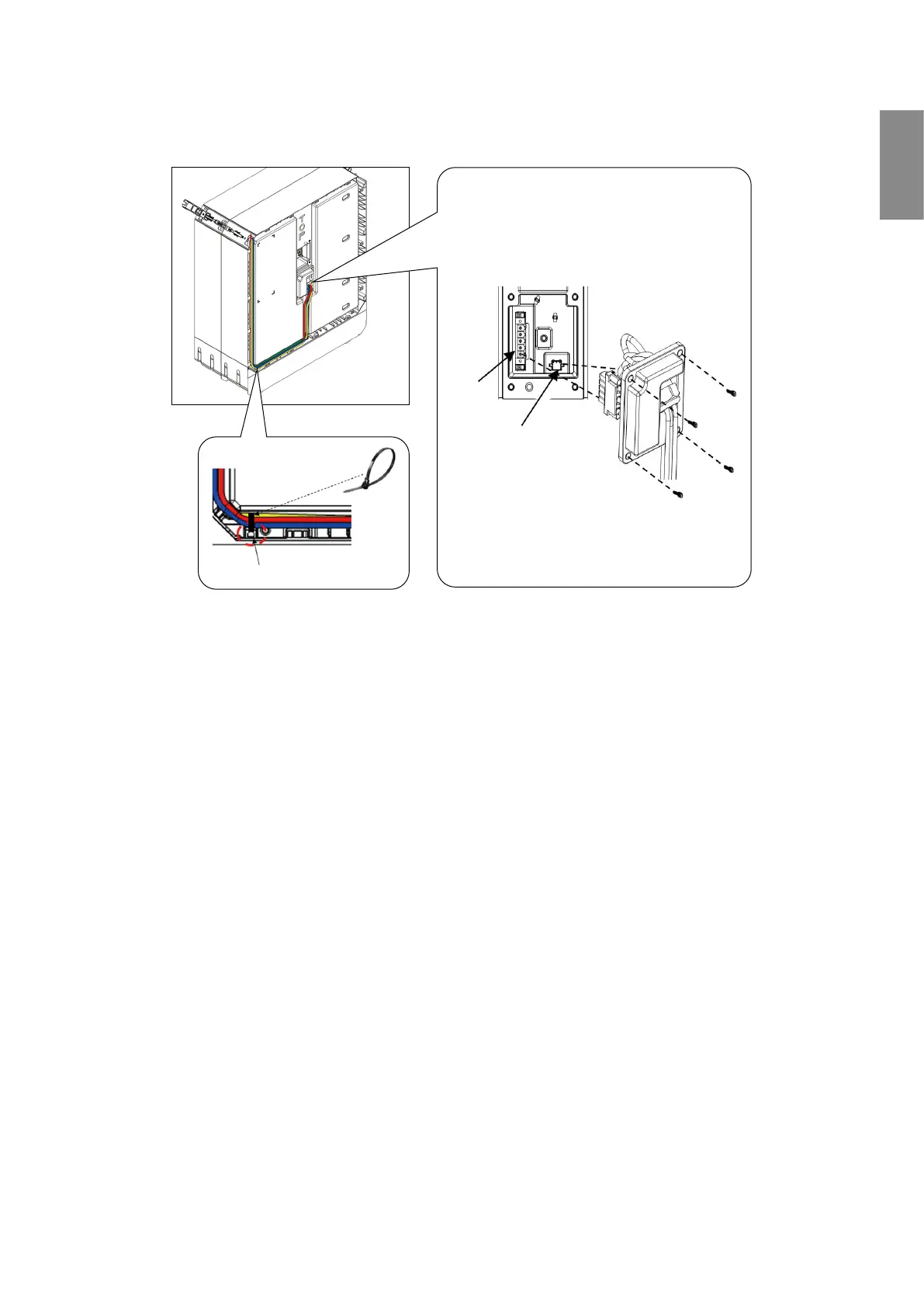

7. Apply the Wire Harness along the attachable path as the below image
and connect it to the Bottom Terminal Block of the second BMA.
Tie hole
After connection,
fasten the bolts.
Connector color : Green
Power
M6 Bolt
Communication
Inter Cable
8. If the third and/or forth BMAs are to be installed, repeat the steps from
No.4 to No.7.
9. Apply the BPU in front of the last BMA, and connect the last BMA with
the BPU with Wire Harness by repeating the steps from No.4 to No.7.
To Next Page
