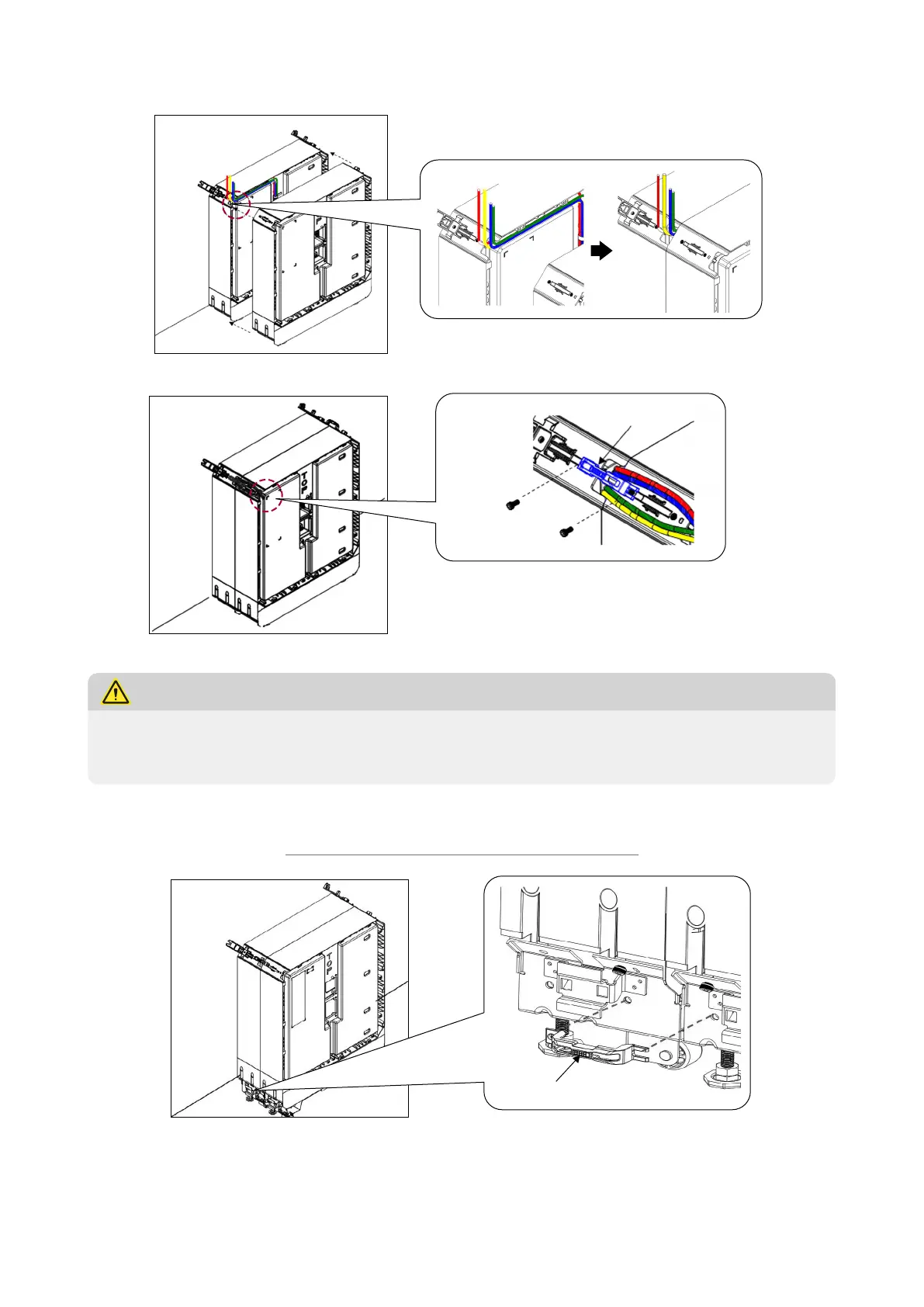

6. Install the second BMA in front of the rst BMA.
Wall
Wall
Corner Bracket
M6 Bolt
(a torque of 5N·m)
* The Corner Bracket assembled on the
first and second BMA should divide the
cables of the Wire Harness in to two part,
with each part having two cable lines.
CAUTION
When the second BMA is installed in front of the rst BMA, make sure that the Inter Cable
does not interfere between the BMAs.
When adding Optional Standing Bracket
Wall
Corner Bracket
To Next Page
