LG RESU FLEX - Installation and Cable Connection of BMA and BPU for Wall Type

34
3.7.4 Installation and Cable Connection of BMA and BPU for Wall
type

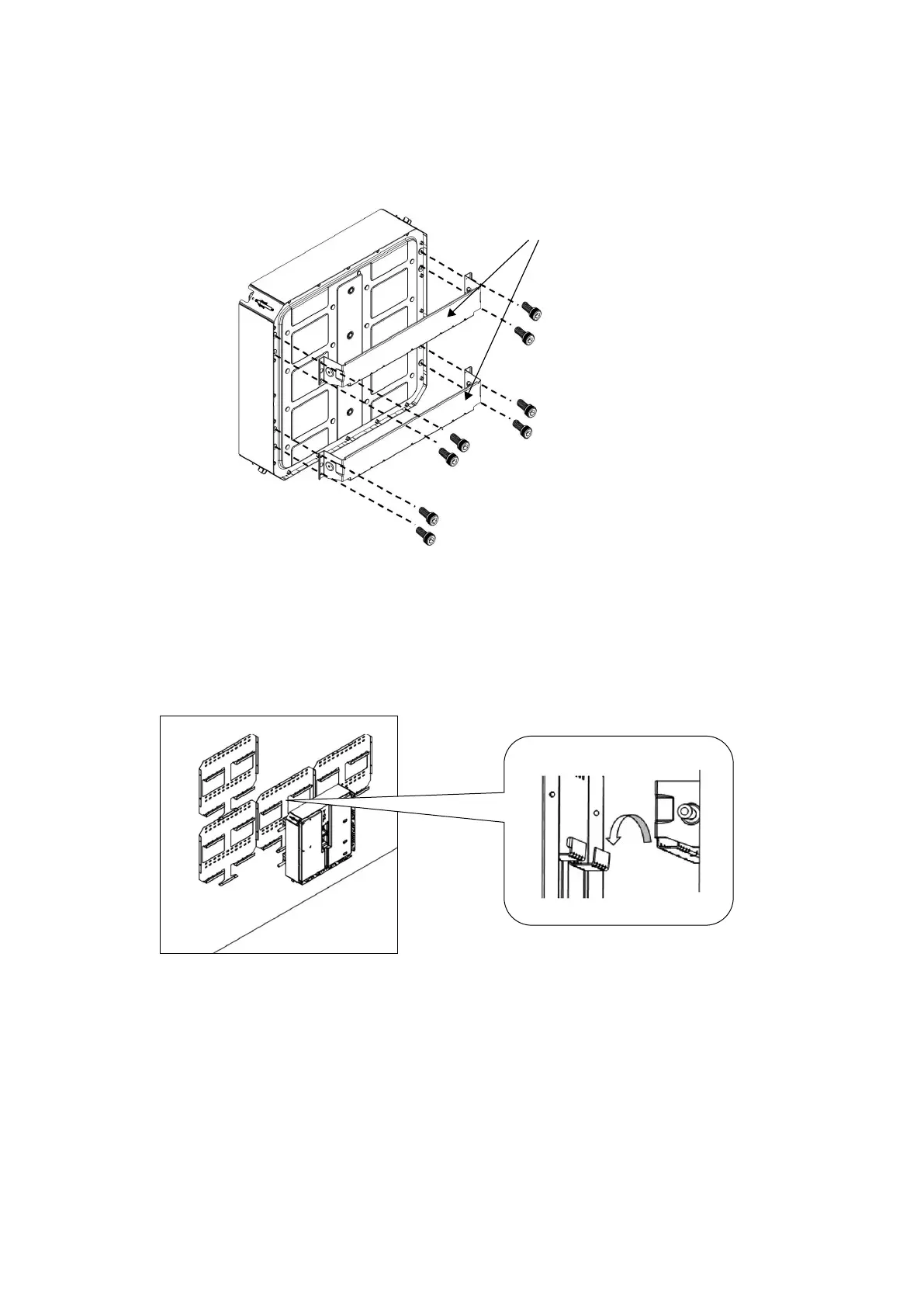

1. Assemble the Pack Mounting Bracket to the BMA
Pack Mounting Bracket
2. Assemble the BMA to the Wall Mounting Bracket using the handle.
* Depending on the BMA attachment location, the location of the handles will be different.
* The Design Cover of the BPU should be removed before installing the BPU to the Mounting
Bracket.
Wall
The positions of the handles are different depending on the location of the
second BMA.
