ENGLISH
33

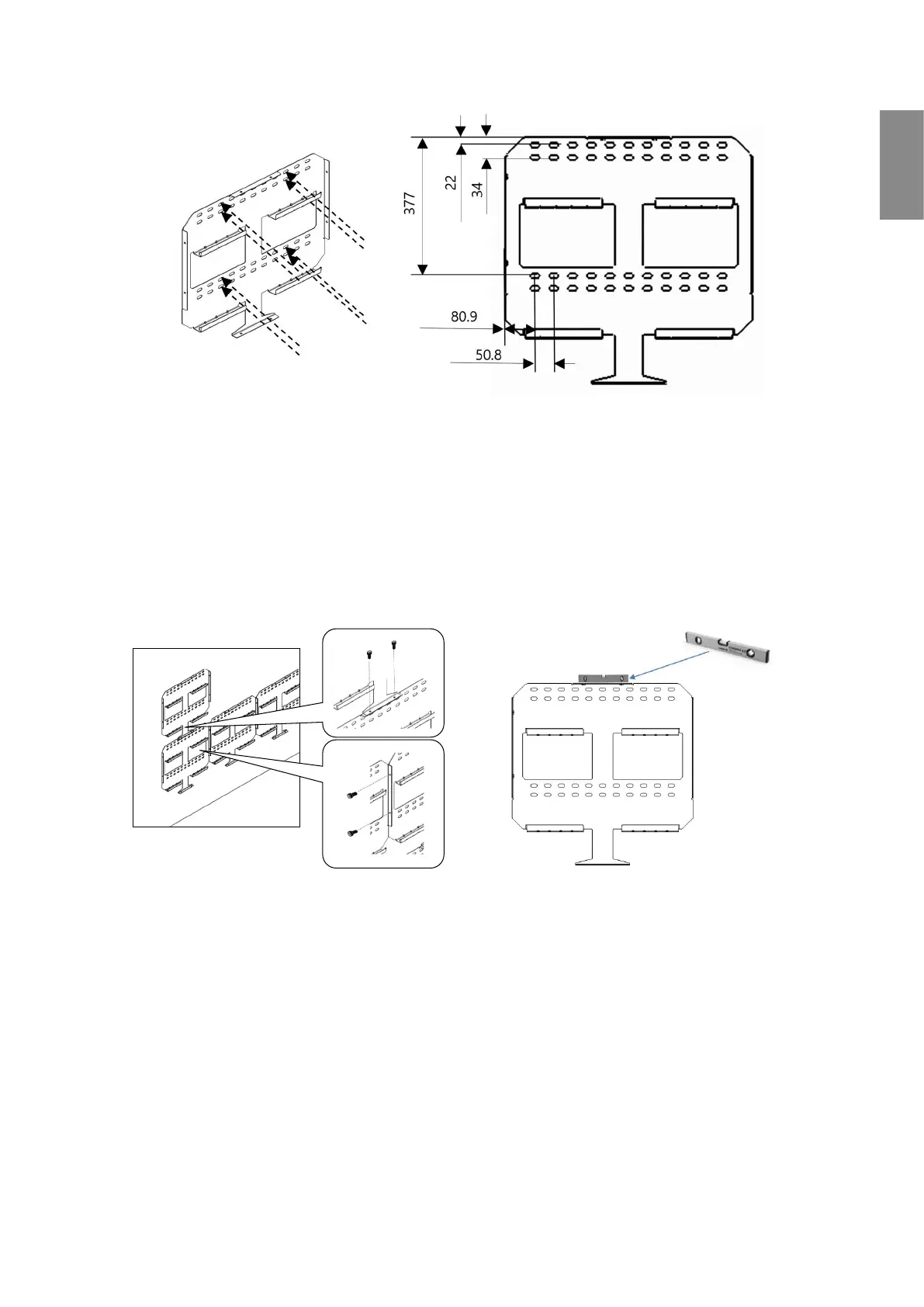

Depending on the condition of
the wall, bolt at least 8 points
Information of hole position (mm)
5. Connect the Brackets with each other using bolts, from left to right and
from top to bottom direction. After connecting the Mounting Brackets,
check the balance and fully fasten the bolts to the wall.
Wall
Fasten the Mounting Brackets with
M6 bolts.
After check the balance and fully
fasten the bolts to the wall
