19
2 - INSTALLATION AND START-UP
16. Power supply input.
17. Delayed protection fuses 48 V AC.
18. Delayed protection fuses 48 V AC main machine power line.
19. Machine stop cable connection clamps
yellow/green wire: common
- brown wire: contact normally closed
- grey wire: contact normally open
N.B. The spare fuses are located inside the relative fuse carriers (17-18)
Always replace fuses with new fuses having the same value.
Check to see that the transformer inlet connection complies with the
power supply voltage.

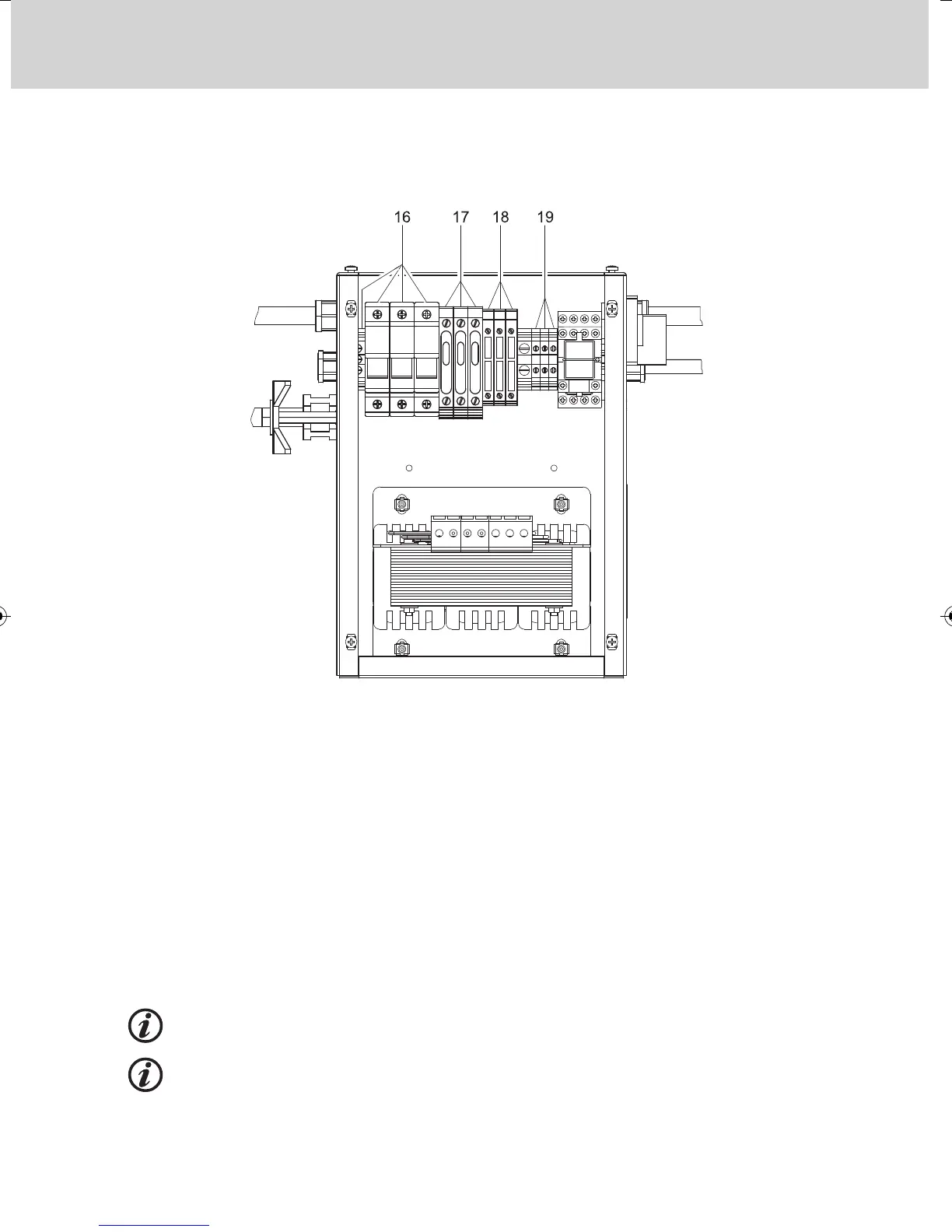

Internal view
