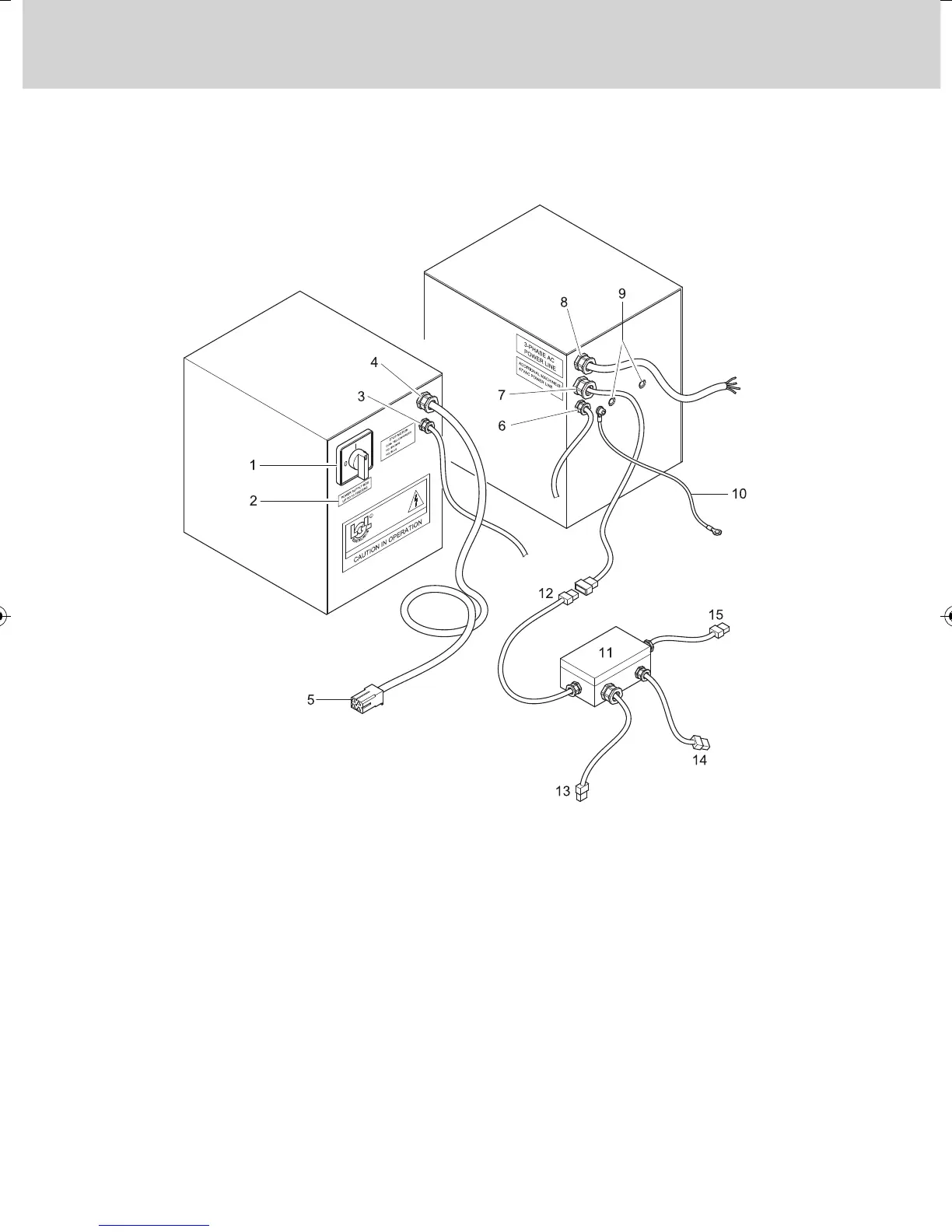

1. Main ON-OFF switch.
2. Label that specifies the maximum number of feeders supported.
3. Machine STOP function, spool end or broken yarn cable (1).
4. Machine flat power supply strip connection cable (1).
5. Flat power supply strip connector.
6. AUX (additional input/output)
7. Additional machine connection cable, through cable branch boxes.
8. Mains power supply cable. Machine-fed power supply.
9. Fix-on holes.
10. Earthing cables. They must strictly be connected up to the machine.
11. Cable branch boxes for additional machines.
12. Previous machine power supply box or cable branch box connection cable.
13. Power supply cable for working machine’s strip cable.
14. Machine STOP function, spool end or broken yarn cable.
15. Next in-line machine (where present) connection cable.
2.2 POWER SUPPLY BOX
(Available for machines that are not originally equipped with yarn feeders)
External view
18
2 - INSTALLATION AND START-UP
