On the first and on the last feeders that are fitted on the machine, DS4
shall be set to ON (Bus termination).

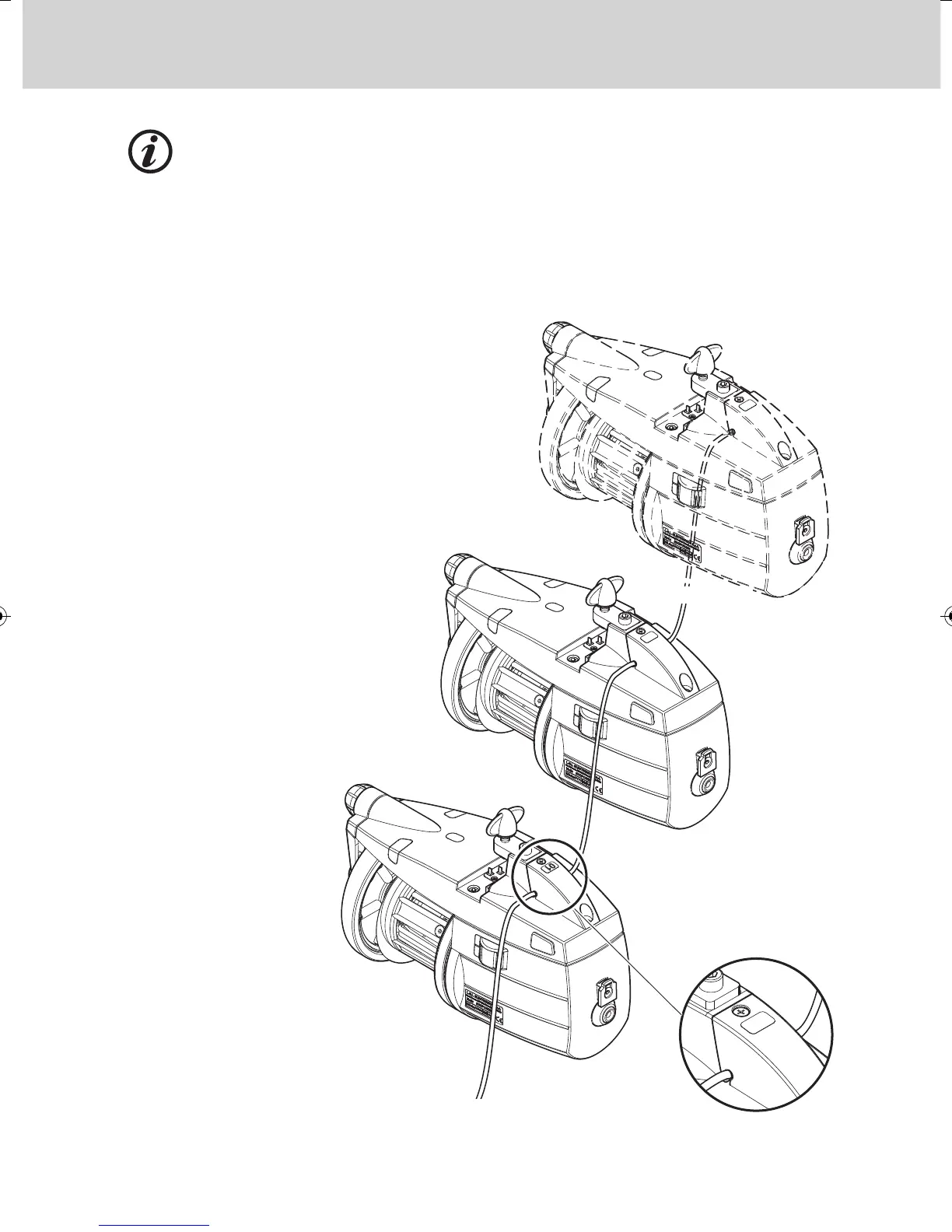

Practical example: A yarn consumption kit has been installed onto the
machine and a further number of feeders must now be added on. Proceed
as follows:
A On the kit’s last feeder, change the
DS4 setting from ON to OFF;
B Connect up the new set of feeders
in-line subsequent to the kit’s last
feeder, making sure that the number of
the T connectors is progressive and
follows the number of the kit already
installed.
N.B. : for these cases it is im-
portant that LGL is in-
formed accordingly, so
that the T connectors are
appropriately supplied
with a correct progres-
sive numbering.
C The feeder that
becomes the last in the
new kit shall have DS4
set to ON (Bus
Termination).
