5. Install the shaft seal ring, bearing inner race, bush,
dust cover and assembled shaft housing in turn.
6. Install the thrust washer, stop washer, screw the
jam nut to the bottom, regulate the bearing
clearance to 0.1-0.6mm with a dial gauge, and
tighten the jam nut.
7. Replace the O-ring, install the end cover, and
tighten the housing cover bolts alternatively by
multiple times.
8. Add GL-5 85W/90 heavy duty gear oil of 2.4L,
and screw up the plug.

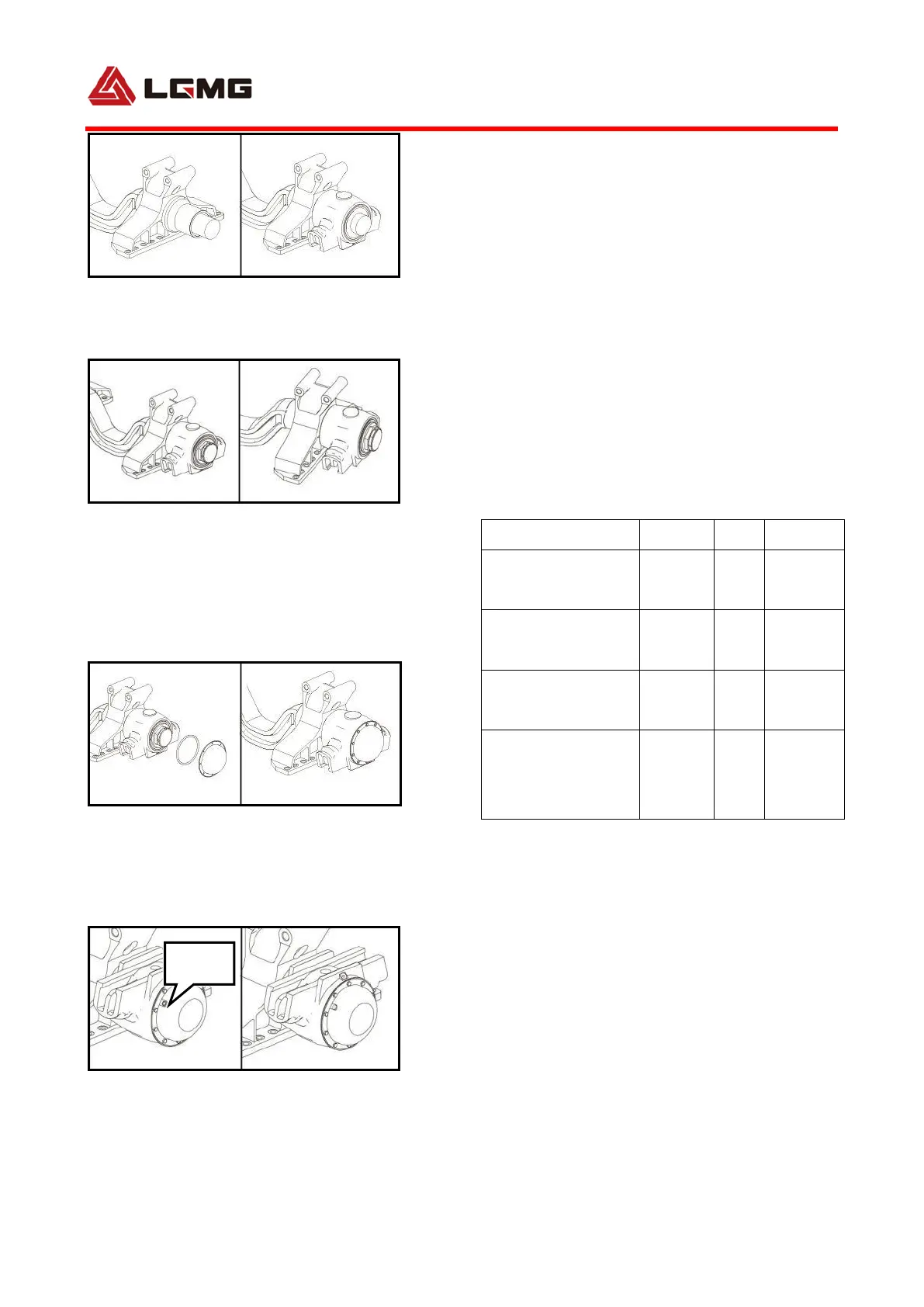

a. Removal, installation and adjustment of
balance suspension assembly
Specific procedures are shown left.
△
! CAUTION: When press machine is not
available, after bearing outer ring and
shaft seal ring are aligned, use a
copper rod to strike them into place
with a tooling plate underneath.
c. Main service parameters
Tightening torque of end
cover M8 bolt
Tightening torque of
M16×1.5 lock bolt
Adding amount of
lubricating oil
Display on
oiling
machine
d. Precautions for changing lubricating oil:
● According to the procedures described
above, remove axle housing;
● Check the usage of the oil seal. If non-uniform
wear, inner skeleton spring failure or weakening,
bending or deformation, scuffing or side cutting,
cracking or
