Liebert 7200 Series - Front View

7200 Series UPS User Manual Chapter 3 - Installation Procedure
Single Module and 1+1 Parallel System Introduction
document in response to "powersure ups"
Page 3-3
Issue 6
(03/98)
%
MENU
ESC
LOAD:
[%]
A B C
034 034 034
710
14
0
0
250 800
SIDE VIEW
FRONT VIEW
FRONT
REAR VIEW
BASE
TOP VIEW
200
85
100
200
125
1
2
5
92,5
4
0
55
3
4
1
2
5
3
Castors for manoeuvring
Adjustable fixing feet
1 - Entry panel for all power cables
2 - Entry panel for all control cables
3 - Air inlet ventilation grills
4 - Minimum clearance from wall 250mm
5 - Cabinet extractor fans - additional fans are
fitted when the input harmonic filter is included
Weights
30kVA = 480Kg
40kVA = 540Kg
60kVA = 620Kg
750
1
17
0

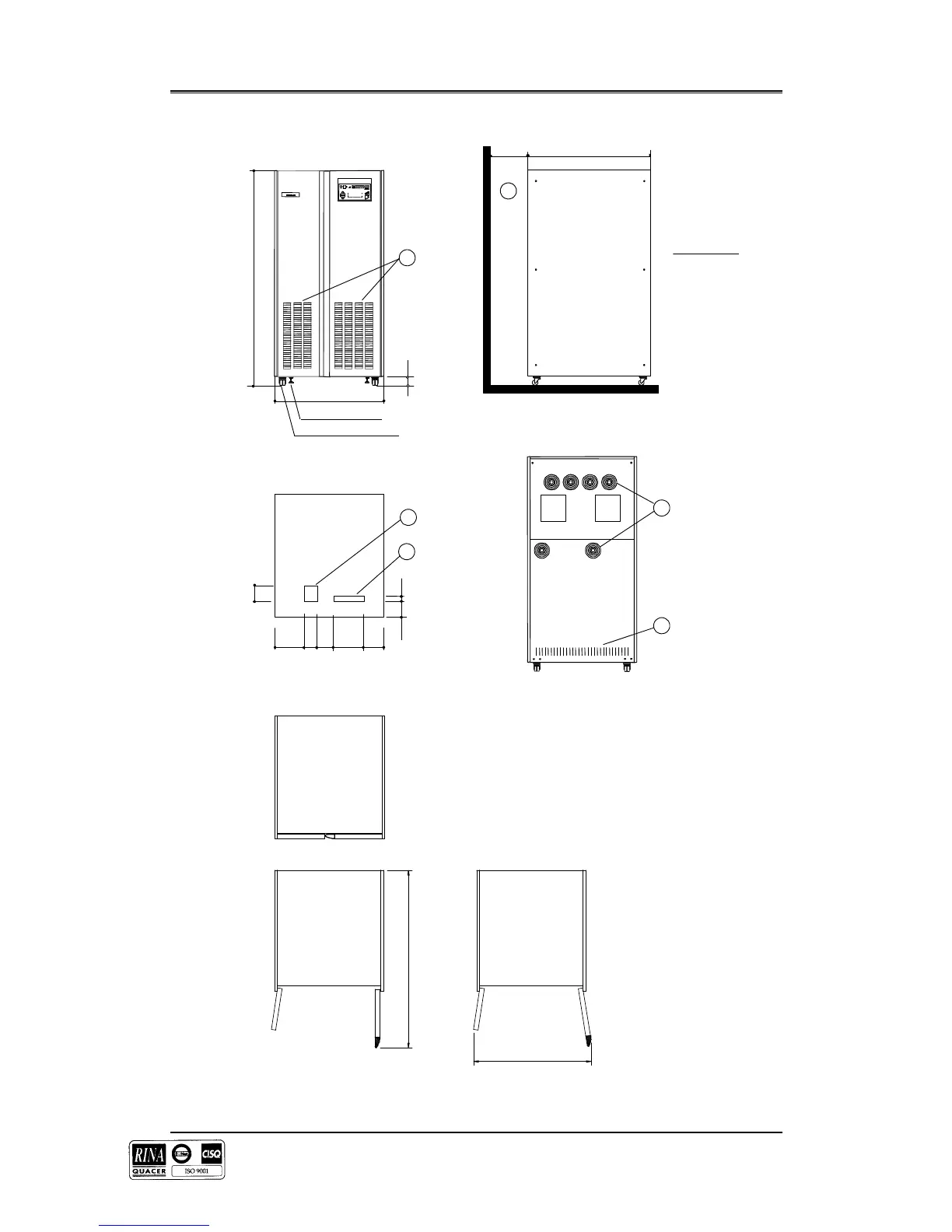

Figure 3-A . Installation Diagram
