7200 Series UPS User Manual Chapter 4 - Optional equipment
Single Module and 1+1 Parallel System Communications Kits (4645102U)
document in response to "powersure ups"
Page 4-21
Issue 6
(03/98)
4.8 Communications Kits (4645102 U)
The Communications kits offer the necessary cable assembly and fixings for connection into the
communications socket ( X8 ) on the operator logic board ( part no. 4550005F ) to a DB25 male
connector ( X4 ), located adjacent to the cable access panel as shown in figure 4-1.
Using the wiring configurations shown in figure 4-17 the UPS can be connected to either a personal
computer or a modem.
See manual included in the kit.
Caution
Note: The communications wiring for this option must be kept separate from the power wiring. This is to maintain the
integrity of `Safety Extra Low Voltage' ( S.E.L.V. ) circuits
W9
X5
X4
X8
X4
4645102 U
4550005F

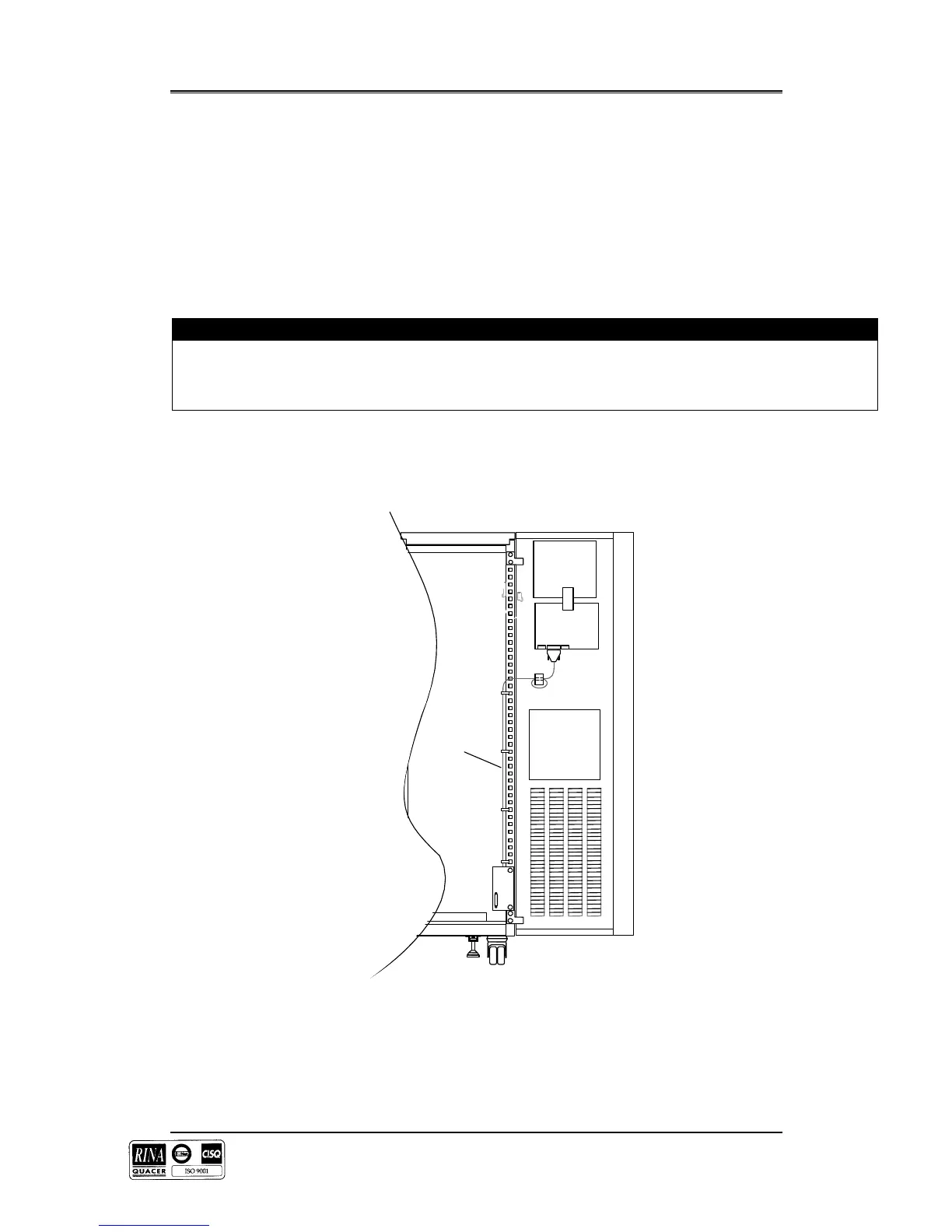

Figure 4-P . Installing the RS232 communication cable
