Chapter 2 Mechanical Installation 7
New Liebert_DM Series Air Conditioner User Manual
2.3.3 Mechanical Parameters
Indoor unit
The mechanical parameters of the indoor unit are shown in Figure 2-3 and Table 2-2.
510 385
1750
510
510
600
500
1850
600
600
DME07kW DME12kW

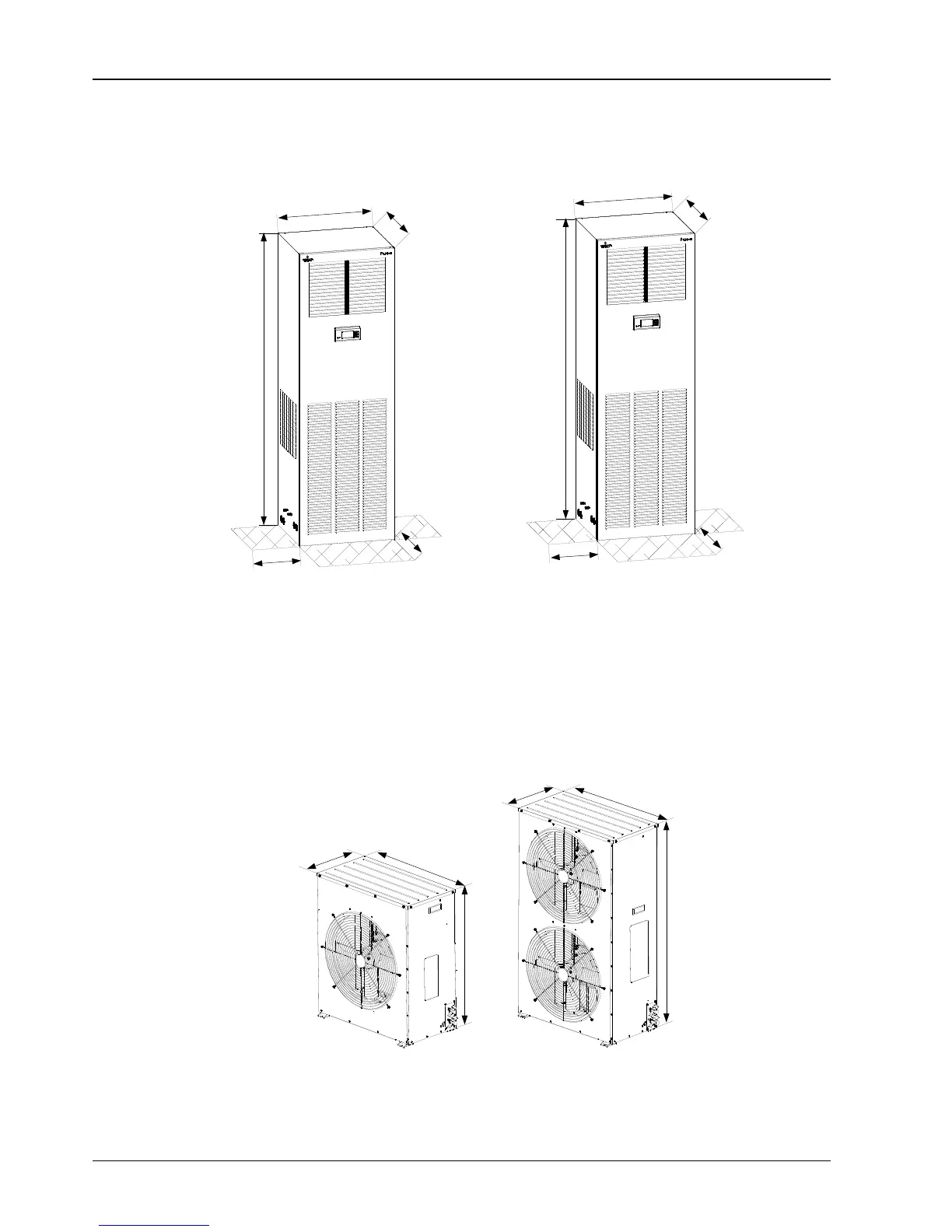

Figure 2-3 Dimensions of indoor unit (unit: mm)
The shadows in Figure 2-3 indicate a reasonable installation and service space. The two sides of the unit need air
inlet. Enough service space must be reserved for the unit to facilitate maintenance.
The AC unit equipped with a heater should be kept a distance of minimum 150mm from combustible substance.
When testing the AC unit, keep the external static pressure below 150Pa lest the air volume becomes too low and the
heater becomes too hot.
Outdoor unit
The mechanical parameters of the outdoor unit are shown in Figure 2-4, Figure 2-5 and Table 2-2.
352
787
829
1240
352
787
Figure 2-4 Dimensions of standard outdoor unit (unit: mm)
