Appendix 3 RDU-Cooling Air-Conditioner Single-Unit Manager Software Introduction 47
New Liebert_DM Series Air Conditioner User Manual
Appendix 3 RDU-Cooling Air-Conditioner Single-Unit Manager
Software Introduction
The RDU-Cooling manager is a monitoring system developed by Emerson Network Power Co., Ltd. (Emerson for
short) to perform monitoring and management over the Liebert_DM air conditioner (Liebert_DM AC for short)
designed by Emerson.
You can use the WEB browser to log in the RDU-Cooling manager to perform monitoring and management over the
Liebert_DM AC.

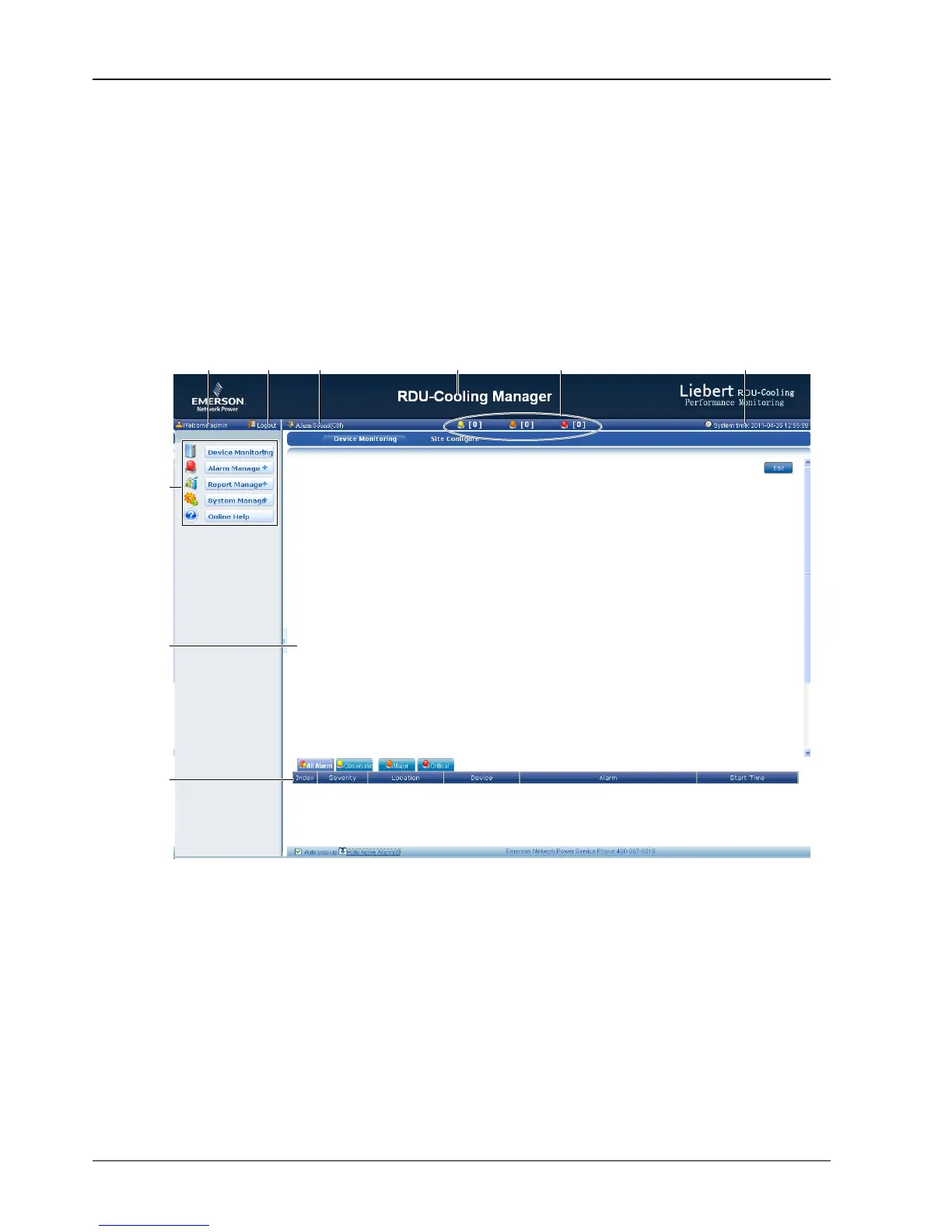

After you have logged in the RDU-Cooling manager, the screen displays the primary interface, as shown in Figure 2.
1. Username 2. Logout button 3. Alarm Sound (ON/OFF) 4. System title 5. Number of current alarms
6. System time 7. Menu area 8. Display & operation area 9. Alarm display area
Figure 2 Primary interface of the RDU-Cooling manager
The primary interface of the RDU-Cooling manager consists of three functional areas: menu area, display & operation
area and alarm display area.
The menu area displays five menus and all submenus, which can be selected by clicking.
The display & operation area displays the operation interface of the selected menu, you can query or configure
the information of this menu or perform relevant equipment control operations.
The alarm display area displays all current alarms, click Hide Active Alarm [alarm number], all current alarms
will be hidden, and meanwhile, Hide Active Alarm [alarm number] will become Show Active Alarm [alarm
number]. If Auto pop-up is ticked, when a new alarm generates, the alarm information will pop up
automatically.
Click the Logout button to log out the current user and return to the login page.
