5. Device Concept UCX series – User's Manual 34
Last detect
Always the last attached input is selected to transmit. The crosspoint changes, when the signal becomes
inactive on the chosen input, or when the active video signal appears on a port with the same or higher
priority.
TIPS AND TRICKS: To prevail the last detect mode, default priority settings (I1 priority:50; I2 priority:50; I3
priority:50; I4 priority:50; I5 priority:100 ) are appropriate.

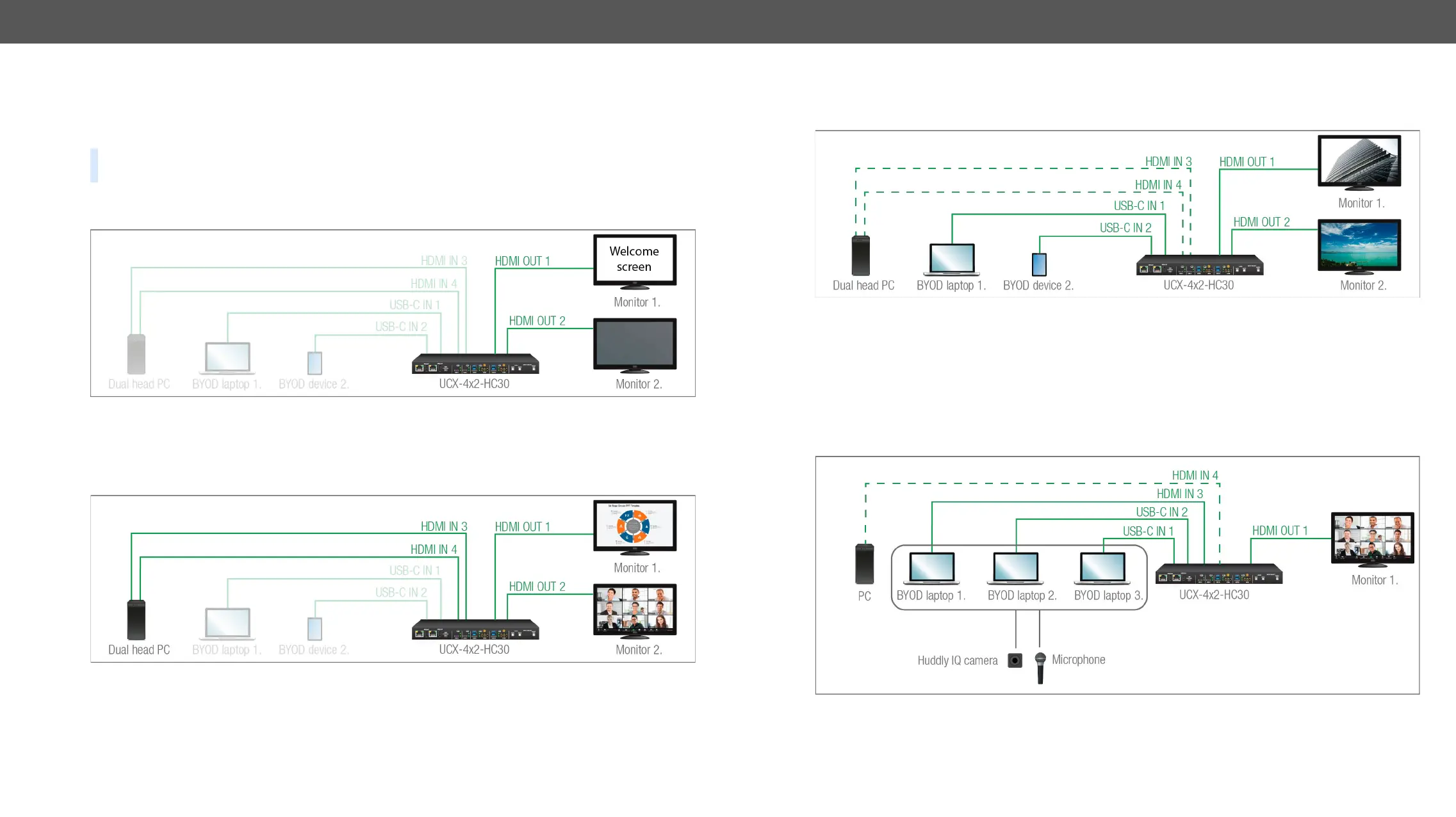

Automatic Input Selection- Example 1.
The video signal of the dual-head PC (I3, I4) can be seen on Monitor 1. and Monitor 2. (O1 and O2) when it is
powered on and no BYOD device is connected.
BYOD laptop 1. (I1) is displayed on Monitor 1. (O1) and BYOD device 2. (I2) can be seen on Monitor 2. when
they are connected and send active video signal.The individual input settings are the following:
O1: I1 priority:1; I2 priority: disabled; I3 priority:2; I4 priority: disabled; I5 priority:3
O2: I1 priority: disabled; I2 priority: 1; I3 priority: disabled; I4 priority: 2; I5 priority: disabled
Automatic Input Selection - Example 2.
detect) and the connection order of the BYOD laptops. The USB autoselect mode should be Follow video, the
USB peripherials (webcam, microphone etc.) are connected to the chosen laptop. The USB Type-C provides
Ethernet to the BYOD device, so the conferencing software can run there.
