LIMBACH L 2000 Series User Manual

5.3.3.5 EGT, coolant tem per a ture and coolant level
warn ing lamp
(250.215.020.000)
Pin Destination
1 +12 V
2 +12 V (Light)
3 GND, water temp. sensor -
4 Sensor, water-temperature +
5 Sensor, EGT -
6 Sensor, EGT +
7 GND,
8 LED -
9 LED +
Flugmotoren
5
Prepared by: J. B. Meyer Replaces edition from: 10.03.86 Page: 5-8
Checked by: Edition: 01.03.1999 Reg. Number:
Installation Manual
L 1700, L2000 and L 2400 Series

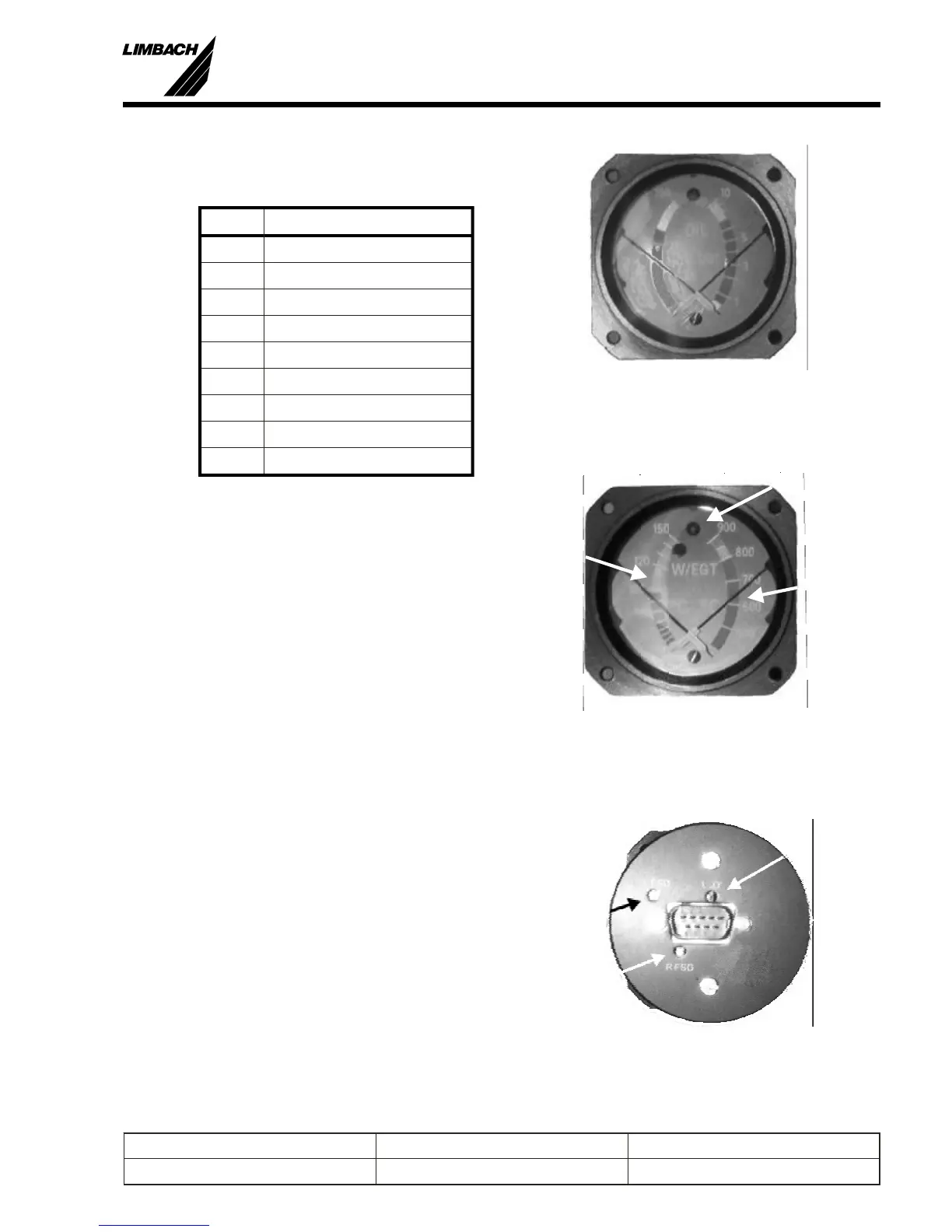

Fig.: 5-10 Oil Pressure and Temperature
Indicator
W
E
L
Fig.:5-11 EGT, Coolant Temp. and Coolant
Level Indicator
LFSD
RFSD
LO
Fig.:5-12 Rear View Dual Indicator
Instruments
