Page 22 of 192

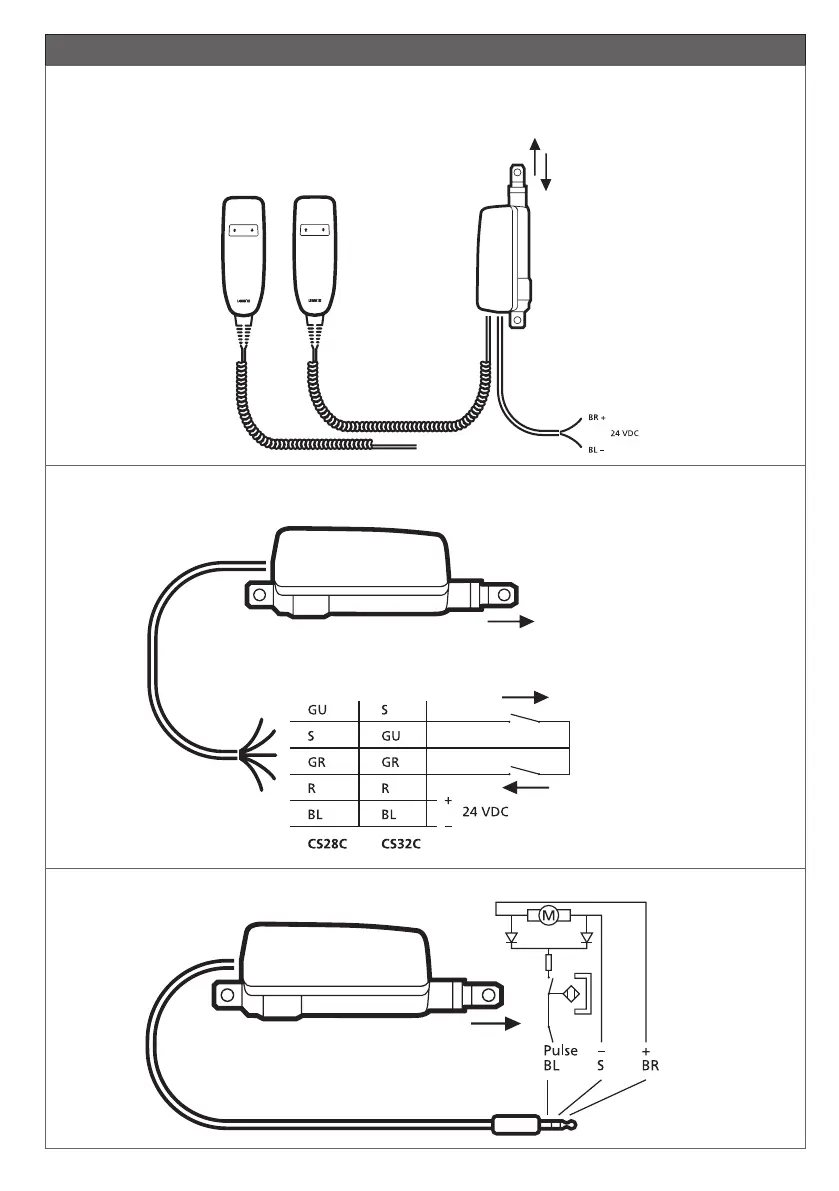

7A-B) LA28/28S/32 with CS28/28S/32 - PC-board version A and B
Version B
LINAK hand control HB is connected
with a DIN plug
Version A
LINAK hand control HB is connected
with a telephone plug
Drawings
7C) LA28/28S/32 with CS28/28S/32 - PC-board version C
Version C
8) LA28, LA28S, LA32 with reed-switch and LA34 with pulse system
Figure 6
