Linak TwinDrive TD3.2

Tolerance of the parallels:
2) To maintain the correct angle of rotation
of the headrest and the foot rest it is im-
portant that the twist bracket is welded
according to the below instructions.
Non-compliance with the instructions
could lead to a smaller angle of rotation
or in a worst case damage to TD3.
o
tati
on
t
is im
-
w
elded
n
s.
ons
o
tation
.

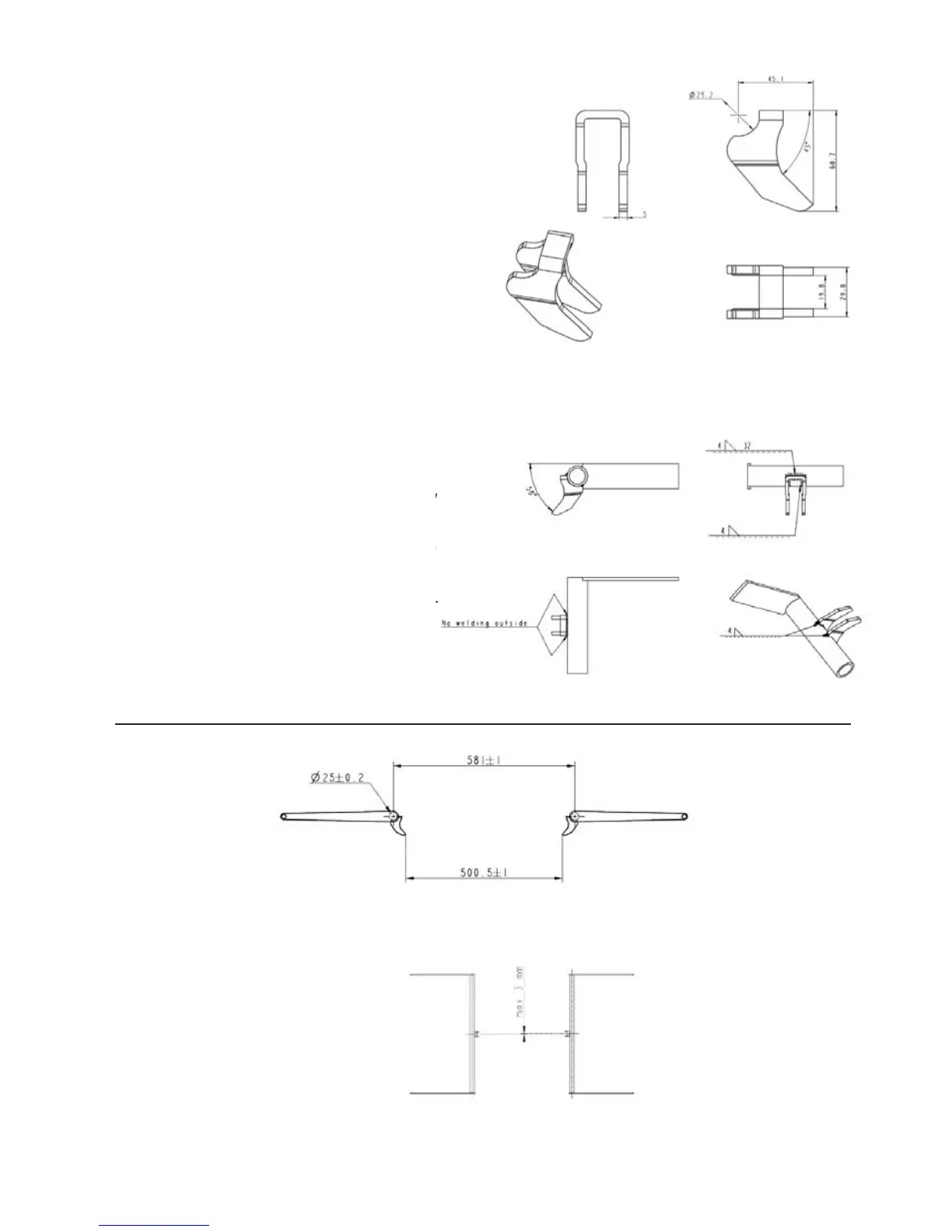

Welding the twist bracket on the frame
1) For the TD3 it is important that it is not welded
on the outside of the twist bracket because
there is not room for a welding seam in the
motor housing. Instead weld the bracket on
the whole length of its ends.
