Lindab FDS-M - Connect smoke detector to slave unit

11
2018-08-01
1

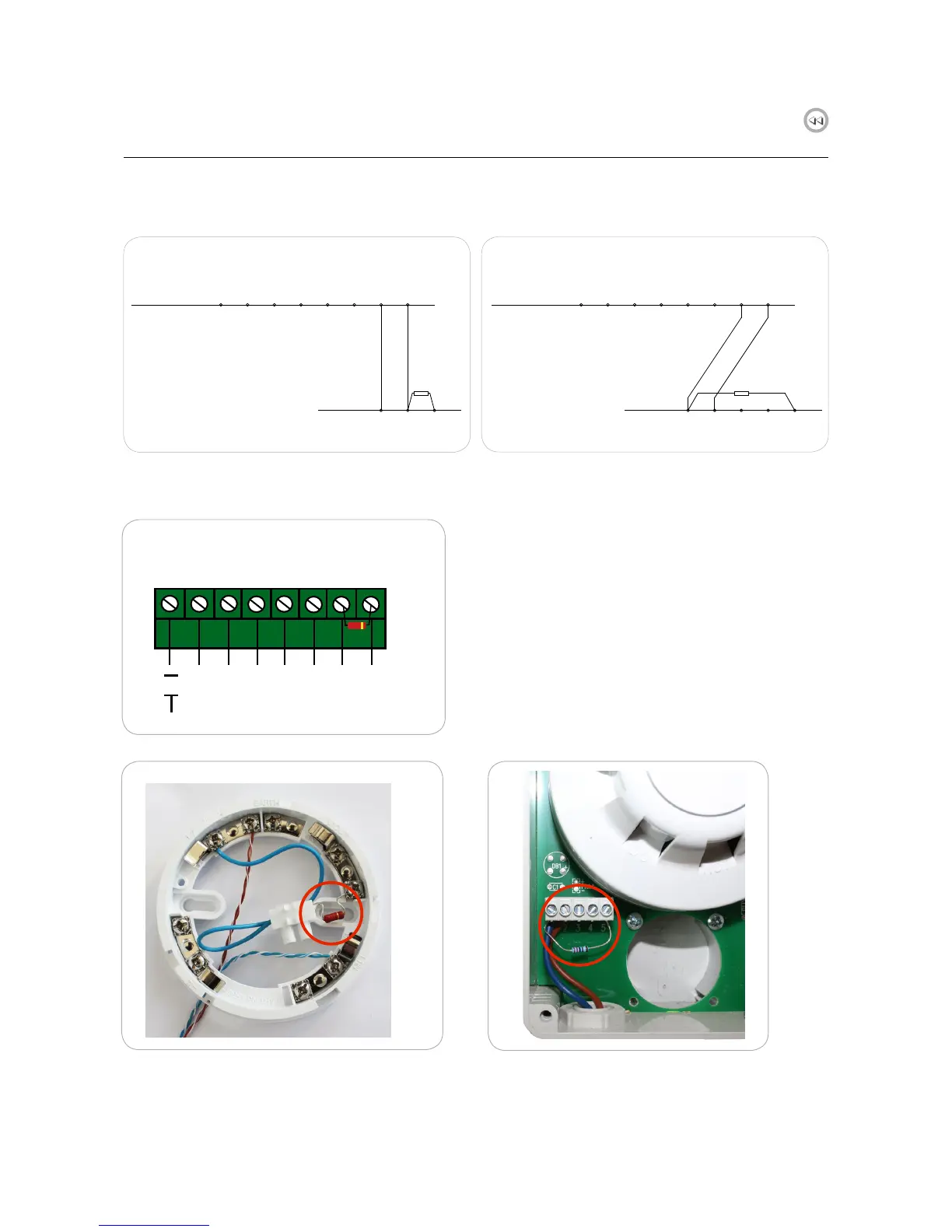

The FDS-S have one 2.2 kΩ resistors.
Remove the resistor if you add a smoke detec-
tor and move the resistor to smoke detector, see
image 2 and 3.
4.3 Connect smoke detector to slave unit
One smoke detector per slave unit is allowed.
