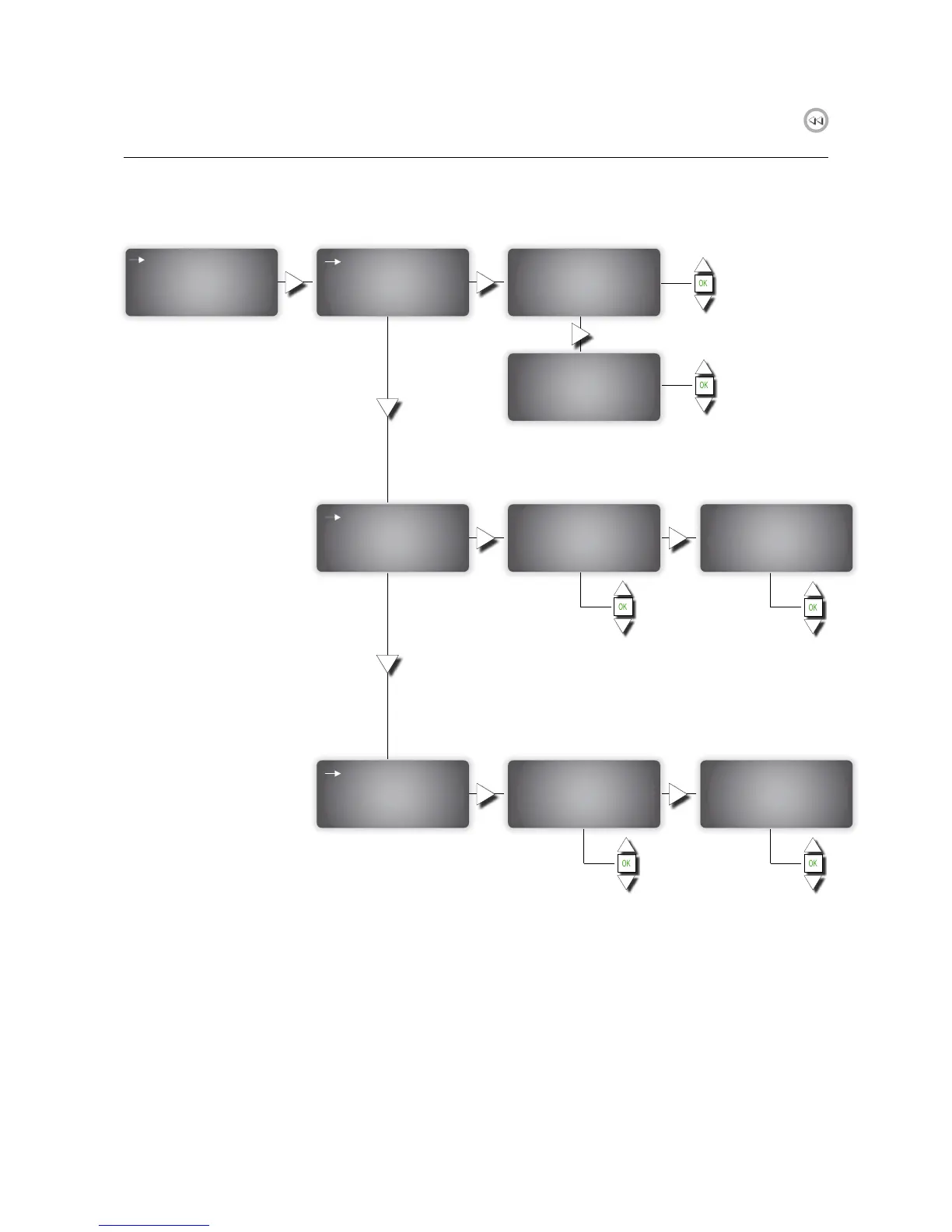

6.5.9 Miscellaneous
Miscellaneous
I/O
OK
DO5 Status: NO/NC
DO6 Status: NO/NC
DO7 Status: NO/NC
EXT1 Status: NO/NC
EXT2 Status: NO/NC
OK
Damper Durat. times
Max durat. time:
Opening: 180 sec
Closing: 60 sec
Save current times
as orig. times?
Confirm: NO
Detector values
OK
OK
Detector Limits
High: 9.5 V
Smoke: 6.0 V
Dirty: 4.0 V
OK
Synch. parameters
Synchronize: NO
Confirm : NO
OK
NOTE
DO5 is for the interaction with AHU.
If using FDS-B (NC contact), set DO5 status on NC.
If other relay (NO contact) is used, set DO5 status on NO.
DO6-DO7 contact set depending on logic of the system.
